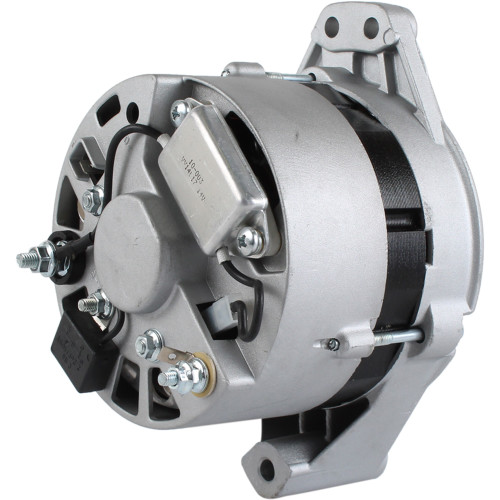

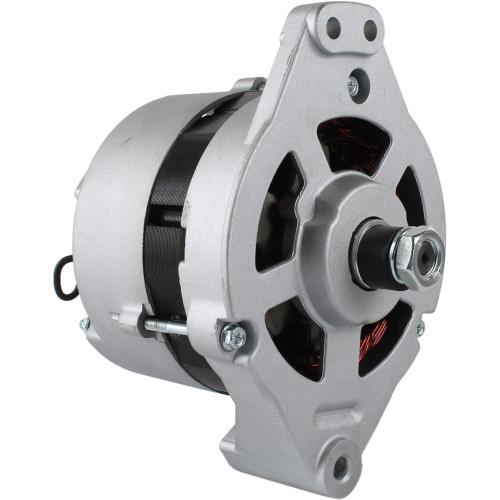

NEW Alternator for JOHN DEERE CD3029DF, CD4039DF, CD4045TF, CD6059TF & CD6068TF Power Units, OTH Applications; 400-42004, [MAGNETON443-113-516-760, 9516760, 9-516-760]
$189.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 55 |
| REGULATOR CLOCK | 1:30 |
| MOUNT HOLE ID 1 | 8mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.650″ |
| MOUNTING EAR THICKNESS | 16.500mm |
| MOUNTING EAR 2 THICKNESS | 0.650″ |
| MOUNTING EAR 2 THICKNESS | 16.500mm |
| MOUNTING EAR 3 THICKNESS | 2.193″ |
| MOUNTING EAR 3 THICKNESS | 55.700mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | R |
| TERMINAL 4 SIZE | M5x0.7 Spade |
| TERMINAL ID 5 | B- |
| TERMINAL 5 SIZE | M5x0.7 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.669″ |
| SHAFT PULLEY OD | 17mm |
| SHAFT | M14x1.50 |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AMA0007 |
| J&N ELECTRICAL PRODUCTS | 400-42004 |
| MAGNETON | 443-113-516-760, 9516760, 9-516-760 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Atlas Copco | XAS90 | 4039 Diesel | |
| Ingersoll Rand | 185 | ||
| John Deere | 2.9L | Engine Code 3106 12 1 | |
| John Deere | 2.9L | Engine Code 3117 21 2 | |
| John Deere | 240 Series II | JD 3029D 53HP Engine | |
| John Deere | 240 | JD 3029D 46HP Engine | 1999, 2000, 2001, 2002, 2003, 2004 |
| John Deere | 250 Series II | JD 3029T 64.4HP Engine | |
| John Deere | 250 | JD 3029T 61HP Engine | 1999, 2000, 2001, 2002, 2003, 2004 |
| John Deere | 260 Series II | JD 3029T 72.4HP Engine | |
| John Deere | 260 | JD 3029T 69HP Engine | 1999, 2000, 2001, 2002, 2003, 2004 |
| John Deere | 4400 Telescopic | All | |
| John Deere | 4500 Telescopic | All | |
| John Deere | 8875 | JD 61HP Turbo Ds | 1994, 1995, 1996, 1997, 1998 |
| John Deere | CD3029DF | 310 | |
| John Deere | CD3029DF | 311 | |
| John Deere | CD3029DF | Genset – Code 310 | |
| John Deere | CD3029DF | Genset – Code 311 | |
| John Deere | CD4039DF / TF | Genset – Code 310 | |
| John Deere | CD4039DF | 310 | |
| John Deere | CD4039TF | 310 | |
| John Deere | CD4045TF | 310 | |
| John Deere | CD4045TF | Genset – Code 310 | |
| John Deere | CD6059TF | Genset – Code 310 | |
| John Deere | CD6068TF | Genset – Code 310 |
