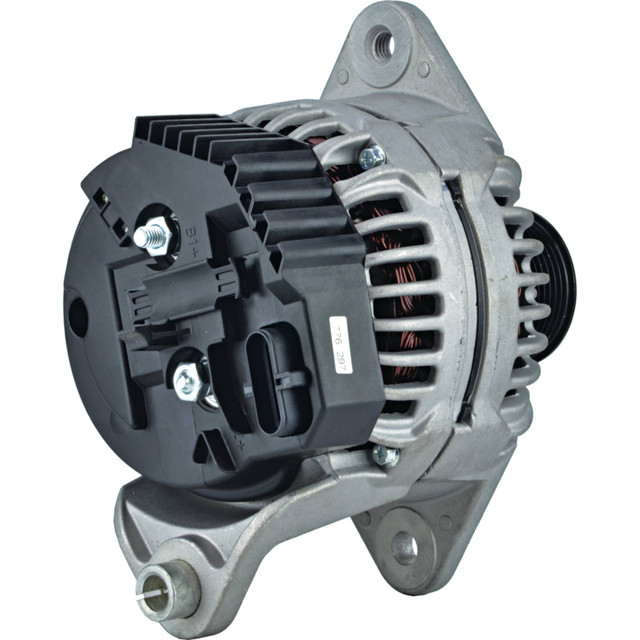

NEW Alternator for KHD Various Models Medium & Heavy-Duty Truck; 400-24264, 0124655131, 0124655156, 01183602, 118-3602
$299.99
Specifications
| UNIT/PART TYPE |
Alternator |
| VOLT |
24 |
| AMPS |
120 |
| REGULATOR CLOCK |
4:00 |
| J180 HINGE LENGTH |
197.87 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
1/2-13 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
13.400mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.551″ |
| MOUNTING EAR THICKNESS |
14mm |
| MOUNTING EAR 2 THICKNESS |
0.543″ |
| MOUNTING EAR 2 THICKNESS |
13.800mm |
| MOUNTING EAR 3 THICKNESS |
1.063″ |
| MOUNTING EAR 3 THICKNESS |
27mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
B2+ |
| TERMINAL 3 SIZE |
M8x1.25 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
8 |
| GROOVE OD |
2.394″ |
| GROOVE OD |
60.800mm |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.622″ |
| PULLEY OUTER DIAMETER |
66.600mm |
|

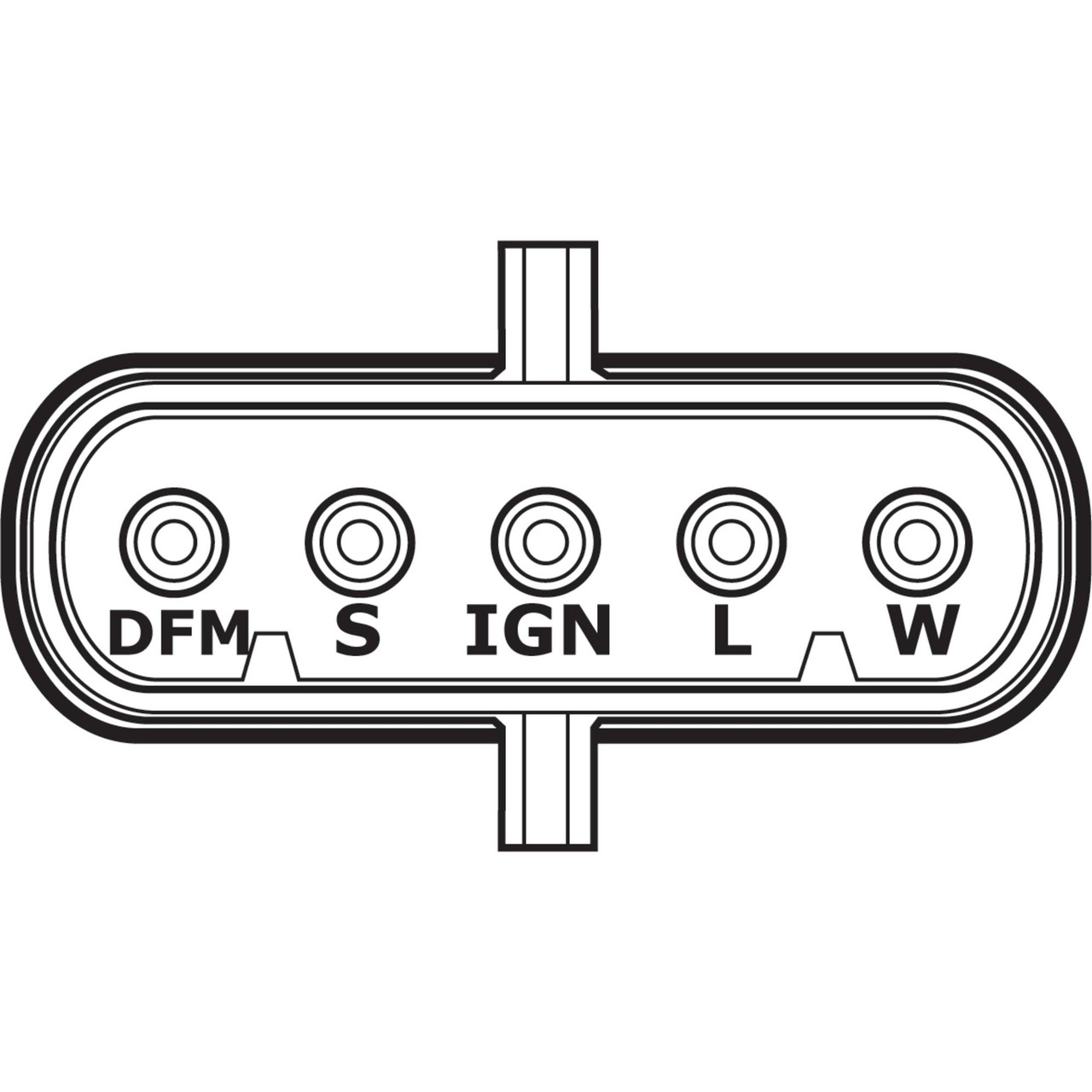

Five (5) Pin Regulator Plug (DFM, S, IG, L, W) |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-24264 |
| DELCO |
8600223, 8600261, 8600305, 8600306, 8600312, 8600313, 8600454 |
| BOSCH |
0124655131, 0124655156 |
| KHD |
01183602, 118-3602 |
