NEW Alternator for KIOTI CK25, DK45, DS3510, NX5510, RX6010C & OTH Tractors; 400-40038, E7230-64010, E7230-64011, E7230-64012, E7230-64013, E7230-64014, E7230-64015; LESTER 20565
$339.99
Used on: KIOTI Tractors w/ Daedong Diesel Engines
Specifications

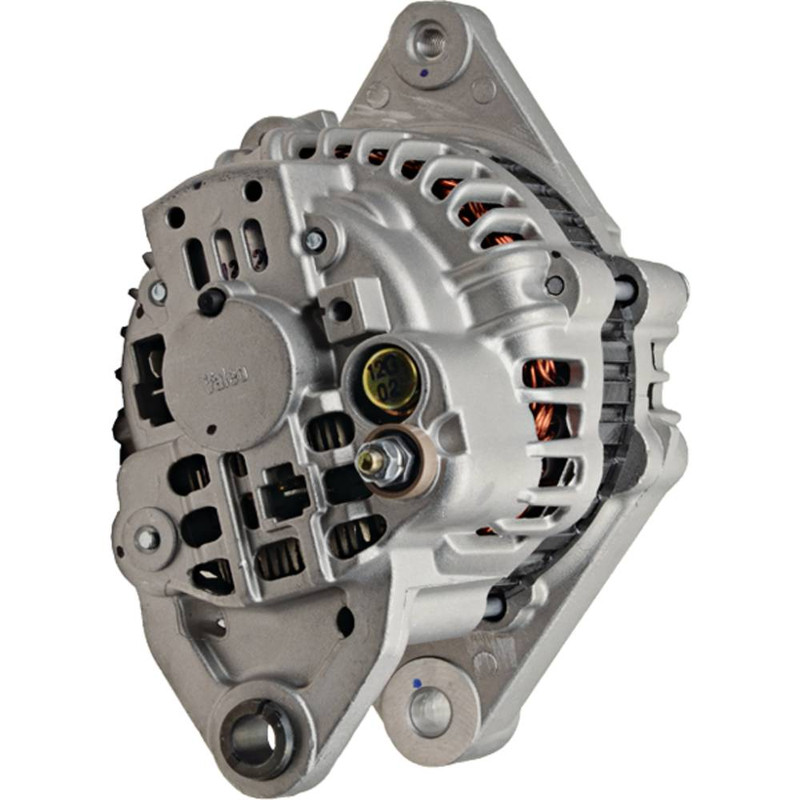

| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 50 |
| REGULATOR CLOCK | 9:00 |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |

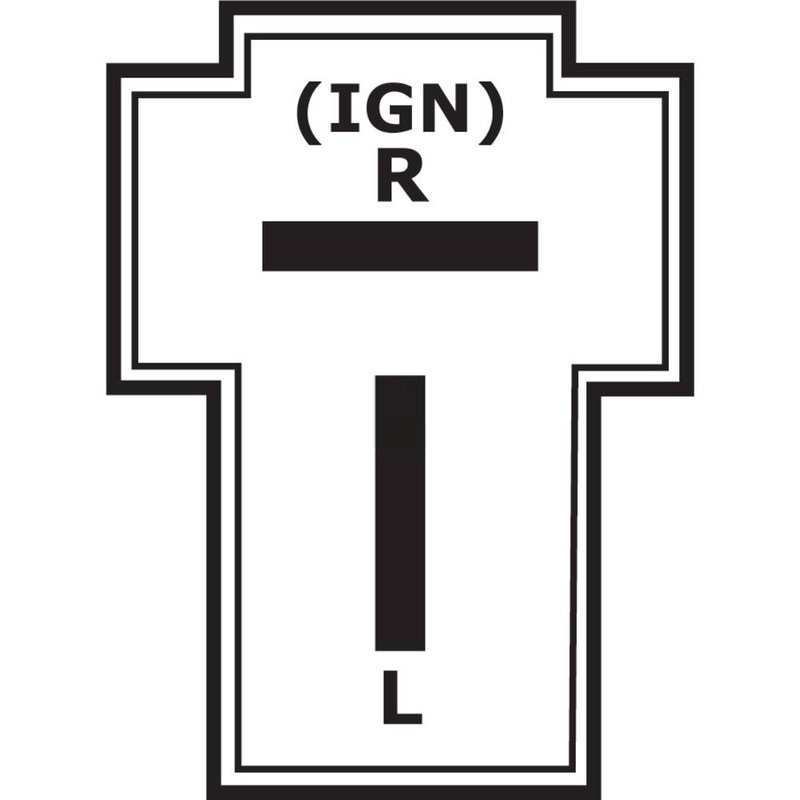

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| POLARITY | Negative |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-40038, AMT0265 |
| KIOTI | E7230-64010, E7230-64011, E7230-64012, E7230-64013, E7230-64014, E7230-64015 |
| LESTER | 20565 |
| VALEO | TA000A58101 |
Applications
Part fit
| MAKE | MODEL | Engine | YEAR |
| Kioti | CK25 | All | |
| Kioti | CK2510 | Daedong 3-85 24.5HP Ds | All |
| Kioti | CK2510H | Daedong 3-85 24.5HP Ds | All |
| Kioti | CK25H | Daedong 3-79 25HP Ds | All |
| Kioti | CK27 | All | |
| Kioti | CK27H | All | |
| Kioti | CK30 | All | |
| Kioti | CK30H | All | |
| Kioti | CK35 | All | |
| Kioti | DK35 | All | |
| Kioti | DK35HSE | Daedong 3-101 35HP Ds | All |
| Kioti | DK35SE | Daedong 3-111 38HP Ds | All |
| Kioti | DK35SEH | All | |
| Kioti | DK35SEHC | Daedong 3-111 38HP Ds | All |
| Kioti | DK40 | All | |
| Kioti | DK40CR | Daedong 4-122 41HP Ds | All |
| Kioti | DK40HSE | All | |
| Kioti | DK40SE | Daedong 4-122 41HP Ds | All |
| Kioti | DK40SEHC | Daedong 4-122 41HP Ds | All |
| Kioti | DK45 | All | |
| Kioti | DK45C | Daedong 4-134 45HP Ds | All |
| Kioti | DK45CSE | Daedong 4-134 45HP Ds | All |
| Kioti | DK45HSE | All | |
| Kioti | DK45S | All | |
| Kioti | DK45SC | Daedong 4-134 45HP Ds | All |
| Kioti | DK45SE | Daedong 4-134 45HP Ds | All |
| Kioti | DK45SEHC | Daedong 4-134 45HP Ds | All |
| Kioti | DK50SEH | All | |
| Kioti | DK50SEHC | Daedong 4-134 49HP Ds | All |
| Kioti | DK55 | Daedong 4-134 55HP Ds | All |
| Kioti | DK55C | Daedong 4-134 55HP Ds | All |
| Kioti | DK55CHSE | All | |
| Kioti | DK55HSE | All | |
| Kioti | DS3510 | Daedong 3-101 34HP Ds | All |
| Kioti | DS4110 | Daedong 4-122 41HP Ds | All |
| Kioti | DS4110HS | Daedong 4-122 41HP Ds | All |
| Kioti | DS4510 | All | |
| Kioti | DS4510HS | Daedong 4-134 45HP Ds | All |
| Kioti | LK30 | All | |
| Kioti | LK3054 | All | |
| Kioti | NX4510C | Daedong 3-111 45HP Ds | All |
| Kioti | NX4510CH | Daedong 3-111 45HP Ds | All |
| Kioti | NX5010C | Daedong 3-111 50HP Ds | All |
| Kioti | NX5010CH | Daedong 3-111 50HP Ds | All |
| Kioti | NX5510 | Daedong 3-111 55HP Ds | All |
| Kioti | NX5510C | Daedong 3-111 55HP Ds | All |
| Kioti | NX5510CH | Daedong 3-111 55HP Ds | All |
| Kioti | NX5510H | Daedong 3-111 55HP Ds | All |
| Kioti | NX6010CH | Daedong 3-111 60HP Ds | All |
| Kioti | NX6010H | Daedong 3-111 60HP Ds | All |
| Kioti | RX6010C | Daedong 4-149 59HP Ds | All |
| Kioti | RX6010PC | Daedong 4-149 59HP Ds | All |
