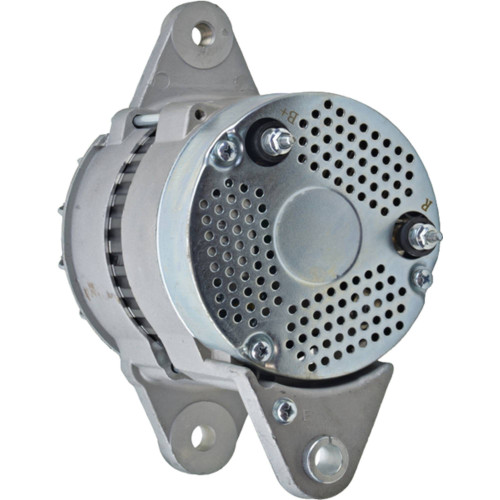

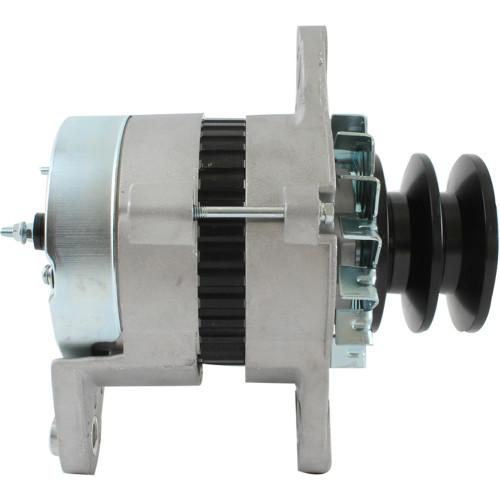

NEW Alternator for KOMATSU D60P, D65A, D65E, GD625A, PC130, PC400 & WA320 Applications; 400-50027, 600-825-3120, 600-825-3150, 600-825-3151, [NIKKO0-35000-0390, 0-35000-0391, 0-35000-0392]; LESTER 12259
$224.99
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | B+ at 11:00 & R at 3:00 |
| VOLT | 24 |
| AMPS | 35 |
| REGULATOR CLOCK | 9:00 |
| MOUNT HOLE ID 1 | M12x1.50 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 13mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 0.630″ |
| MOUNTING EAR 2 THICKNESS | 16mm |
| MOUNTING EAR 3 THICKNESS | 0.787″ |
| MOUNTING EAR 3 THICKNESS | 20mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M5x0.8 |
| TERMINAL ID 3 | R |
| TERMINAL 3 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 2 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.228″ |
| PULLEY OUTER DIAMETER | 82mm |
| ADD’L INFO | Brushless, Self Excited |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ANK0005 |
| J&N ELECTRICAL PRODUCTS | 400-50015, 400-50026, 400-50027 |
| KOMATSU | 600-825-3120, 600-825-3150, 600-825-3151 |
| LESTER | 12259 |
| NIKKO | 0-35000-0390, 0-35000-0391, 0-35000-0392 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1991 - 1997 | KOMATSU | D60P | 6D125 |
| 1991 - 1997 | KOMATSU | D65A | 6D125 |
| 1994 - 1997 | KOMATSU | D65E | 6D125 |
| 1995 - 1997 | KOMATSU | GD625A | 6D125 |
| 1995 - 1997 | KOMATSU | PC400 | 6D125 |
| 98-On | KOMATSU | PC130 | 6D110 |
| 98-On | KOMATSU | WA320 | 6D110 |
