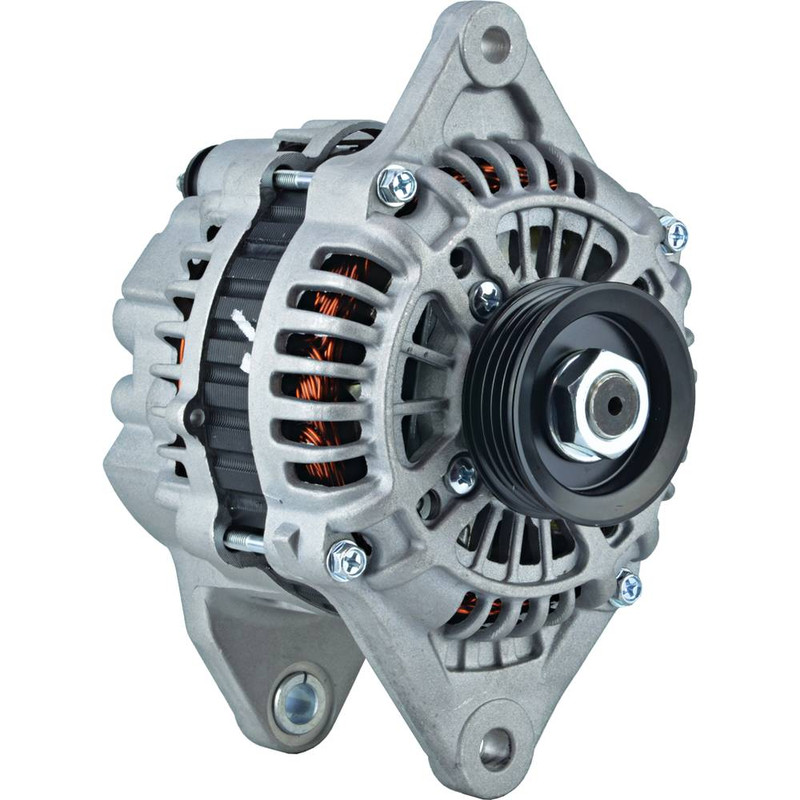

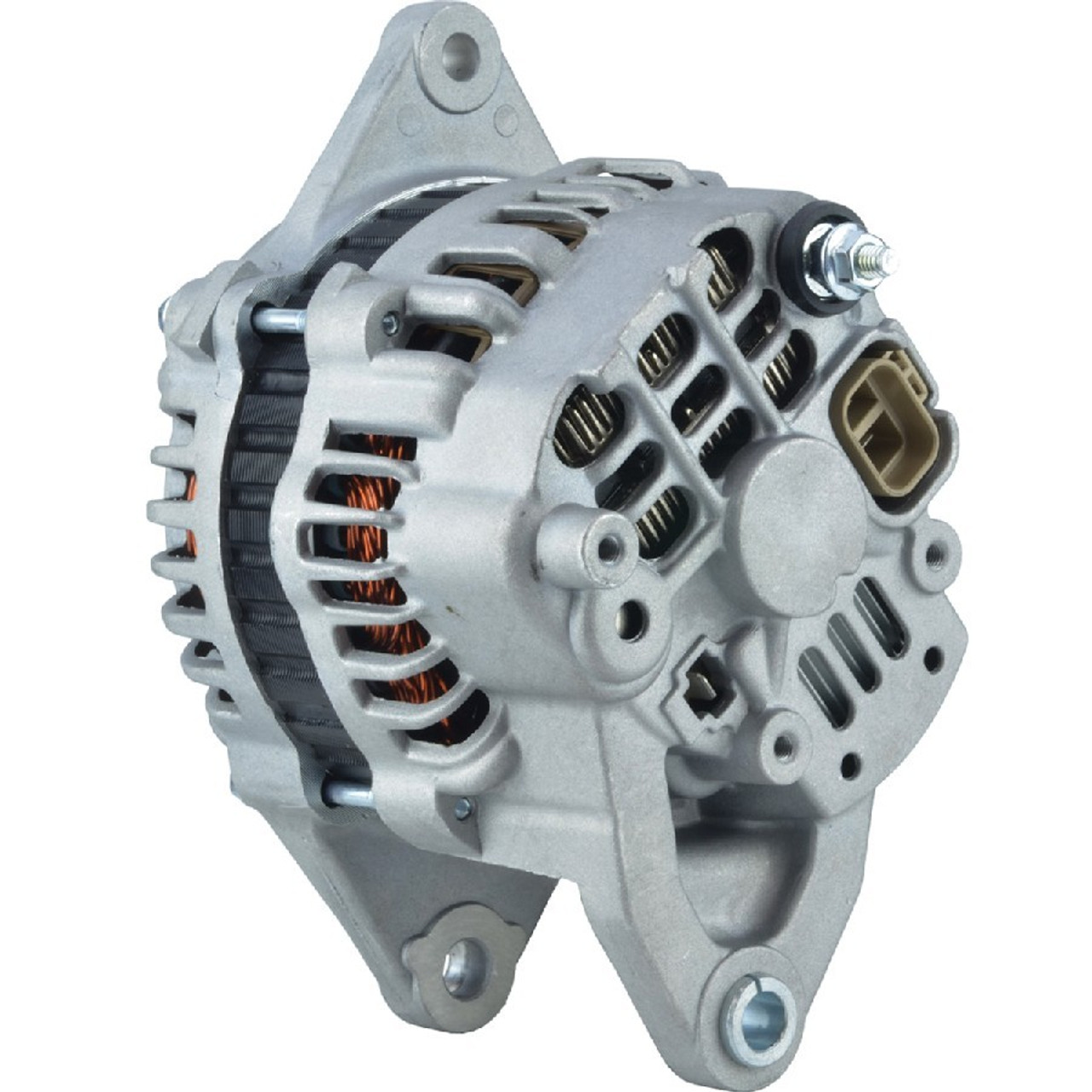

NEW Alternator for KUBOTA V3800 Engines – Industrial; 400-48188, 1E327-64011, 1E327-64012, A005TA8192, A5TA8192
$239.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
80 |
| REGULATOR CLOCK |
2:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
8.500mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.500mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.504″ |
| MOUNTING EAR THICKNESS |
12.800mm |
| MOUNTING EAR 2 THICKNESS |
0.512″ |
| MOUNTING EAR 2 THICKNESS |
13mm |
| MOUNTING EAR 3 THICKNESS |
0.630″ |
| MOUNTING EAR 3 THICKNESS |
16mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
IG |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
L |
| TERMINAL 4 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
4 |
| GROOVE OD |
2.165″ |
| GROOVE OD |
55mm |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.311″ |
| PULLEY OUTER DIAMETER |
58.700mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AMT0310 |
| KUBOTA |
1E327-64011, 1E327-64012 |
| LESTER |
11685 |
| MITSUBISHI |
A005TA8192, A5TA8192 |
