NEW Alternator for CUSHMAN & MERCURY MARINE Applications; 400-46029, 893876, 805447T, 805884, 805884P, 805884T, 8M6007491; LESTER 12176
May 4, 2024
NEW Alternator for Late Model VOLVO PENTA Applications; 400-46004, AC165622, 600090, 3860082, 3860798; LESTER 12391
May 4, 2024

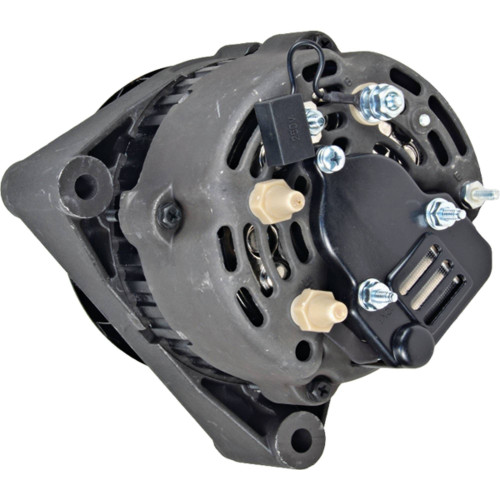

NEW Alternator for Late Model VOLVO PENTA Applications; 400-46023, AC165622, 600090, 3860082, 3860798; LESTER 12391, 12392
$214.99
SAE J1171 Certified
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 65 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 9.700mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 1.988″ |
| MOUNTING EAR THICKNESS | 50.500mm |
| MOUNTING EAR 2 THICKNESS | 1.988″ |
| MOUNTING EAR 2 THICKNESS | 50.500mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 1/4/2020 |
| TERMINAL ID 3 | EXC |
| TERMINAL 3 SIZE | 10-24 Stud |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | 10-24 Stud |
| TERMINAL ID 5 | E |
| TERMINAL 5 SIZE | 10-24 Stud |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.665″ |
| PULLEY OUTER DIAMETER | 67.700mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-46004, AMN0018 |
| EMP | 4-5979 |
| J&N | 400-46004, 400-46023 |
| LESTER | 12391, 12392 |
| LUCAS ELECTRIC | LRA03311 |
| MANDO | AC165622 |
| MERCURY MARINE | 3105M, 8M6007493 |
| SIERRA MARINE | 18-5979 |
| VALEO | 600090 |
| VOLVO | 3860082, 3860798 |
