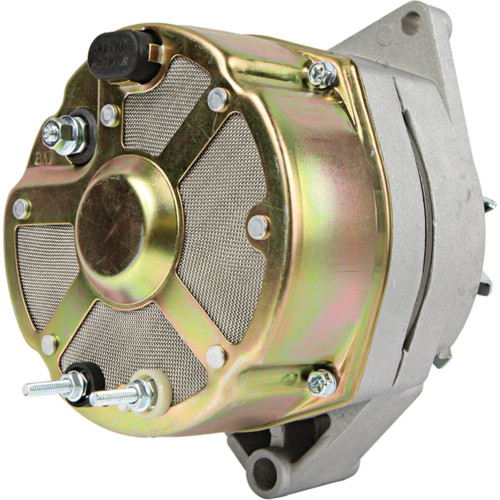

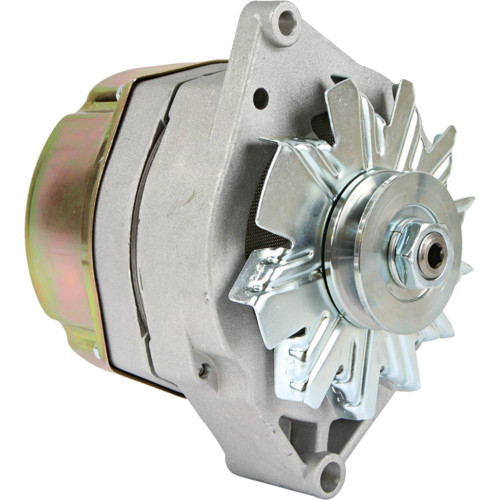

NEW Alternator for MARINE Applications; 400-40178, 2518039, A13N147, A13N147M, A13N149M, A13N1M, A13N2M, A13N35M, A13N57M; LESTER 8902

$184.99

QUALITY TYPE: High Output Standard

Email
Category:

Specifications

UNIT TYPE Alternator
CRITICAL NOTE Conversion Type Unit Based on Delco 10SI
FAMILY Delco 10SI
VOLT 12
AMPS 94
QUALITY TYPE High Output Standard
MOUNT HOLE ID 1 8.600mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.669″
MOUNTING EAR THICKNESS 17mm
MOUNTING EAR 2 THICKNESS 1.969″
MOUNTING EAR 2 THICKNESS 50mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 AC
TERMINAL 3 SIZE Stud
TERMINAL ID 4 IG
TERMINAL 4 SIZE Stud
POLARITY Negative
NUMBER OF GROOVES 1
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.382″
PULLEY OUTER DIAMETER 60.500mm
WARRANTY 1 Year
Black Insulator Terminal at 6:00 is AC Tap, White Insulated Terminal at 6:00 is Ignition

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD ADR0394, ADR0440
J&N ELECTRICAL PRODUCTS 400-40020, 400-40044, 400-40178
LESTER 8902
VALEO 2518039, A13N147, A13N147M, A13N149M, A13N1M, A13N2M, A13N35M, A13N57M

Applications

Part fit

MAKE MODEL ENGINE YEAR
MW B130 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
BMW B190 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
BMW B220 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
BMW Various Models B130 Engine 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
BMW Various Models B190 Engine 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
BMW Various Models B220 Engine 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Bukh 2G105 2.3L – 2251cc – Diesel
Bukh 3G105 3.4L – 3381cc – Diesel
Bukh 4K105 4.5L – 4500cc – Diesel
Bukh 6K105 6.8L – 6751cc – Diesel
Bukh DV10 10HP – 2cyl – Diesel
Bukh DV10ME 10HP – 2cyl – Diesel
Bukh DV10SME 10HP – 2cyl – Diesel
Bukh DV20 20HP – 2cyl – Diesel
Bukh DV20ME 20HP – 2cyl – Diesel
Bukh DV20SME 20HP – 2cyl – Diesel
Bukh DV36 36HP – 3cyl – Diesel
Bukh DV36ME 36HP – 3cyl – Diesel
Bukh DV36SME 36HP – 3cyl – Diesel
Bukh DV48ME Diesel l Engine
Bukh DV48SME Diesel l Engine
Sabb Various Models
Volvo Penta 2002 2cyl Diesel 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Volvo Penta 2003 T 3cyl Diesel 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
Volvo Penta 431A B 6cyl 262ci 4.3L Gas 1989, 1990, 1991, 1992
Volvo Penta 432A B 6cyl 262ci 4.3L Gas 1992, 1993, 1994, 1995, 1996, 1997, 1998
Volvo Penta 434A B 6cyl 262ci 4.3L Gas 1992, 1993, 1994, 1995, 1996, 1997
Volvo Penta 500A B 8cyl 305ci 5.0L Gas 1989, 1990, 1991, 1992, 1993
Volvo Penta 501A B 8cyl 305ci 5.0L Gas 1989, 1990, 1991, 1992, 1993
Volvo Penta 570A 8cyl 350ci 5.7L Gas 1989, 1990, 1991, 1992, 1993
Volvo Penta 572A B 8cyl 350ci 5.7L Gas 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Volvo Penta 740A B 8cyl 454ci 7.4L Gas 1989, 1990, 1991, 1992, 1993
Volvo Penta AD290
Volvo Penta AD31 A B D L P X 4cyl 146ci 2.4L Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Volvo Penta AQ115A B C 4cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta AQ120 4cyl Gas 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Volvo Penta AQ125 A B 4cyl Gas 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ125 4-Cyl , Gas 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ125A 4-Cyl , Gas 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ125B 4-Cyl , Gas 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ130A B C D 4cyl Gas 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta AQ131A B C D 4cyl Gas 1985, 1986, 1987, 1988, 1989
Volvo Penta AQ131A 4-Cyl , Gas 1985, 1986, 1987, 1988, 1989
Volvo Penta AQ131B 4-Cyl , Gas 1985, 1986, 1987, 1988, 1989
Volvo Penta AQ131C 4-Cyl , Gas 1985, 1986, 1987, 1988, 1989
Volvo Penta AQ131D 4-Cyl , Gas 1985, 1986, 1987, 1988, 1989
Volvo Penta AQ140 A 4cyl Gas 1975, 1976, 1977, 1978, 1979
Volvo Penta AQ140 4-Cyl , Gas 1975, 1976, 1977, 1978, 1979
Volvo Penta AQ140A 4-Cyl , Gas 1975, 1976, 1977, 1978, 1979
Volvo Penta AQ145 4cyl Gas 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ145A 4cyl Gas 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ145B 4-Cyl , Gas 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ145B 4cyl Gas 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ170A B C D 6cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Volvo Penta AQ171A 4-Cyl , Gas
Volvo Penta AQ171A 4cyl Gas
Volvo Penta AQ175 6cyl Gas
Volvo Penta AQ175A 6cyl Gas 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ200A B C 8cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200D 8cyl Gas
Volvo Penta AQ205 6cyl Gas
Volvo Penta AQ205A 6cyl Gas 1988, 1989
Volvo Penta AQ211 8cyl Gas
Volvo Penta AQ225A B C D F 8cyl Gas 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ231A B 8cyl Gas 1986, 1987, 1988, 1989
Volvo Penta AQ260 8cyl Gas
Volvo Penta AQ260A B 8cyl Gas 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ271 A B C 8cyl Gas 1986, 1987, 1988, 1989
Volvo Penta AQ290
Volvo Penta AQ290A 8cyl Gas 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ2B 2cyl Gas 1970, 1971, 1972, 1973, 1974, 1975
Volvo Penta AQ311
Volvo Penta AQAD30A 4cyl Diesel 1983, 1984, 1985, 1986
Volvo Penta AQAD31A 4cyl Diesel 1986, 1987, 1988, 1989
Volvo Penta AQAD40A B 6cyl 219ci 3.6L Diesel 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQAD41 6cyl 219ci 3.6L Diesel
Volvo Penta AQAD41A B D 6cyl 219ci 3.6L Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Volvo Penta AQD270D
Volvo Penta AQD32A 6cyl Diesel 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta AQD40A B 6cyl Diesel 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQD41 6cyl Diesel
Volvo Penta AQD41A 6cyl Diesel 1986, 1987, 1988, 1989
Volvo Penta B21
Volvo Penta B23
Volvo Penta BB115A B C 4cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta BB170 6cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978
Volvo Penta BB170B 6cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978
Volvo Penta BB225 A B C 8cyl Gas 1973, 1974, 1975, 1976, 1977
Volvo Penta BB231A 8cyl Gas 1987
Volvo Penta BB260A B C 8cyl Gas 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Volvo Penta BB261 A 8cyl Gas 1988, 1989
Volvo Penta KAD42A B P 6cyl 219ci 3.6L Diesel 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Volvo Penta KAMD42A B P 6cyl 219ci 3.6L Diesel 1991, 1992, 1993, 1994, 1995, 1996, 1997
Volvo Penta MB10A 2cyl Gas 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta MB20B 4cyl Gas 1969, 1970, 1971, 1972, 1973, 1974, 1975
Volvo Penta MD11
Volvo Penta MD11C 2cyl Diesel 1975, 1976, 1977, 1978, 1979, 1980, 1981
Volvo Penta MD17 3cyl Diesel 1975, 1976, 1977, 1978, 1979, 1980, 1981
Volvo Penta MD17 3-Cyl Diesel 1975, 1976, 1977, 1978, 1979, 1980, 1981
Volvo Penta MD17C 3cyl Diesel 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta MD17D 3cyl Diesel 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta MD18
Volvo Penta MD21 4cyl Diesel 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Volvo Penta MD21A 4cyl Diesel 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Volvo Penta MD2B 2cyl Diesel 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Volvo Penta MD2BHY 2cyl Diesel 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
Volvo Penta MD30 4cyl Diesel 1983, 1984, 1985, 1986
Volvo Penta MD30A 4cyl Diesel 1983, 1984, 1985, 1986
Volvo Penta MD31A 4cyl Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994
Volvo Penta MD32A 6cyl Diesel 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta MD3B 3cyl Diesel 1971, 1972, 1973, 1974, 1975
Volvo Penta MD40A 6cyl Diesel 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta MD5 1cyl Diesel
Volvo Penta MD5 1-Cyl Diesel
Volvo Penta MD5A B C 1cyl Diesel 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta MD6A 2cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976
Volvo Penta MD7 2cyl Diesel
Volvo Penta MD7 2-Cyl Diesel
Volvo Penta MD7A 2cyl Diesel 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta MD7B 2cyl Diesel 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD30 A B C 4cyl Diesel 1983, 1984, 1985, 1986
Volvo Penta TAMD31A B D L M P S X 4cyl 146ci 2.4L Diesel 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Volvo Penta TAMD40A B C 6cyl Diesel 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta TAMD41A 6cyl 219ci 3.6L Diesel 1986, 1987, 1988, 1989
Volvo Penta TAMD70 6cyl Diesel
Volvo Penta TAMD70E 6cyl Diesel 1983, 1984, 1985, 1986, 1987
Volvo Penta TMD30A B 4cyl Diesel 1983, 1984, 1985, 1986
Volvo Penta TMD31A B D L 4cyl 146ci 2.4L Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
Volvo Penta TMD40 6cyl Diesel
Volvo Penta TMD40A B C 6cyl Diesel 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta TMD41A B D L 6cyl 219ci 3.6 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
