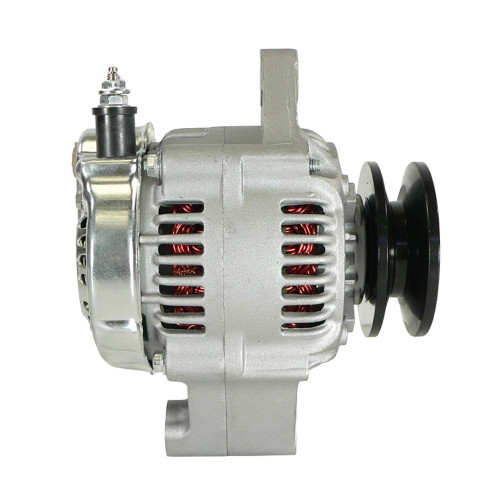

NEW Alternator for MASSEY FERGUSON MF-9220 & TUG MA-25 Applications; 400-52183, C6008611611, 600-861-1610, 600-861-1611, 021080-0980, 101211-2940, 101211-2941; LESTER 12771
$139.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
60 |
| REGULATOR CLOCK |
12:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.610″ |
| MOUNTING EAR THICKNESS |
15.500mm |
| MOUNTING EAR 2 THICKNESS |
2.268″ |
| MOUNTING EAR 2 THICKNESS |
57.600mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
P |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
IG |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
L |
| TERMINAL 5 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.992″ |
| PULLEY OUTER DIAMETER |
76mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AND0528, ND021080-0980, ND101211-2941 |
| CUMMINS |
C6008611611 |
| DENSO |
021080-0980, 101211-2940, 101211-2941 |
| J&N ELECTRICAL PRODUCTS |
400-52183 |
| KOMATSU |
600-861-1610, 600-861-1611 |
| LESTER |
12771 |
| LUCAS ELECTRIC |
LRA03677 |
