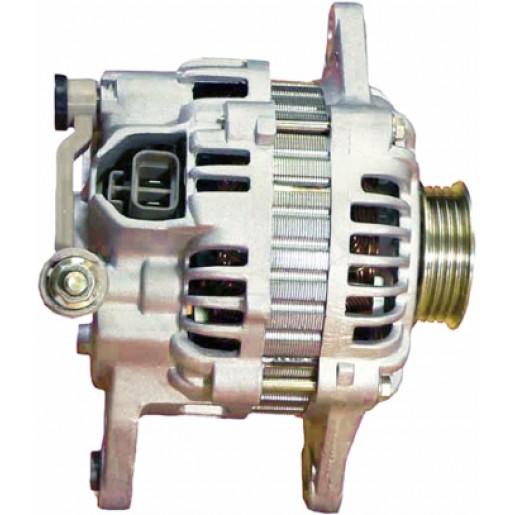

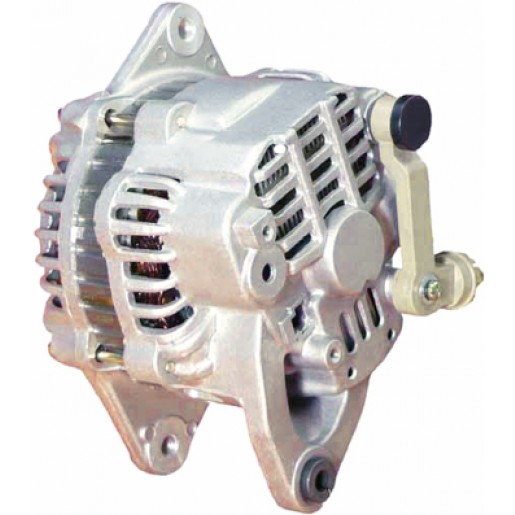

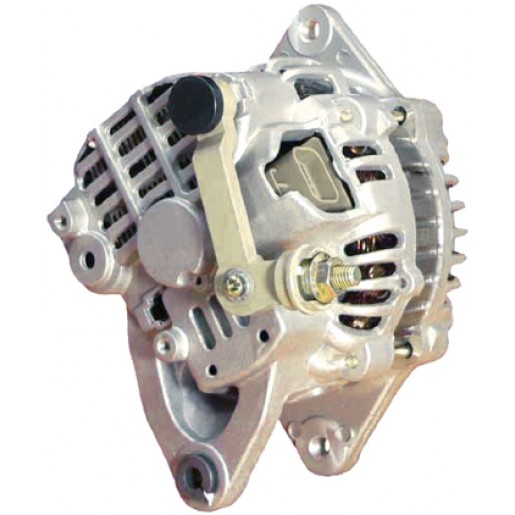

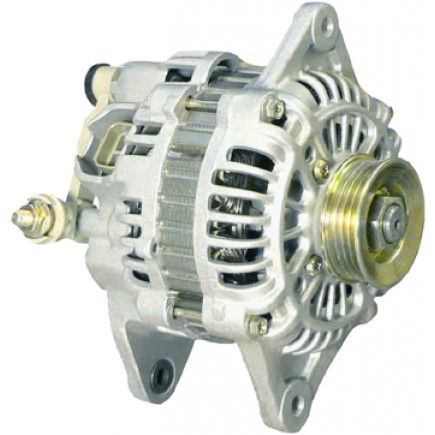

NEW Alternator for MAZDA Protege Applications; 400-48113, FP34-18-300, FP34-18-300A, FP34-18-300B, FP34-18-300C, FP34-18-300R00; LESTER 13719
$169.99
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | To Avoid Regulator Damage Consult Your Test Equipment Manufacturer for the Proper Procedure for Testing Alternators With “P, D” Type Regulators |
| VOLT | 12 |
| AMPS | 80 |
| REGULATOR CLOCK | 2:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.900mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M10x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 10.400mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.512″ |
| MOUNTING EAR THICKNESS | 13mm |
| MOUNTING EAR 2 THICKNESS | 0.512″ |
| MOUNTING EAR 2 THICKNESS | 13mm |
| MOUNTING EAR 3 THICKNESS | 0.630″ |
| MOUNTING EAR 3 THICKNESS | 16mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | D |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | P |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 4 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.323″ |
| PULLEY OUTER DIAMETER | 59mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | A2TB0191, AMT0107 |
| BOSCH | AL4225X |
| DENSO | 210-4163 |
| FORD | A4A2FB0191 |
| J&N ELECTRICAL PRODUCTS | 400-48113 |
| LESTER | 13719 |
| LUCAS ELECTRIC | LRA01122 |
| MAZDA | FP34-18-300, FP34-18-300A, FP34-18-300B, FP34-18-300C, FP34-18-300R00 |
| MITSUBISHI | A002TB0191, A002TB0191ZC, A2TB0191, A2TB0191A, A2TB0191B, A2TB0191ZC, A2TB1091A, A2TB1091B |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 1999 - 2000 | MAZDA | PROTEGE | 1.8L |
| 2001 - 2003 | MAZDA | PROTEGE | 2.0L |
| 2002 - 2003 | MAZDA | PROTEGE | 1.6L |
