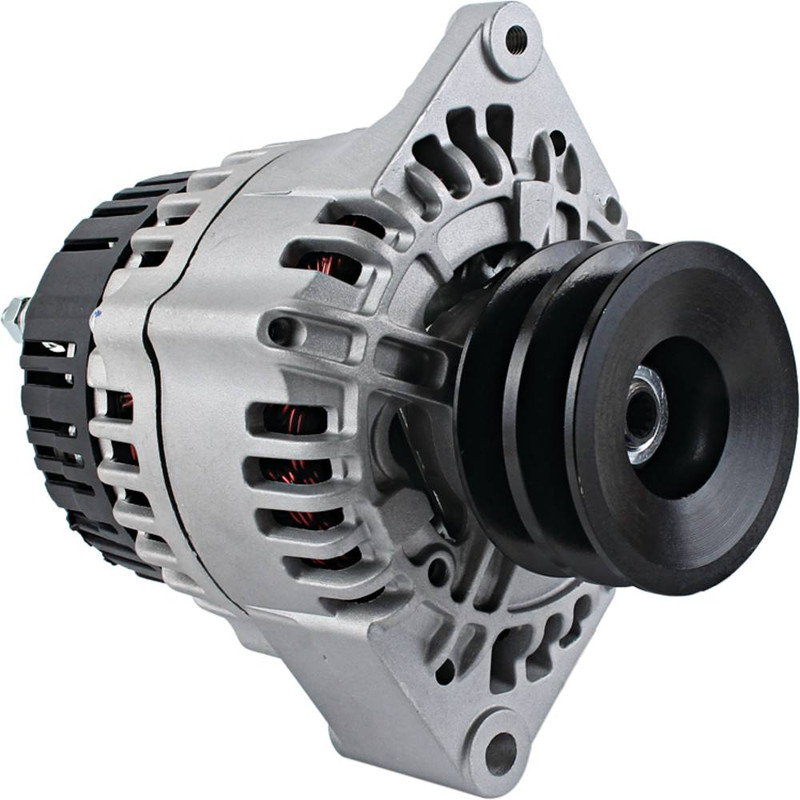

NEW Alternator for McCormick Tractors; 400-29036, 406015A1, 5400-0501[MAHLE 11.201.952, AAK5182, IA0952, MG14]; LESTER 20720
$264.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Letrika/MAHLE AAK |
| VOLT | 12 |
| AMPS | 120 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.622″ |
| MOUNTING EAR THICKNESS | 15.800mm |
| MOUNTING EAR 2 THICKNESS | 2.039″ |
| MOUNTING EAR 2 THICKNESS | 51.800mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |

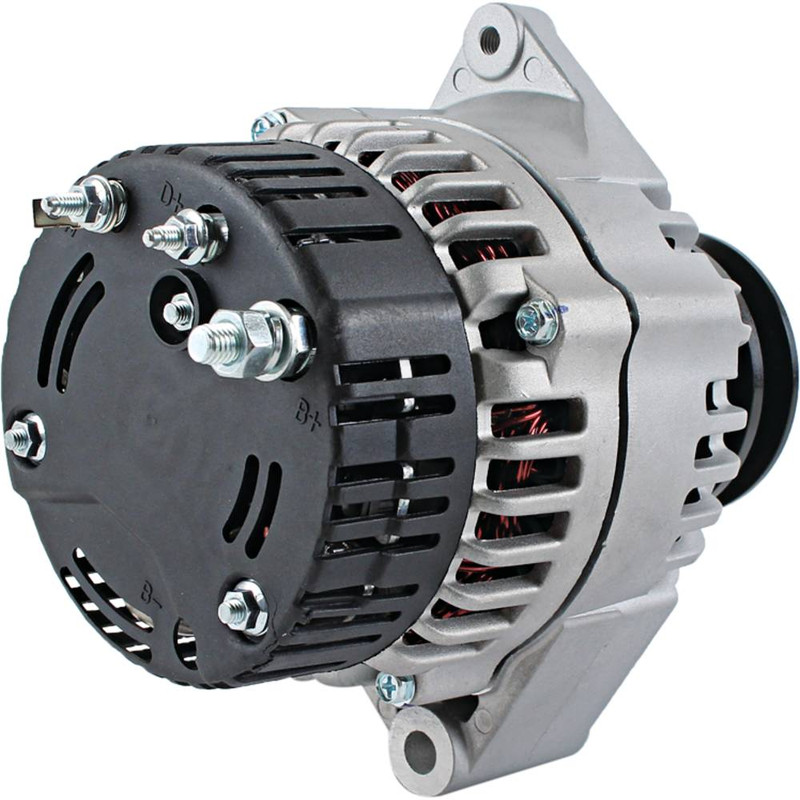

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | W |
| TERMINAL 3 SIZE | M5x0.8 Spade Combo |
| TERMINAL ID 4 | D+ |
| TERMINAL 4 SIZE | M5x0.8 |
| NUMBER OF GROOVES | 2 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.106″ |
| PULLEY OUTER DIAMETER | 78.900mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | IA0952, MG14 |
| ATLANTIC QUALITY PARTS | 5400-0501 |
| LESTER | 20720 |
| LETRIKA/ISKRA | 11.201.952, IA 0952 |
| MAHLE | 11.201.952, AAK5182, IA0952, MG14 |
| MCCORMICK | 406015A1 |
