New MITSUBISHI Alternator for ACURA ILX, HONDA CIVIC & HR-V Auto & Light Trucks; MIS-A5TJ0191, 31100R1A-A010, 31100R1A-A011M2, 31100R1A-A01RM, AHGA81, A005TJ0191, A5TJ0191; LESTER 11537
November 22, 2023
New PREMIUM QUALITY Alternator for MELROE COMPANY & MITSUBISHI Caterpillar Lift Truck Applications; 400-46016, MCF00211, A000B0471K, AC155515; LESTER 12423
November 22, 2023

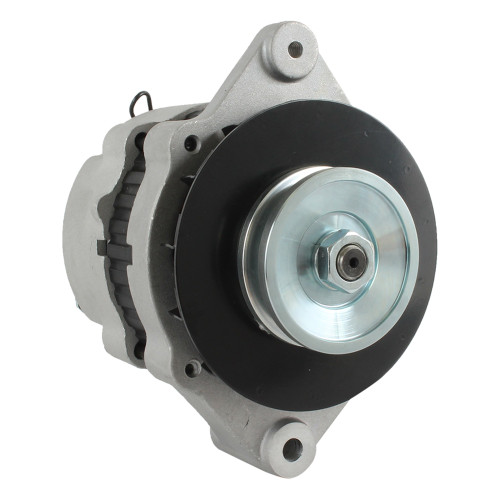

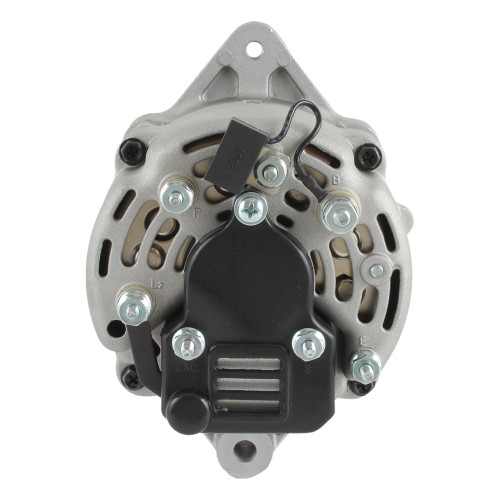

NEW Alternator for MELROE COMPANY & MITSUBISHI Caterpillar Lift Truck Applications; 400-46028, MCF00211, A000B0471K, AC155515; LESTER 12423
$189.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 55 |
| REGULATOR CLOCK | 6:00 |
| MOUNT HOLE ID 1 | 5/16-18 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.646″ |
| MOUNTING EAR THICKNESS | 16.400mm |
| MOUNTING EAR 2 THICKNESS | 1.996″ |
| MOUNTING EAR 2 THICKNESS | 50.700mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 1/4-20 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.717″ |
| PULLEY OUTER DIAMETER | 69mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-46016, AMN0022 |
| CATERPILLAR | MCF00211 |
| J&N ELECTRICAL PRODUCTS | 400-46016, 400-46028 |
| LESTER | 12423 |
| LUCAS ELECTRIC | LRA01299 |
| MANDO | A000B0471K, AC155515 |
| OTHER OEMS | 60559 |
| VALEO | TA000B32201 |
