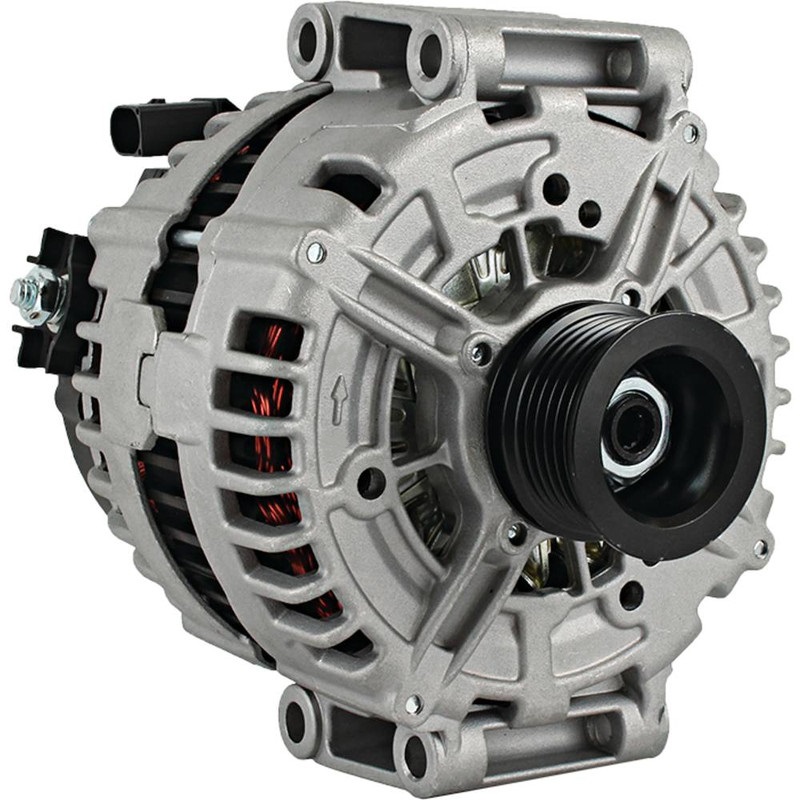

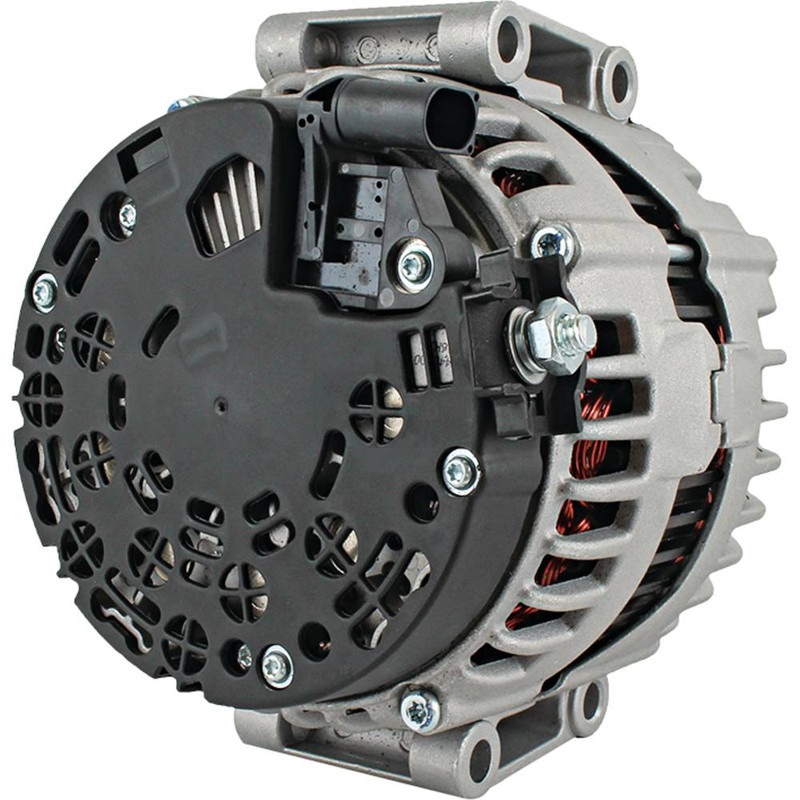

NEW Alternator for MERCEDES BENZ CL550, & S550 Applications; 400-24246, 013-154-55-02, 0121813006, 0-121-813-006, 0121813106, AL0861X; LESTER 11310
$304.99
SEARCH: 564669 (SAME)
SEARCH: DIFF. RECTIFIER & STATOR
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 220 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 9.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 8.600mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 9.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE 4 TYPE | Slotted |
| MOUNTING EAR THICKNESS | 2.756″ |
| MOUNTING EAR THICKNESS | 70mm |
| MOUNTING EAR 2 THICKNESS | 2.756″ |
| MOUNTING EAR 2 THICKNESS | 70mm |
| MOUNTING EAR 3 THICKNESS | 2.756″ |
| MOUNTING EAR 3 THICKNESS | 70mm |
| MOUNTING EAR 4 THICKNESS | 2.756″ |
| MOUNTING EAR 4 THICKNESS | 70mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |

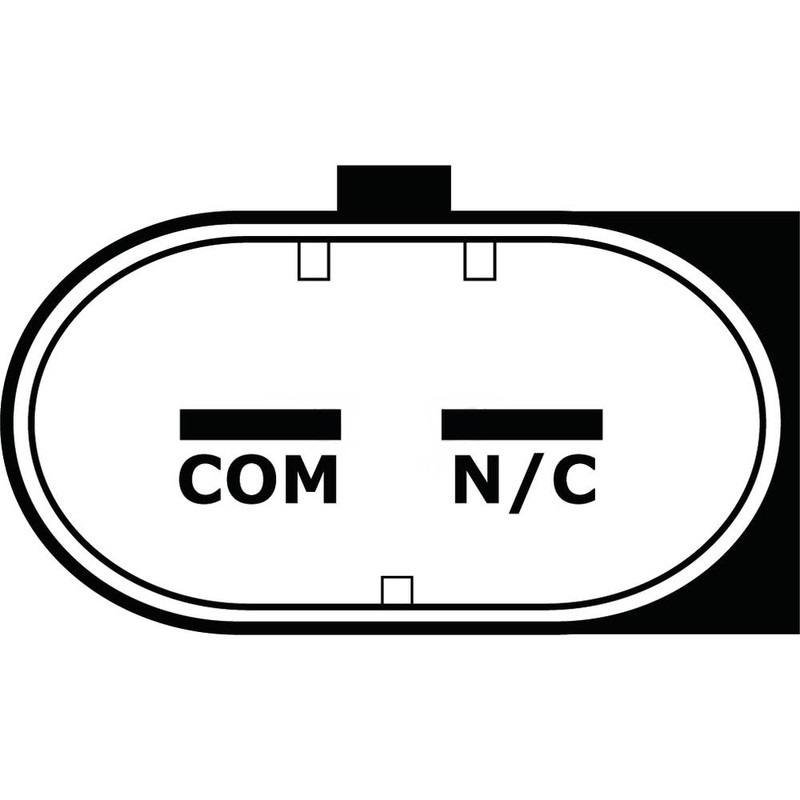

| TERMINAL ID 3 | COM |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | N/C |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.165″ |
| PULLEY OUTER DIAMETER | 55mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Part # | Manufacturer Name |
| ABO0409 | ARROWHEAD |
| VBO0409 | ARROWHEAD (OEM) |
| 400-24246 | J & N |
| VBO0409 | ARROWHEAD (OEM) (OLD) |
| 11310 | LESTER |
| 11310 | BBB |
| 11310 | BBB NEW |
| 0-121-813-006 | BOSCH |
| A-6550 | DIXIE |
| 10926 | EXCEL |
| LRA03847 | LUCAS ELECTRICAL EUROPE |
| 013-154-55-02 | MERCEDES BENZ |
| 12938 | REMY LIGHT DUTY |
| A3312 | USA INDUSTRIES |
| 90-15-6585 | WILSON |
| 90-15-6585 | WILSON NEW |
| 12938 | WORLDWIDE |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2007 - 2009 | MERCEDES BENZ | S CLASS | 5.5L |
| 2007 - 2010 | MERCEDES BENZ | S550 | 5.5L |
| 2009 | MERCEDES BENZ | CL600 | 5.5L V12 |
| 2009 - 2010 | MERCEDES BENZ | CL550 | 5.5L V8 |
