NEW Alternator for DODGE, FREIGHTLINER & MERCEDES BENZ Applications; 400-24225, 013-154-05-02, 68011843AA, 68011843AC, 68011843AD; LESTER 11305
June 12, 2020
NEW Alternator for MERCEDES BENZ CL600, CL63 AMG & S63 AMG Applications; 400-24148, 013-154-99-02, A0131549902, 0121813014, 0121813114, 0986047797; LESTER 11305
June 12, 2020

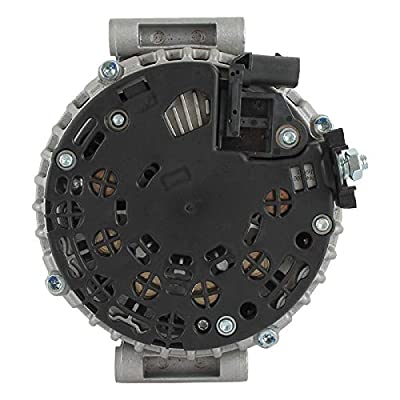

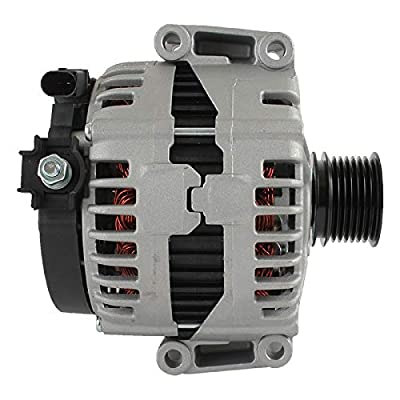

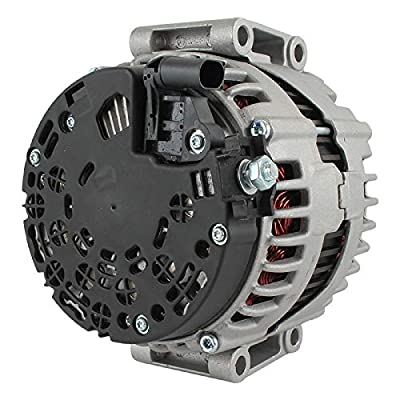

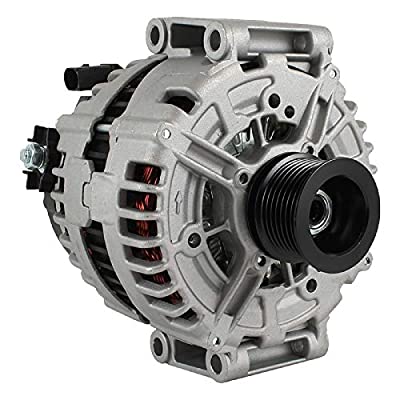

NEW Alternator for MERCEDES BENZ CL600, CL63 AMG, CL65 AMG, S350, S600, S63 AMG, S65 AMG; 400-24247, 013-154-06-02, A013-154-06-02, 0121813002, 0-121-813-002, 0-121-813-102, AL0864X; LESTER 11304
$304.99
SEARCH: EXACT MATCH EXC. 6S PULLEY
SEARCH: EXACT MATCH EXC. PULLEY
SEARCH: SAME EXC. USES CLUTCH TYPE
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 220 |
| REGULATOR CLOCK | 1:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 9.300mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 8.400mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 9.300mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE 4 TYPE | Slotted |
| MOUNTING EAR THICKNESS | 2.756″ |
| MOUNTING EAR THICKNESS | 70mm |
| MOUNTING EAR 2 THICKNESS | 2.756″ |
| MOUNTING EAR 2 THICKNESS | 70mm |
| MOUNTING EAR 3 THICKNESS | 2.756″ |
| MOUNTING EAR 3 THICKNESS | 70mm |
| MOUNTING EAR 4 THICKNESS | 2.756″ |
| MOUNTING EAR 4 THICKNESS | 70mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | COM |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | N/C |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 7 |
| GROOVE OD | 1.972″ |
| GROOVE OD | 50.100mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.161″ |
| PULLEY OUTER DIAMETER | 54.900mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Part # | Manufacturer Name |
| ABO0410 | ARROWHEAD |
| VBO0410 | ARROWHEAD (OEM) |
| 400-24247 | J & N |
| 400-24304 | J & N |
| 400-24304 | J amp; N |
| 400-24247 | J amp; N |
| 11304 | LESTER |
| 11304 | BBB |
| 11304 | BBB NEW |
| 0-121-813-002 | BOSCH |
| 0-121-813-102 | BOSCH |
| A-6551 | DIXIE |
| 10927 | EXCEL |
| LRA03911 | LUCAS ELECTRICAL EUROPE |
| 013-154-06-02 | MERCEDES BENZ |
| A013-154-06-02 | MERCEDES BENZ |
| 12973 | REMY LIGHT DUTY |
| A3344 | USA INDUSTRIES |
| 90-15-6581 | WILSON |
| 90-15-6581 | WILSON NEW |
| ALT10694 | WOOD AUTO |
| 12973 | WORLDWIDE |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2005 | MERCEDES BENZ | S CLASS | 6.0L |
| 2006 - 2011 | MERCEDES BENZ | S600 | 5.5L |
| 2007 - 2010 | MERCEDES BENZ | CL550 | 5.5L |
| 2007 - 2010 | MERCEDES BENZ | CL600 | 5.5L |
| 2007 - 2011 | MERCEDES BENZ | CL600 | 5.5L V12 |
| 2007 - 2011 | MERCEDES BENZ | S65 AMG | 6.0L |
| 2008 - 2010 | MERCEDES BENZ | CL63 AMG | 6.2L |
| 2008 - 2010 | MERCEDES BENZ | S63 AMG | 6.2L |
| 2008 - 2011 | MERCEDES BENZ | CL65 AMG | 6.0L |
| 2012 - 2013 | MERCEDES-BENZ | CL65 AMG | 6.0L |
| 2012 - 2013 | MERCEDES-BENZ | S350 | 3.0L (Diesel) |
| 2012 - 2013 | MERCEDES-BENZ | S600 | 5.5L |
| 2012 - 2013 | MERCEDES-BENZ | S65 AMG | 6.0L |
| 2012 - 2014 | MERCEDES-BENZ | CL600 | 5.5L V12 |
