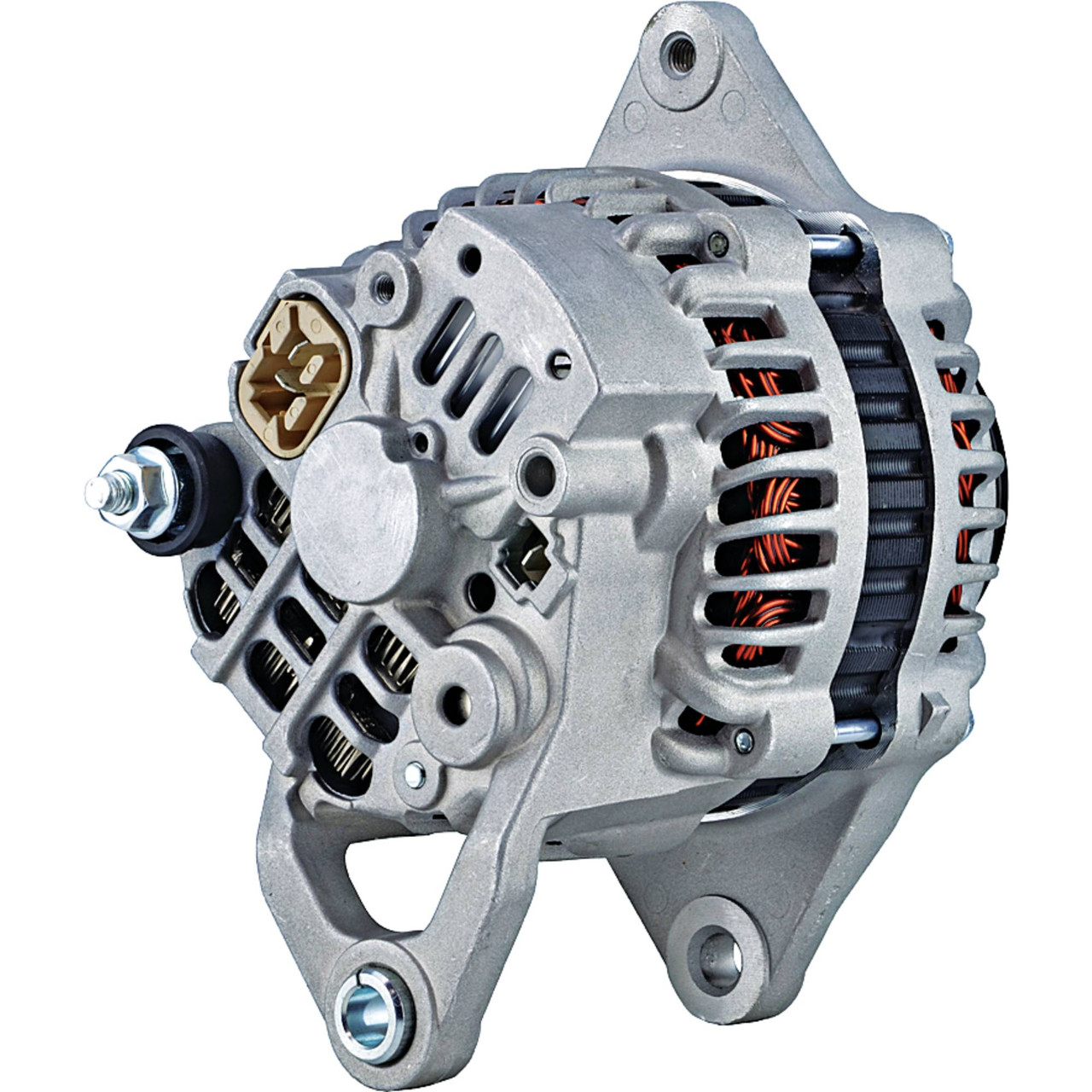

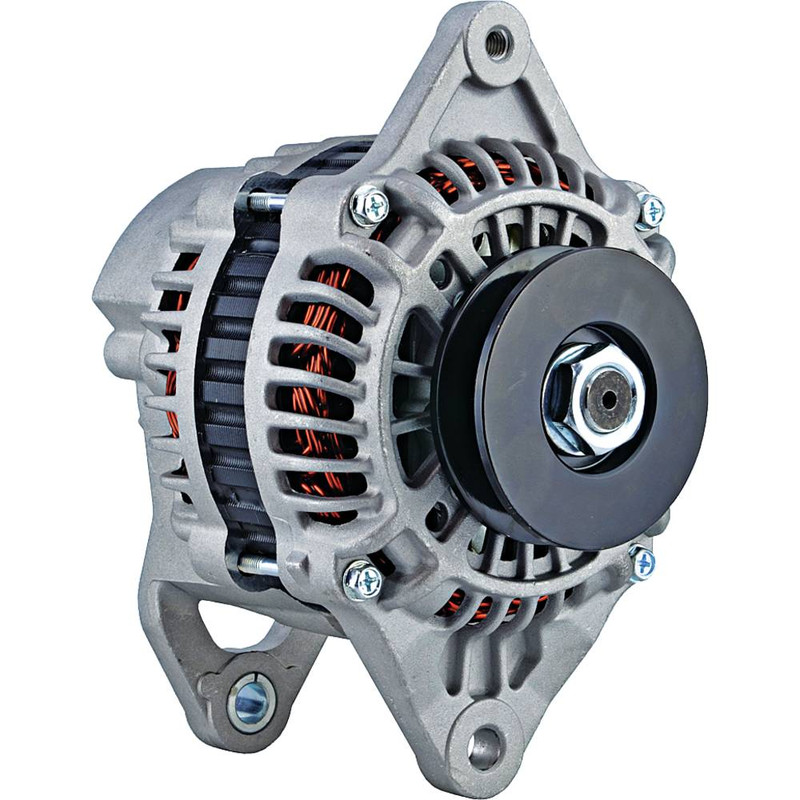

NEW Alternator for MITSUBISHI Engines – Industrial; 400-48231, LRA03751, 32A68-16501, A5TA5077A
$259.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
75 |
| REGULATOR CLOCK |
11:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.300mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.504″ |
| MOUNTING EAR THICKNESS |
12.800mm |
| MOUNTING EAR 2 THICKNESS |
0.516″ |
| MOUNTING EAR 2 THICKNESS |
13.100mm |
| MOUNTING EAR 3 THICKNESS |
0.630″ |
| MOUNTING EAR 3 THICKNESS |
16mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |

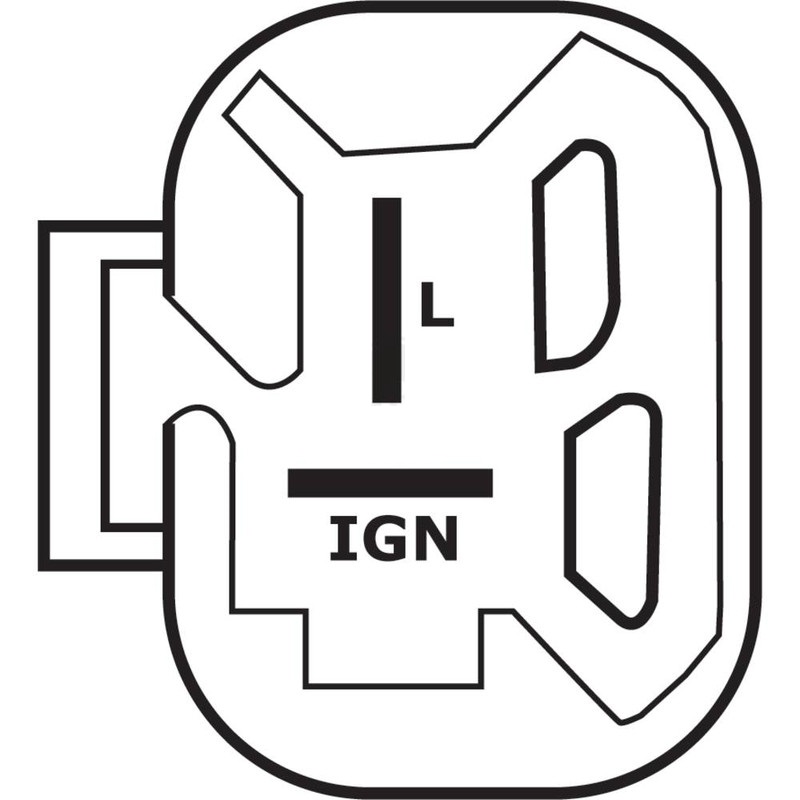

| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
IG |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
L |
| TERMINAL 4 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.870″ |
| PULLEY OUTER DIAMETER |
72.900mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-48231 |
| LUCAS ELECTRIC |
LRA03751 |
| MITSUBISHI |
32A68-16501, A5TA5077A |
