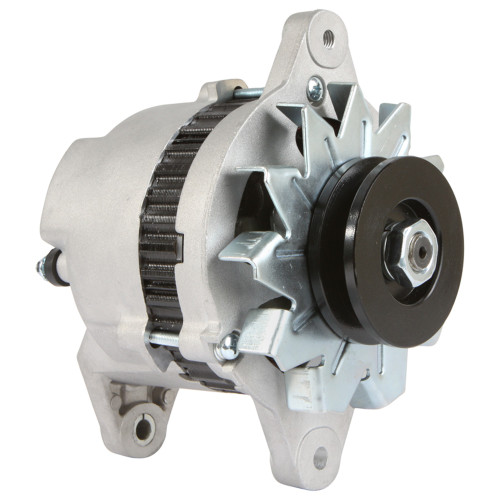

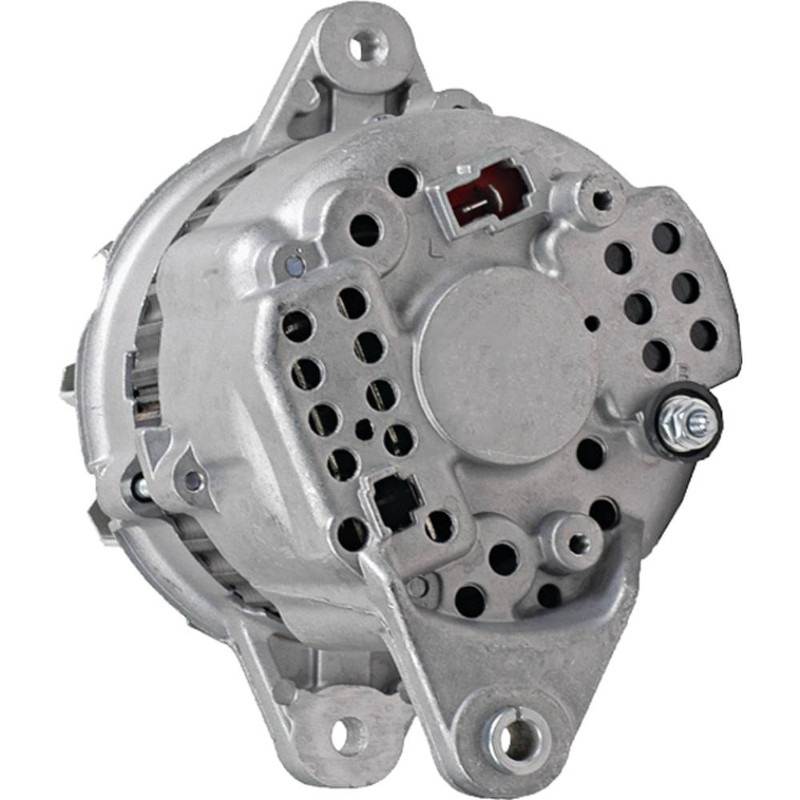

NEW Alternator for MITSUBISHI FD-10 to FD-35AT, FDC-20-D, FDC-25-D & TCM FD20Z, SD12Z Forklift/ Lift Trucks; 400-48045, 34468-16100, 34468-26100, A1T70283, A1T70783, 3046659, 3779856; LESTER 12309
$167.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 24 |
| AMPS | 20 |
| REGULATOR CLOCK | 12:00 |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.677″ |
| PULLEY OUTER DIAMETER | 68mm |
| WARRANTY | 1 Year |
| ADD’L INFO | 80mm Between Bottom Mounting Ears, 2-Blade Plug, Belt Width 9mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AMT0254 |
| HYSTER | 3046659, 3779856 |
| J&N ELECTRICAL PRODUCTS | 400-48045 |
| LESTER | 12309 |
| LUCAS ELECTRIC | LRA02437 |
| MITSUBISHI | 34468-16100, 34468-26100, A1T70283, A1T70783 |
Applications
Part fit
| MAKE | MODEL | ENGINE |
| Isuzu | Misc. Industrial Equipment | 4JB1 Engine |
| Mitsubishi | FD-10 | |
| Mitsubishi | FD-14 | |
| Mitsubishi | FD-15 | |
| Mitsubishi | FD-15T | |
| Mitsubishi | FD-20 | Mitsubishi S4 |
| Mitsubishi | FD-20 | Mitsubishi S4E / S4 |
| Mitsubishi | FD-20B-D | Mitsubishi S4 |
| Mitsubishi | FD-20B-D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-20B-DS | Mitsubishi S4 |
| Mitsubishi | FD-20B-DS | Mitsubishi S4E / S4 |
| Mitsubishi | FD-20D | Mitsubishi S4 |
| Mitsubishi | FD-20D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-25 | Mitsubishi S4 |
| Mitsubishi | FD-25 | Mitsubishi S4E / S4 |
| Mitsubishi | FD-25B-D | Mitsubishi S4 |
| Mitsubishi | FD-25B-D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-25B-DS | Mitsubishi S4 |
| Mitsubishi | FD-25B-DS | Mitsubishi S4E / S4 |
| Mitsubishi | FD-25D | Mitsubishi S4 |
| Mitsubishi | FD-25D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-25DS | Mitsubishi S4 |
| Mitsubishi | FD-25DS | Mitsubishi S4E / S4 |
| Mitsubishi | FD-25T | Mitsubishi S4 |
| Mitsubishi | FD-25T | Mitsubishi S4E / S4 |
| Mitsubishi | FD-30 | Mitsubishi S4 |
| Mitsubishi | FD-30 | Mitsubishi S4E / S4 |
| Mitsubishi | FD-30B-D | Mitsubishi S4 |
| Mitsubishi | FD-30B-D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-30B-DS | Mitsubishi S4 |
| Mitsubishi | FD-30B-DS | Mitsubishi S4E / S4 |
| Mitsubishi | FD-30D | Mitsubishi S4 |
| Mitsubishi | FD-30D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-30DS | Mitsubishi S4 |
| Mitsubishi | FD-30DS | Mitsubishi S4E / S4 |
| Mitsubishi | FD-30T | Mitsubishi S4 |
| Mitsubishi | FD-30T | Mitsubishi S4E / S4 |
| Mitsubishi | FD-35A | Mitsubishi S4 |
| Mitsubishi | FD-35A | Mitsubishi S4E / S4 |
| Mitsubishi | FD-35AB-D | Mitsubishi S4 |
| Mitsubishi | FD-35AB-D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-35A-D | Mitsubishi S4 |
| Mitsubishi | FD-35A-D | Mitsubishi S4 |
| Mitsubishi | FD-35A-D | Mitsubishi S4E / S4 |
| Mitsubishi | FD-35AT | Mitsubishi S4 |
| Mitsubishi | FD-35AT | Mitsubishi S4E / S4 |
| Mitsubishi | FDC-20-D | Mitsubishi S4 |
| Mitsubishi | FDC-25-D | Mitsubishi S4 |
| TCM Equipment | FD20Z | Isuzu C240 Diesel |
| TCM Equipment | FD23Z | Isuzu C240 Diesel |
| TCM Equipment | FD25Z | Isuzu C240 Diesel |
| TCM Equipment | FD28Z | Isuzu C240 Diesel |
| TCM Equipment | FD30Z | Isuzu C240 Diesel |
| TCM Equipment | SD10Z | |
| TCM Equipment | SD12Z |
