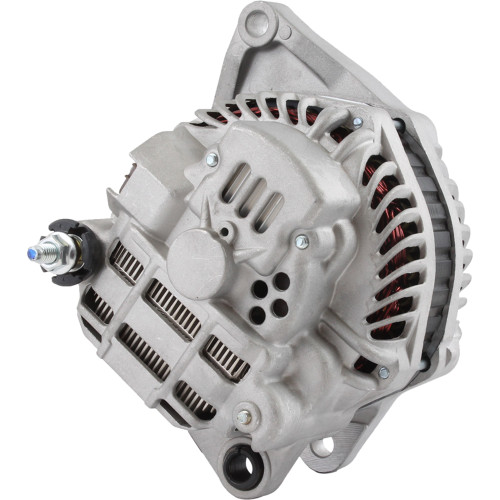

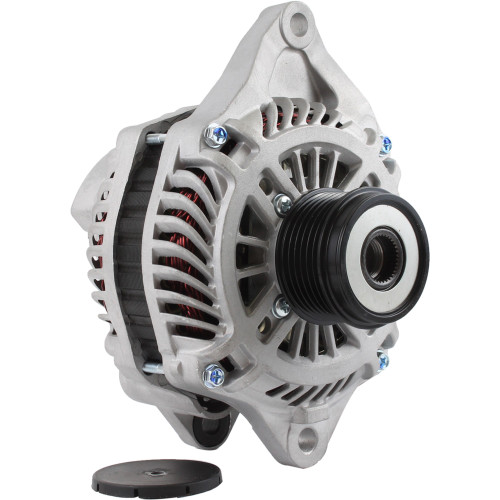

NEW Alternator for MITSUBISHI Lancer & Outlander; 400-48171, 1800A053, A003TG3181, A003TG3181MI, A3TG3181, M1800A053D; LESTER 11377
$259.99
Add’l Info: w/ & wo/Turbo 120 Amp | Search: w/Turbo 135 Amp
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 10:30 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.300mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.709″ |
| MOUNTING EAR THICKNESS | 18mm |
| MOUNTING EAR 2 THICKNESS | 0.512″ |
| MOUNTING EAR 2 THICKNESS | 13mm |
| MOUNTING EAR 3 THICKNESS | 0.642″ |
| MOUNTING EAR 3 THICKNESS | 16.300mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | G |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| TERMINAL ID 6 | FR |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.283″ |
| PULLEY OUTER DIAMETER | 58mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | A3TG3181, AMT0234 |
| J&N ELECTRICAL PRODUCTS | 400-48171 |
| LESTER | 11377 |
| LUCAS ELECTRIC | LRA03488 |
| MITSUBISHI | 1800A053, A003TG3181, A003TG3181MI, A3TG3181, M1800A053D |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Mitsubishi | Lancer | 2 | 2008, 2009, 2010 |
| Mitsubishi | Lancer | 2.4 | 2009, 2010 |
| Mitsubishi | Lancer | Naturally Aspirate | 2008 |
| Mitsubishi | Lancer | 1998cc, 2.0L/122CI L4 Naturally Aspirated | 2008, 2009, 2010 |
| Mitsubishi | Lancer | 1999cc, 2.0L/122CI L4 | 2008, 2009 |
| Mitsubishi | Lancer | 2000cc, 2.0L/122CI L4 | 2010 |
| Mitsubishi | Lancer | 2360cc, 2.4L/144CI L4 | 2009, 2010 |
| Mitsubishi | Outlander | 2.4 | 2008, 2009, 2010 |
| Mitsubishi | Outlander | 2360cc, 2.4L/144CI L4 | 2008, 2009, 2010 |
| Mitsubishi | Outlander | 2400cc, 2.4L/146CI L4 | 2008 |
