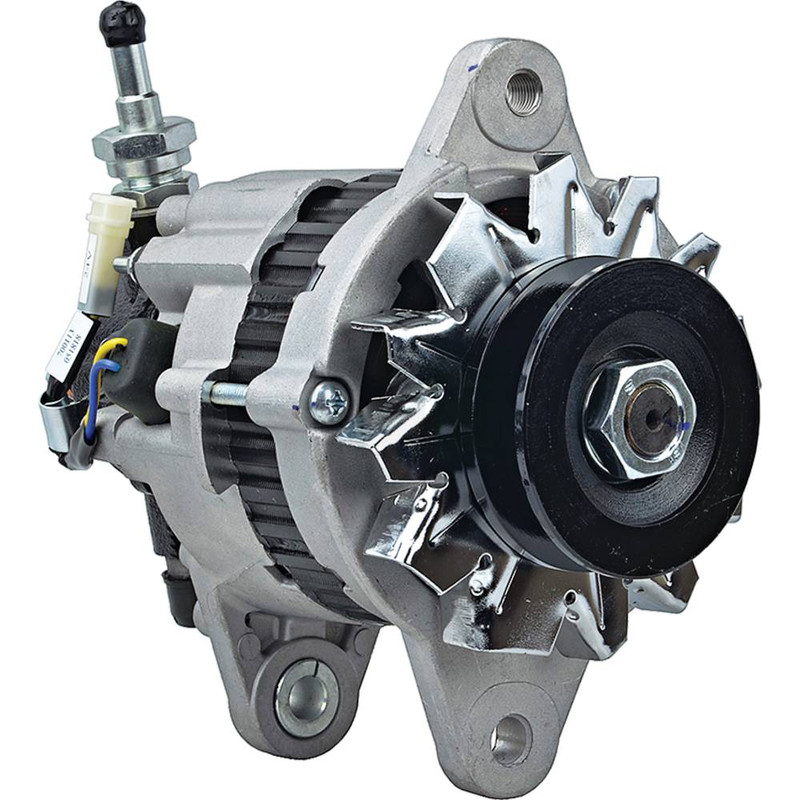

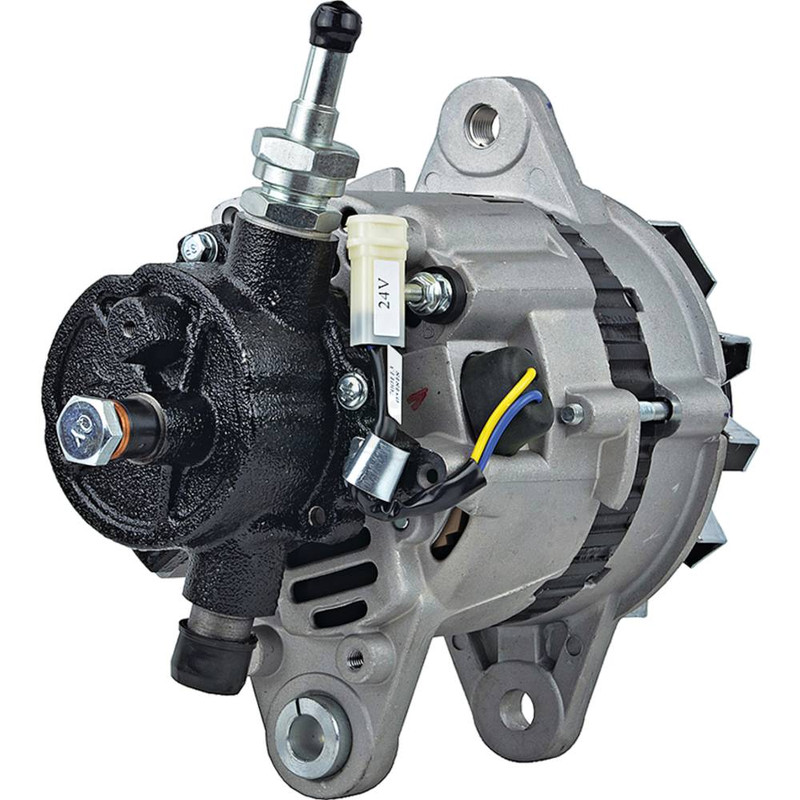

NEW Alternator for MITSUBISHI Lift Trucks; 400-48217, A2T72483, 8300-0500; LESTER 12317
$284.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
24 |
| AMPS |
30 |
| REGULATOR CLOCK |
3:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
M12x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
12.200mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M5x0.8 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
3.303″ |
| PULLEY OUTER DIAMETER |
83.900mm |
|
Includes Vacuum Pump @ 2-Pin Plug |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AMT0245 |
| ATLANTIC QUALITY PARTS |
8300-0500 |
| J & N |
400-48217 |
| ARROWHEAD (OEM) (OLD) |
A2T72483 |
| LESTER |
12317 |
| BBB HD |
12317 |
| DIXIE |
A-8808 |
| DIXIE NEW |
148-23201 |
| DUBOIS |
M900097 |
| MITSUBISHI |
A2T72483 |
| MITSUBISHI INDUSTRIAL |
34468-25100 |
| MPA HD |
X612317 |
| NAPA HD |
612317 |
Part fit
| Year |
Make |
Model |
Engine |
| Year |
Make |
Model |
Engine |
| All |
MITSUBISHI |
FD-30 |
Mitsubishi S4E / S4S |
| All |
MITSUBISHI |
FD-30B-D |
Mitsubishi S4E / S4S |
| All |
MITSUBISHI |
FD-30B-DS |
Mitsubishi S4E / S4S |
| All |
MITSUBISHI |
FD-30D |
Mitsubishi S4E / S4S |
| All |
MITSUBISHI |
FD-30DS |
Mitsubishi S4E / S4S |
| All |
MITSUBISHI |
FD-30T |
Mitsubishi S4E / S4S |
| All |
MITSUBISHI |
FD-35D |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-35D2 |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-35DS |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-38 |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-40D |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-40D2 |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-45D |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-45D2 |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-50C |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
FD-50C-D |
Mitsubishi S6E / S6S |
| All |
MITSUBISHI |
S4E - Diesel |
All |
| All |
MITSUBISHI |
S6E |
All |
