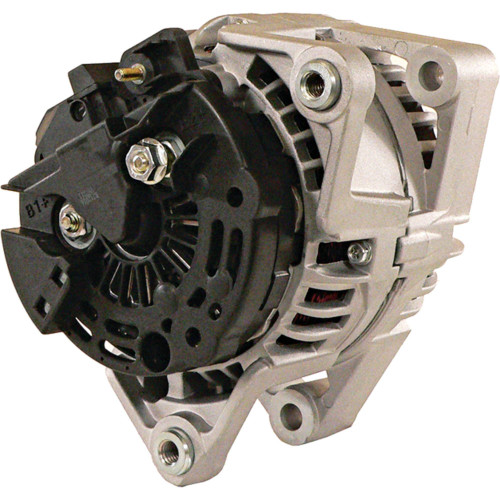

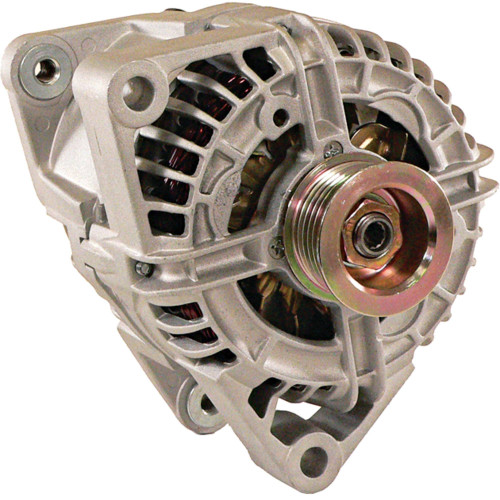

NEW Alternator for SATURN L SERIES 3.0L; 400-24183, 0124515008,0124515043, AL8504X, 90585952, 9227893; LESTER13805

$184.99

Email
Categories: ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 120
REGULATOR CLOCK 12:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 10.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE ID 2 M10x1.50
MOUNT HOLE 2 TYPE Threaded
MOUNT HOLE ID 3 10.500mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNT HOLE ID 4 M10x1.50
MOUNT HOLE 4 TYPE Threaded
MOUNTING EAR THICKNESS 1.319″
MOUNTING EAR THICKNESS 33.500mm
MOUNTING EAR 2 THICKNESS 0.827″
MOUNTING EAR 2 THICKNESS 21mm
MOUNTING EAR 3 THICKNESS 1.319″
MOUNTING EAR 3 THICKNESS 33.500mm
MOUNTING EAR 4 THICKNESS 0.827″
MOUNTING EAR 4 THICKNESS 21mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D+
TERMINAL 3 SIZE M5x0.8
POLARITY Negative
NUMBER OF GROOVES 6
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.350″
PULLEY OUTER DIAMETER 59.700mm

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
AC DELCO TOOLS 334-1349
ARROWHEAD ABO0194
BOSCH 0124515008, 0-124-515-008, 0124515043, 0-124-515-043, AL8504X
DELCO 21019217, 22674550, 89037283, 90585952, 9227893
DENSO 210-6116
GENERAL MOTORS 90585952, 9227893
J&N ELECTRICAL PRODUCTS 400-24183
LESTER 13805

Applications

Part fit

MAKE MODEL ENGINE YEAR
Saturn L300 3000cc, 3.0L/181CI V6 2001, 2002, 2003, 2004, 2005
Saturn LS2 3000cc, 3.0L/181CI V6 2000
Saturn LW2 3000cc, 3.0L/181CI V6 2000
Saturn LW300 3000cc, 3.0L/181CI V6 2001, 2002, 2003
