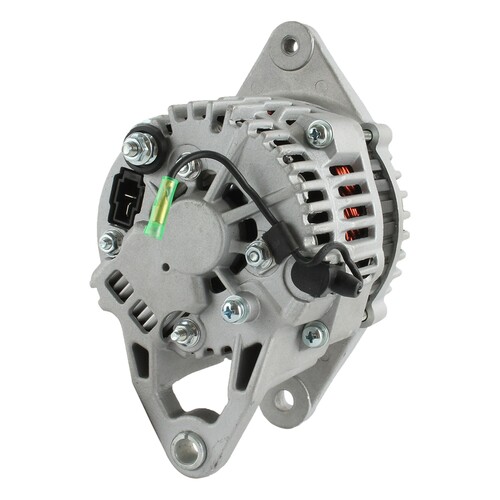

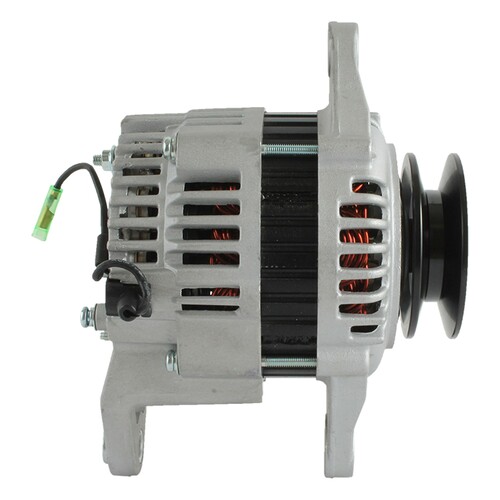

NEW Alternator for TAKEUCHI TL150 Loaders; AHI0146, 400-44044, 123900-77210, ALR0063, LR160-735, LR160-735B; LESTER 12761
$189.99
Specifications
| LESTER | 12761 |
| VOLT | 12 |
| AMPS | 60 |
| CONDITION | New |
| REGULATOR CLOCK | 9:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.512″ |
| MOUNTING EAR THICKNESS | 13mm |
| MOUNTING EAR 2 THICKNESS | 0.512″ |
| MOUNTING EAR 2 THICKNESS | 13mm |
| MOUNTING EAR 3 THICKNESS | 0.634″ |
| MOUNTING EAR 3 THICKNESS | 16.100mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | IG/R |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | P |
| TERMINAL 5 SIZE | 3.7mm Bullet |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.228″ |
| PULLEY OUTER DIAMETER | 82mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AHI0146 |
| GEHL | 138047 |
| HITACHI | ALR0063, LR160-735, LR160-735B |
| J&N | 400-44044, 400-44044R |
| JANNCO | 400-44044R |
| LESTER | 12761 |
| LUCAS ELECTRIC | LRA03292 |
| YANMAR | 123900-77210 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2006 - 2007 | TAKEUCHI | TL150 | 96H |
