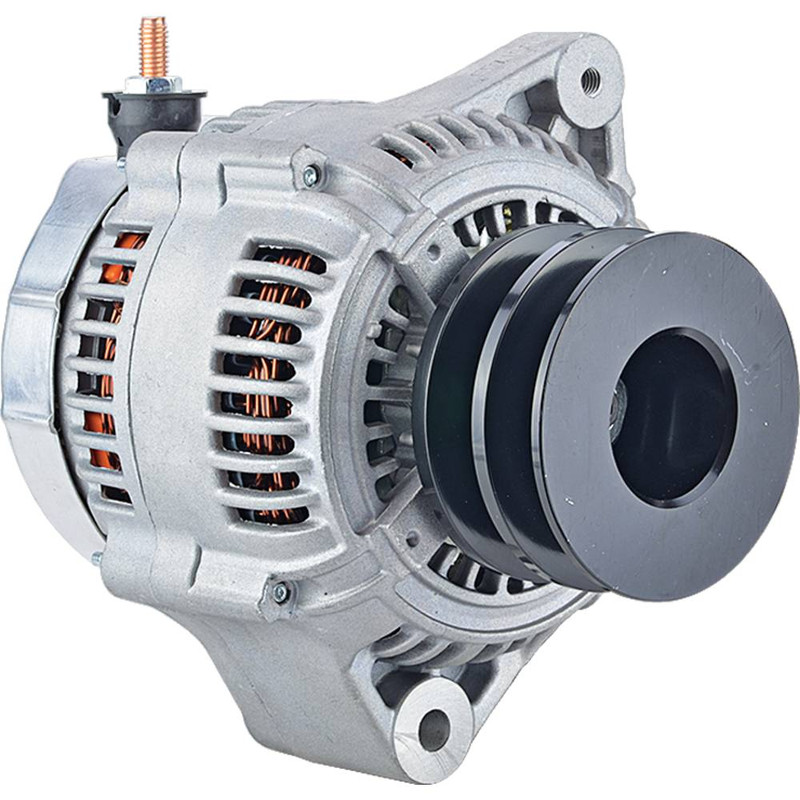

![NEW Alternator for TUG MA-25 Baggage Tractor; 400-52272, C6008611951, [DENSO021080-050, 021080-0500, 102211-083, 102211-0830]; LESTER 12852](https://partszone.ca/wp-content/uploads/2026/02/400-52272.jpg)

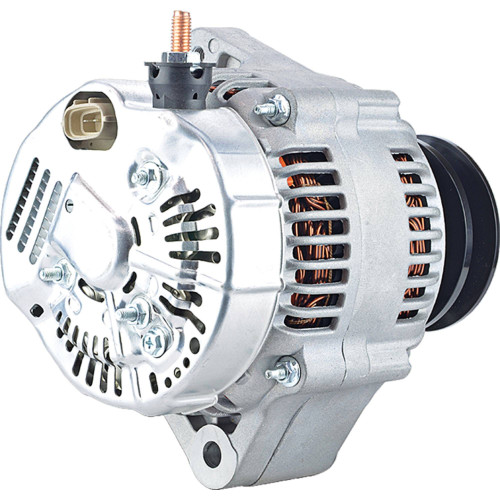

![NEW Alternator for TUG MA-25 Baggage Tractor; 400-52272, C6008611951, [DENSO021080-050, 021080-0500, 102211-083, 102211-0830]; LESTER 12852 - Image 2](https://partszone.ca/wp-content/uploads/2026/02/400-52272_b.jpg)
NEW Alternator for TUG MA-25 Baggage Tractor; 400-52272, C6008611951, [DENSO021080-050, 021080-0500, 102211-083, 102211-0830]; LESTER 12852
$319.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.886″ |
| MOUNTING EAR THICKNESS | 22.500mm |
| MOUNTING EAR 2 THICKNESS | 2.287″ |
| MOUNTING EAR 2 THICKNESS | 58.100mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | P |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | IG |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 2 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.346″ |
| PULLEY OUTER DIAMETER | 85mm |
