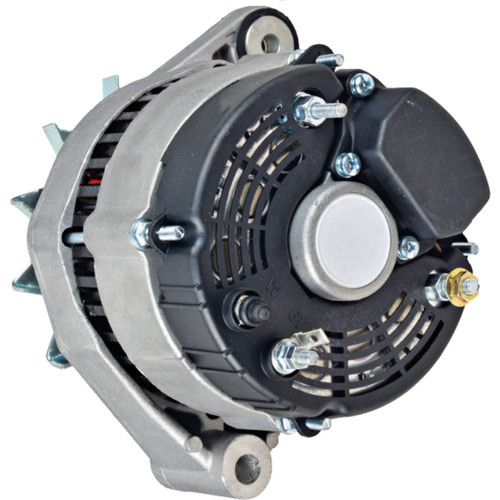

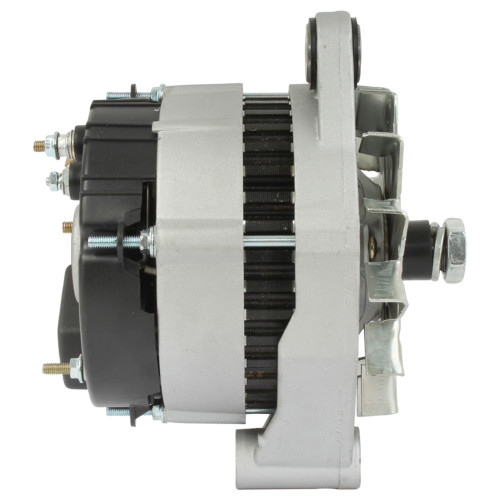

NEW Alternator for VOLVO PENTA Engines – Marine & OTH Applications; 400-40046, 820652, 822454, 827303, 827349, 847651, 849561, 849602, A13N142M, A13N152M, A13N36M; LESTER 12415

$189.99





Email
Categories: ,

Specifications

UNIT Alternator
VOLT 24
AMPS 30
REGULATOR CLOCK 1:00
MOUNT HOLE ID 1 8mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
POLARITY Negative
WARRANTY 1 Year
Includes Fan

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD APR0031, IA0746, MG130, V592777
EMP 4-5974
J&N ELECTRICAL PRODUCTS 400-40046
LESTER 12415
LETRIKA/ISKRA IA 0746
LUCAS ELECTRIC LRA02463
MAGNETON 9515781
MAHLE MG130
PARIS RHONE 100879, 181990, A13N143M, A13N152M, A13N36M
SIERRA MARINE 18-5974
VALEO 100879, 181990, 2100879, 2103570, 2181990, 2518064, 592777, A13N142M, A13N152M, A13N36M
VOLVO 820652, 822454, 827303, 827349, 847651, 849561, 849602





Applications

Part fit

MAKE MODEL ENGINE YEAR
Bukh DV20 20HP – 2cyl – Diesel
Bukh DV36 36HP – 3cyl – Diesel
Bukh DV36ME 36HP – 3cyl – Diesel
Bukh DV36SME 36HP – 3cyl – Diesel
DAF DD575 5.8L Engine
DAF DF615 6.2L Engine
DAF DT615 6.2L Engine
DAF DT615MY 6.2L Engine
DAF Various Models
Nanni 570 Marlin Engine
Nanni 570T Marlin Engine
Renault RC105D
Renault RC120D
Renault RC210DT DTS Single Bottom Moun
Renault RC215DV DTS Single Bottom Moun
Renault RC240DTS
Renault RC285DV
Renault RC320D
Renault RC355DV
Renault RC480DV Turbo Single Bottom Moun
Renault RC480DV Turbo
Renault RC480DV
Renault RC600DTV
Renault RC800DTV
Volvo Penta AD31 A B D L P X 4cyl 146ci 2.4L Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Volvo Penta AQ100 4-Cyl , Gas 1961, 1962, 1963
Volvo Penta AQ100 4cyl Gas 1961, 1962, 1963
Volvo Penta AQD19 4cyl Diesel 1964, 1965, 1966, 1967, 1968
Volvo Penta AQD19 4-Cyl Diesel 1964, 1965, 1966, 1967, 1968
Volvo Penta AQD27 6cyl Diesel 1963, 1964, 1965, 1966, 1967
Volvo Penta AQD27 6-Cyl Diesel 1963, 1964, 1965, 1966, 1967
Volvo Penta AQD29 A 6cyl Diesel 1967, 1968, 1969, 1970
Volvo Penta AQD29 6-Cyl Diesel 1967, 1968, 1969, 1970
Volvo Penta AQD29A 6-Cyl Diesel 1967, 1968, 1969, 1970
Volvo Penta AQD32A 6cyl Diesel 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta AQD32A 6-Cyl Diesel 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta AQD70B 6cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70B 6-Cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70BL 6cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70BL 6-Cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70C 6cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70C 6-Cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70D 6cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta AQD70D 6-Cyl Diesel 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
Volvo Penta D12-650 6cyl 740ci 12.1L Diesel 2006, 2007
Volvo Penta D12-715 6cyl 740ci 12.1L Diesel 2002, 2003, 2004
Volvo Penta D12C 6cyl 740ci 12.1L Diesel 1999, 2000, 2001, 2002, 2003, 2004
Volvo Penta D12D-MH 6cyl 740ci 12.1L Diesel 2005, 2006, 2007
Volvo Penta KAD32P 4cyl 146ci 2.4L Diesel 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Volvo Penta MB70B
Volvo Penta MD100 6cyl Diesel
Volvo Penta MD100 6-Cyl Diesel
Volvo Penta MD100A B 6cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta MD100A 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta MD100B 6cyl Diesel
Volvo Penta MD100B 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta MD120 6cyl Diesel
Volvo Penta MD120 6-Cyl Diesel
Volvo Penta MD120A 6cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Volvo Penta MD120A 6-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Volvo Penta MD19 4cyl Diesel 1964, 1965, 1966, 1967, 1968
Volvo Penta MD19 4-Cyl Diesel 1964, 1965, 1966, 1967, 1968
Volvo Penta MD27 6cyl Diesel
Volvo Penta MD27 6-Cyl Diesel
Volvo Penta MD29 A 6cyl Diesel
Volvo Penta MD29 6-Cyl Diesel
Volvo Penta MD29A 6-Cyl Diesel
Volvo Penta MD32 6cyl Diesel
Volvo Penta MD32A 6cyl Diesel 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta MD32A 6-Cyl Diesel 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
Volvo Penta MD42A 4cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Volvo Penta MD42A 4-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Volvo Penta MD42B 4cyl Diesel
Volvo Penta MD42B 4-Cyl Diesel
Volvo Penta MD50 6cyl Diesel
Volvo Penta MD50 6-Cyl Diesel
Volvo Penta MD50A 6cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971
Volvo Penta MD50A 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971
Volvo Penta MD70 6cyl 410ci 6.7L Diesel
Volvo Penta MD70 6700cc, 6.7L/410CI 6-Cyl Diesel
Volvo Penta MD70A 6cyl 410ci 6.7L Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta MD70A 6700cc, 6.7L/410CI 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta MD70B C 6cyl 410ci 6.7L Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta MD70B 6700cc, 6.7L/410CI 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta MD70C 6700cc, 6.7L/410CI 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TAMD102A D 6cyl 585ci 9.6L Diesel 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Volvo Penta TAMD103A 6cyl 585ci 9.6L Diesel 2000, 2001, 2002, 2003, 2004
Volvo Penta TAMD120 6cyl Diesel
Volvo Penta TAMD120 6-Cyl Diesel
Volvo Penta TAMD120A B 6cyl Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD120A 6-Cyl Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD120B 6-Cyl Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD121 C D 6cyl Diesel 1983, 1984, 1985, 1986, 1987, 1988
Volvo Penta TAMD122 A C D P 6cyl 732ci 12.0L Diesel 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Volvo Penta TAMD162 A B C 6cyl 984ci 16.1L Diesel 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Volvo Penta TAMD163 A P 6cyl 984ci 16.1L Diesel 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001
Volvo Penta TAMD165A C P 6cyl 984ci 16.1L Diesel 2002, 2003, 2004, 2005
Volvo Penta TAMD31A B D L M P S X 4cyl 146ci 2.4L Diesel 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Volvo Penta TAMD60 A B C 6cyl Diesel 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Volvo Penta TAMD61 A 6cyl Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
Volvo Penta TAMD62A 6cyl Diesel 1992, 1993, 1994
Volvo Penta TAMD70 6cyl Diesel
Volvo Penta TAMD70 6-Cyl Diesel
Volvo Penta TAMD70B C D 6cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD70B 6-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD70C 6-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD70D 6-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Volvo Penta TAMD70E 6cyl Diesel 1983, 1984, 1985, 1986, 1987
Volvo Penta TAMD71 A B 6cyl 410ci 6.7L Diesel 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Volvo Penta TAMD72 A P WJ 6cyl 410ci 6.7L Diesel 1991, 1992, 1993, 1994, 1995, 1996, 1997
Volvo Penta TAMD73P WJ 6cyl 411ci 6.7L Diesel 1997, 1998, 1999
Volvo Penta TAMD74A C L P 6cyl 444ci 7.3L Diesel 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Volvo Penta TAMD75P 6cyl 444ci 7.3L Diesel 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
Volvo Penta THAMD70 B C 6cyl Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
Volvo Penta THAMD70 6-Cyl Diesel 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Volvo Penta THAMD70B 6-Cyl Diesel 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Volvo Penta THAMD70C 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Volvo Penta TMD100A 6cyl Diesel
Volvo Penta TMD100A 6-Cyl Diesel
Volvo Penta TMD100B C 6cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TMD100B C 6cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Volvo Penta TMD100B 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TMD102A 6cyl 585ci 9.6L Diesel 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Volvo Penta TMD120A B 6cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta TMD120A 6-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta TMD120B 6-Cyl Diesel 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
Volvo Penta TMD121C 6cyl Diesel 1983, 1984, 1985, 1986, 1987, 1988
Volvo Penta TMD122A 6cyl 732ci 12.0L Diesel 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Volvo Penta TMD50A 6cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971
Volvo Penta TMD50A 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971
Volvo Penta TMD70A 6cyl 410ci 6.7L Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TMD70A 6700cc, 6.7L/410CI 6-Cyl Diesel 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TMD70B C 6cyl 410ci 6.7L Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TMD70B 6700cc, 6.7L/410CI 6-Cyl Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta TMD70C 6700cc, 6.7L/410CI 6-Cyl Diesel 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo EC130C Volvo TD40GD
Volvo EC150C Volvo TD40KE
Volvo EL70 Volvo TD45 1992, 1993, 1994, 1995
Volvo EL70C Volvo TD45KC
Volvo EL70C Volvo TD48GA
Volvo EW130C Volvo TD40GD
Volvo EW150C Volvo TD40KE
