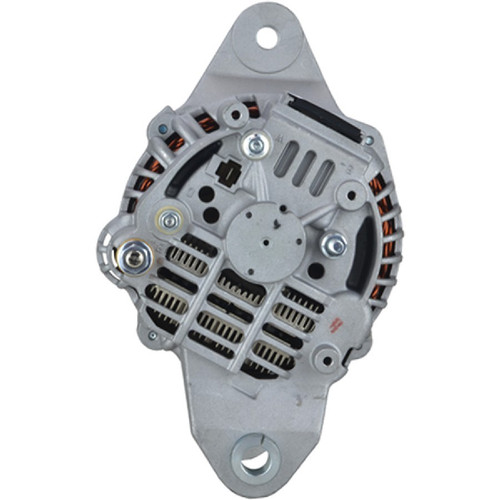

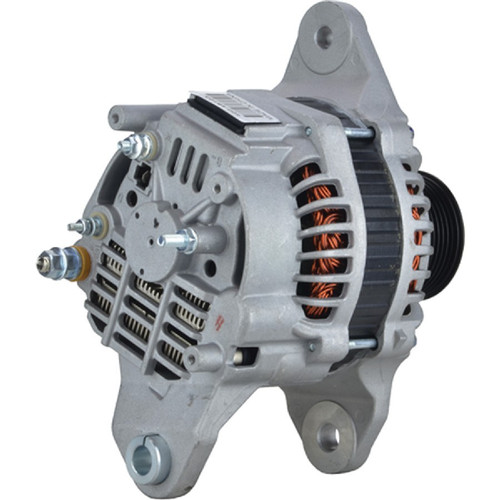

NEW Alternator for VOLVO PENTA Engines – Marine; 400-48103, 3803650, 384018, 874502; LESTER 12745
$129.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
115 |
| REGULATOR CLOCK |
1:00 |
| J180 HINGE LENGTH |
197.87 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
10.800mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
13.300mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.551″ |
| MOUNTING EAR THICKNESS |
14mm |
| MOUNTING EAR 2 THICKNESS |
0.551″ |
| MOUNTING EAR 2 THICKNESS |
14mm |
| MOUNTING EAR 3 THICKNESS |
0.827″ |
| MOUNTING EAR 3 THICKNESS |
21mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
D |
| TERMINAL 3 SIZE |
M4x0.7 |
| TERMINAL ID 4 |
W |
| TERMINAL 4 SIZE |
M5x0.8 |
| TERMINAL ID 5 |
S |
| TERMINAL 5 SIZE |
Spade |
| TERMINAL ID 6 |
B- |
| TERMINAL 6 SIZE |
M6x1.00 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
6 |
| GROOVE OD |
2.421″ |
| GROOVE OD |
61.500mm |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.598″ |
| PULLEY OUTER DIAMETER |
66mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-48103, AMT0247 |
| LESTER |
12745 |
| MITSUBISHI |
A003TR0091, A003TR0091ZC, A3TR0091 |
| VOLVO |
3803650, 384018, 874502 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Volvo Penta |
D1-13A B F |
2cyl 31ci 0.5L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
D1-20A B F |
3cyl 46.5ci 0.76L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
D1-30A B F |
3cyl 69ci 1.1L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
D2-40A B C F |
4cyl 92ci 1.5L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
D2-55A B C |
4cyl 134.2ci 2.2L Dsl |
2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta |
D2-75A |
4cyl 134.2ci 2.2L Dsl |
2003, 2004, 2005, 2006, 2007 |
| Volvo Penta |
D4-180 |
4cyl 226ci 3.7L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
D4-210 |
4cyl 226ci 3.7L Dsl |
2003, 2004, 2005 |
| Volvo Penta |
D4-225 |
4cyl 226ci 3.7L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
D4-260 |
4cyl 226ci 3.7L Dsl |
2003, 2004, 2005, 2006, 2007 |
| Volvo Penta |
D4-300 |
4cyl 226ci 3.7L Dsl |
2007 |
| Volvo Penta |
D6-280 |
6cyl 336ci 5.5L Dsl |
2003, 2004, 2005, 2006, 2007 |
| Volvo Penta |
D6-310 |
6cyl 336ci 5.5L Dsl |
2003, 2004, 2005, 2006, 2007 |
| Volvo Penta |
D6-330 |
6cyl 336ci 5.5L Dsl |
2007 |
| Volvo Penta |
D6-350 |
6cyl 336ci 5.5L Dsl |
2004, 2005, 2006, 2007 |
| Volvo Penta |
D6-370 |
6cyl 336ci 5.5L Dsl |
2004, 2005, 2006, 2007 |
| Volvo Penta |
D6-435 |
6cyl 336ci 5.5L Dsl |
2006, 2007 |
| Volvo Penta |
IPS350 |
4cyl 226ci 3.7L Dsl |
2006, 2007 |
| Volvo Penta |
IPS400 |
6cyl 336ci 5.5L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
IPS500 |
6cyl 336ci 5.5L Dsl |
2005, 2006, 2007 |
| Volvo Penta |
IPS600 |
6cyl 336ci 5.5L Dsl |
2006, 2007 |
