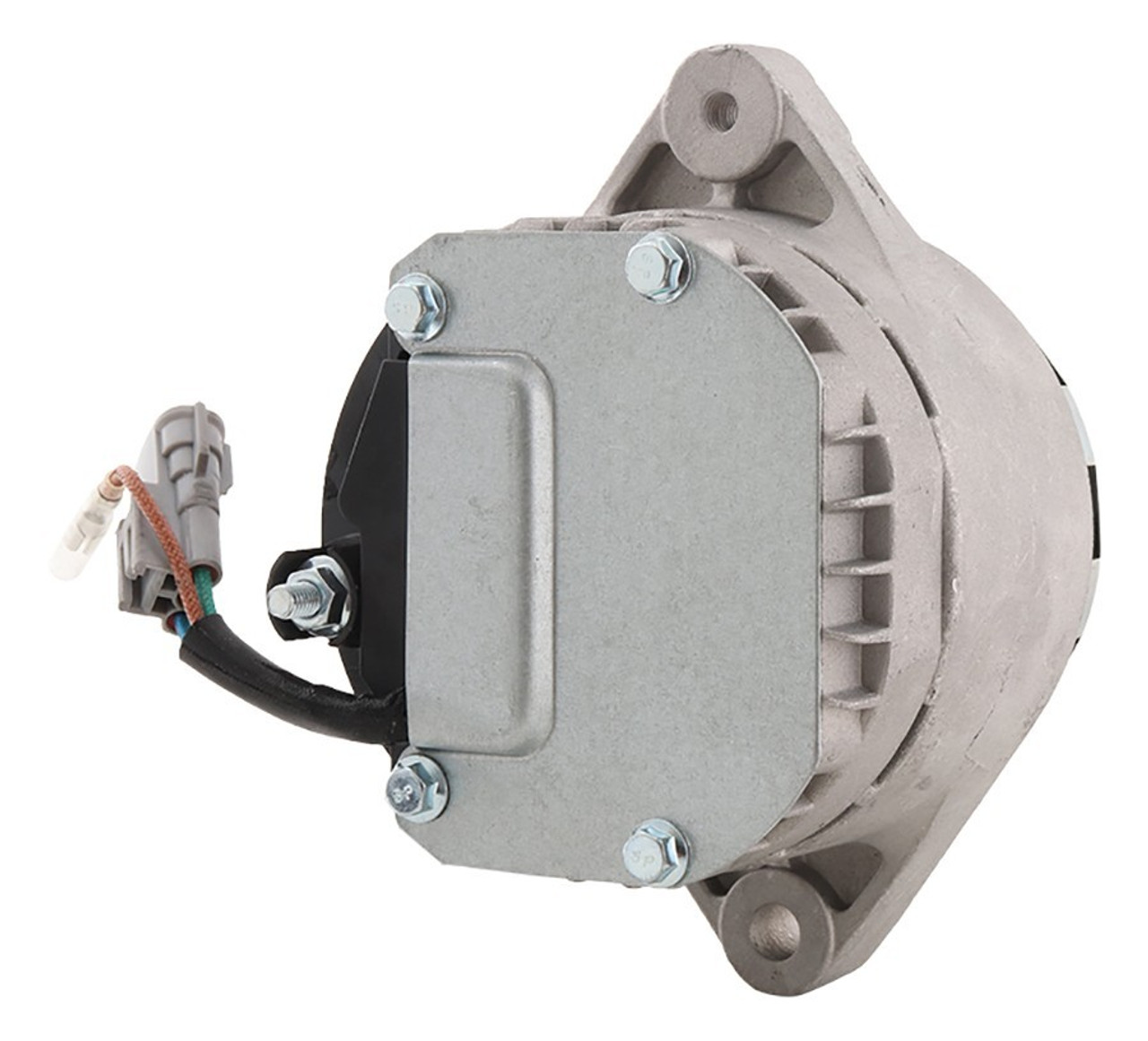

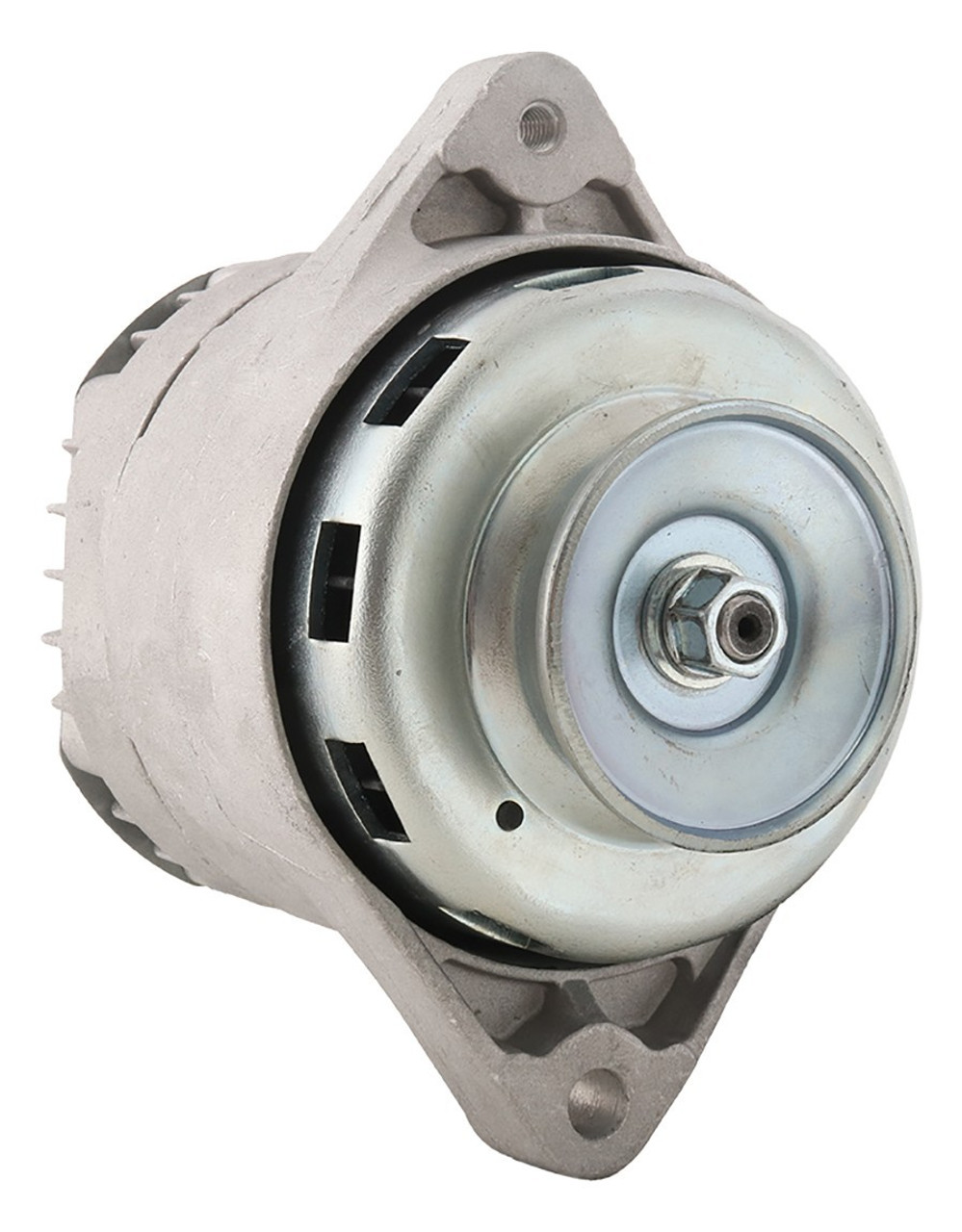

NEW Alternator for YANMAR D150 Application; 400-58020, GP3312, 119128-77200
$179.99
Specifications
| UNIT TYPE |
Alternator |
| PART TYPE |
Permanent Magnet |
| VOLT |
12 |
| AMPS |
40 |
| REGULATOR CLOCK |
9:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.630″ |
| MOUNTING EAR THICKNESS |
16mm |
| MOUNTING EAR 2 THICKNESS |
0.827″ |
| MOUNTING EAR 2 THICKNESS |
21mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
L |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
IG |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
W |
| TERMINAL 5 SIZE |
Spade |
| TERMINAL ID 6 |
R |
| TERMINAL 6 SIZE |
Female Bullet |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.563″ |
| PULLEY OUTER DIAMETER |
65.100mm |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
APM0015 |
| KOKUSAN DENKI |
GP3312 |
| YANMAR |
119128-77200 |
