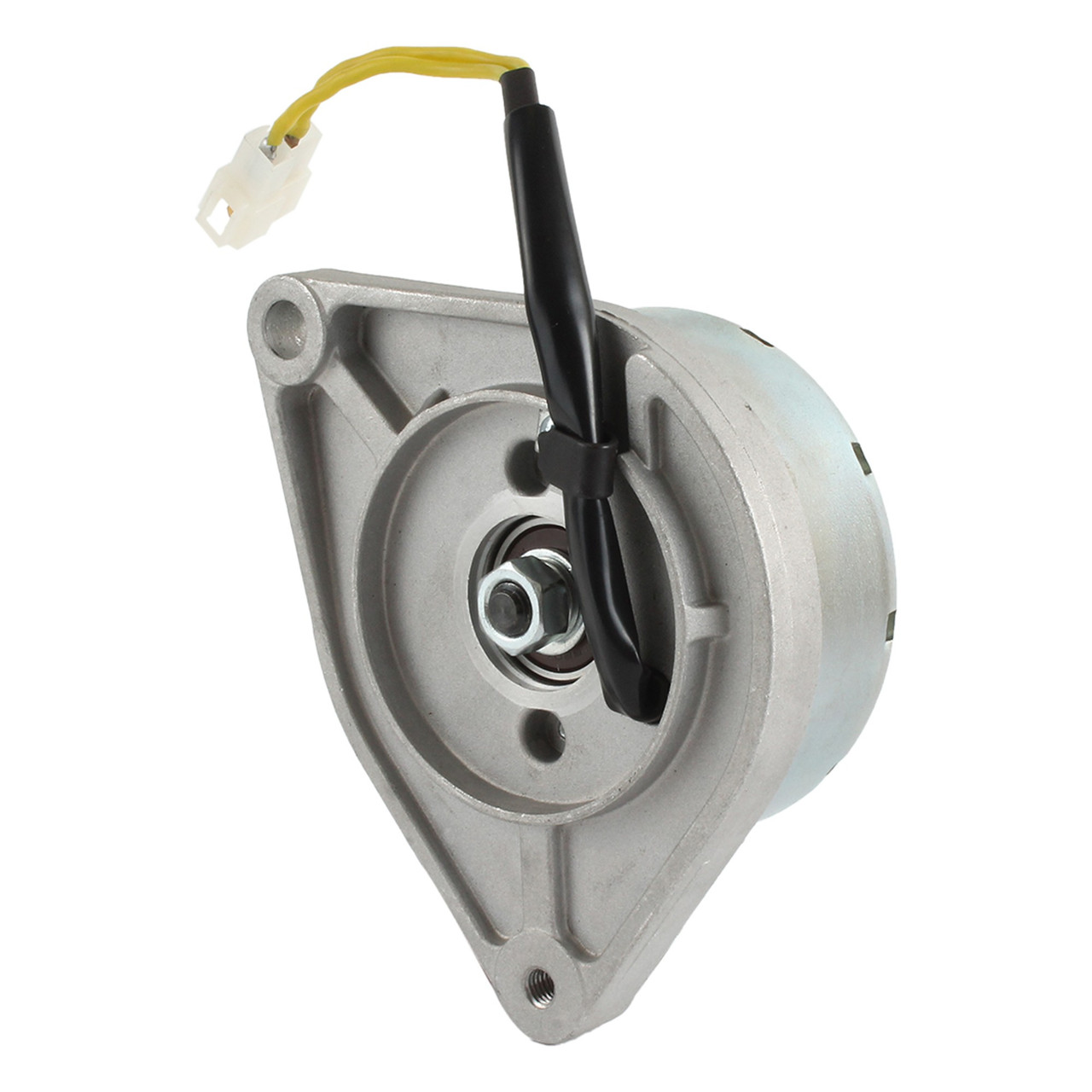

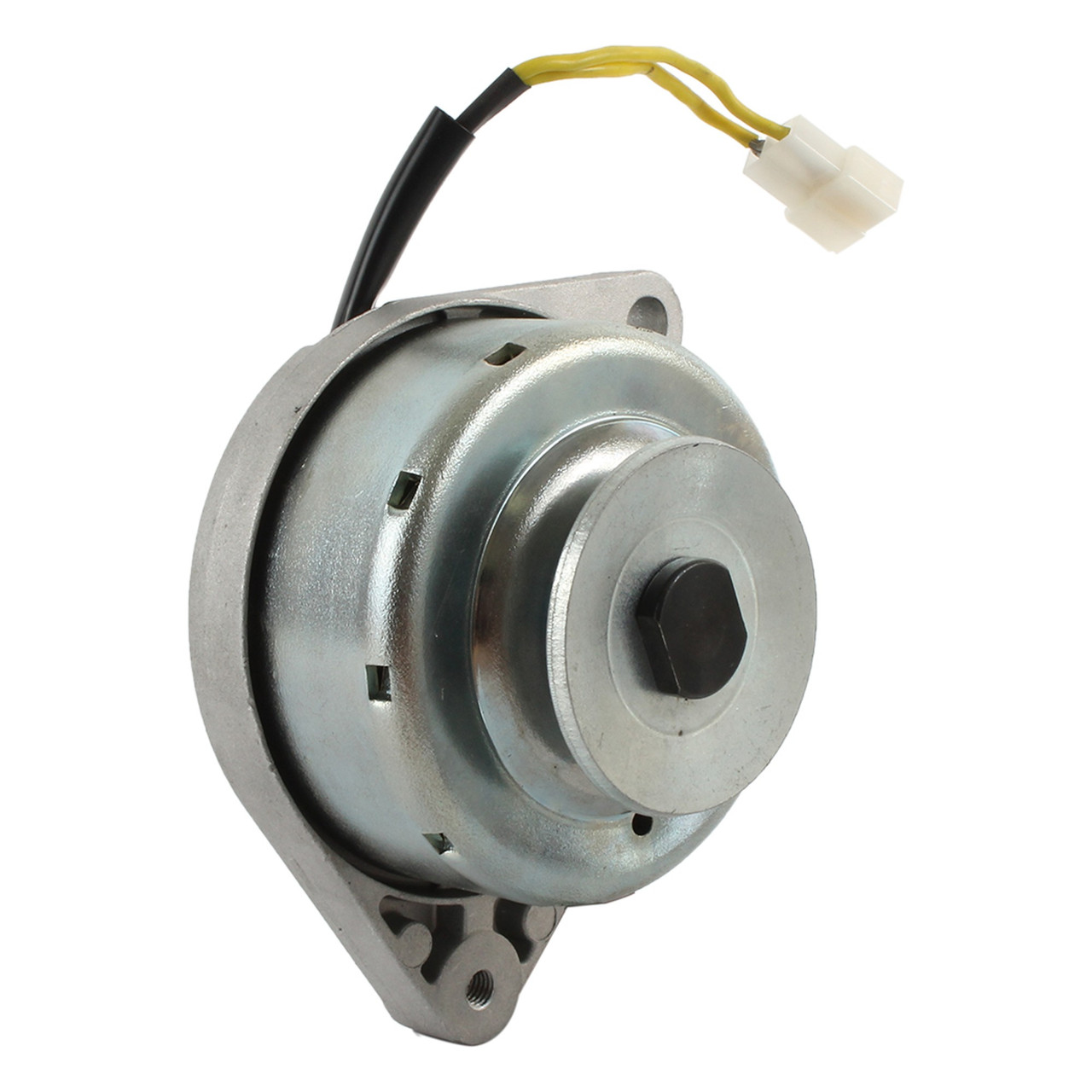

NEW Alternator for YANMAR Tractors; 400-58006, 121450-77200; LESTER 20670
$129.99
Add’l info: Permanent Magnet & “T”-Shaped Plug
Specifications
| UNIT TYPE | Alternator |
| PART TYPE | Permanent Magnet |
| VOLT | 12 |
| AMPS | 15 |
| MOUNT HOLE ID 1 | 11.100mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | M8x1.25 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 0.551″ |
| MOUNTING EAR THICKNESS | 14mm |
| MOUNTING EAR 2 THICKNESS | 0.650″ |
| MOUNTING EAR 2 THICKNESS | 16.500mm |
| REGULATOR LOCATION | External |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.559″ |
| PULLEY OUTER DIAMETER | 65mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | APM0013 |
| J&N ELECTRICAL PRODUCTS | 400-58006 |
| LESTER | 20670 |
| YANMAR | 121450-77200 |
