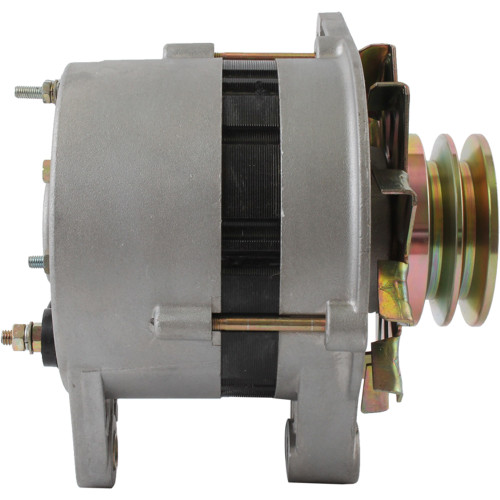

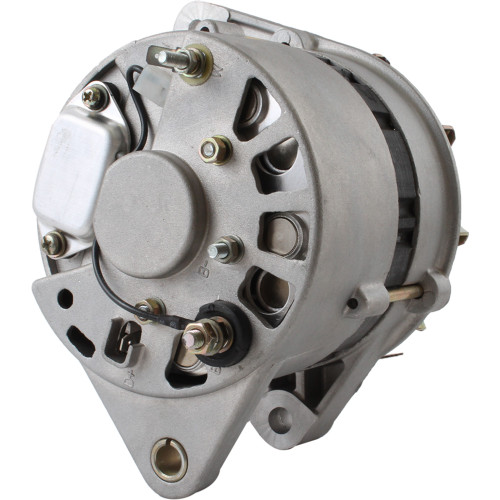

NEW Alternator for ZETOR 3321, 4321, 5321, 6321 Tractors & OTH Models; 400-42003, LRA01654, [MAGNETON 443-113-516-670, 443-113-516-673, 9516673]; LESTER 12554
$239.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 70 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.300mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.378″ |
| MOUNTING EAR THICKNESS | 9.600mm |
| MOUNTING EAR 2 THICKNESS | 1.035″ |
| MOUNTING EAR 2 THICKNESS | 26.300mm |
| MOUNTING EAR 3 THICKNESS | 0.594″ |
| MOUNTING EAR 3 THICKNESS | 15.100mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | B- |
| TERMINAL 4 SIZE | M5x0.8 |
| TERMINAL ID 5 | W |
| TERMINAL 5 SIZE | M5x0.8 Spade Combo |
| POLARITY | Negative |
| NUMBER OF GROOVES | 2 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.902″ |
| PULLEY OUTER DIAMETER | 73.700mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-42003 |
| LESTER | 12554 |
| LUCAS ELECTRIC | LRA01654 |
| MAGNETON | 443-113-516-670, 443-113-516-673, 9516673 |
Applications
Part fit
| MAKE | MODEL | YEAR |
| ZETOR | 3321 | All |
| ZETOR | 3341 | All |
| ZETOR | 4321 | All |
| ZETOR | 4341 | All |
| ZETOR | 5321 | All |
| ZETOR | 5341 | All |
| ZETOR | 6321 | All |
| ZETOR | 6341 | All |
| ZETOR | 7320 | All |
| ZETOR | 7321 | All |
| ZETOR | 7341 | All |
| ZETOR | 7520 | All |
| ZETOR | 8520 | All |
| ZETOR | 8540 | All |
| ZETOR | 8621 | All |
| ZETOR | 8641 | All |
| ZETOR | 9520 | All |
| ZETOR | 9540 | All |
| ZETOR | 9641 | All |
| ZETOR | 10540 | All |
| ZETOR | 10541 | All |
