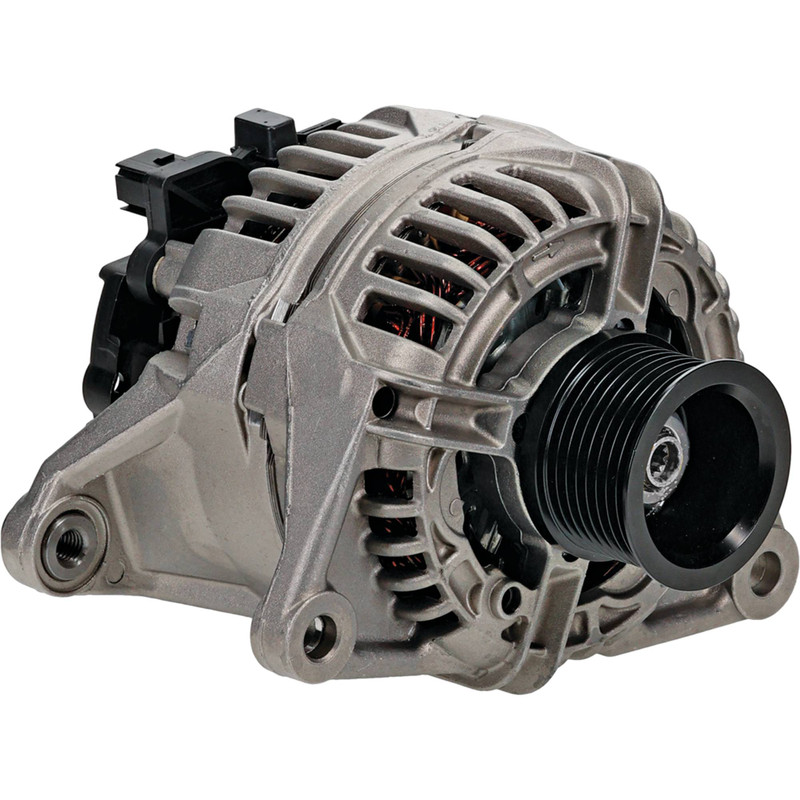

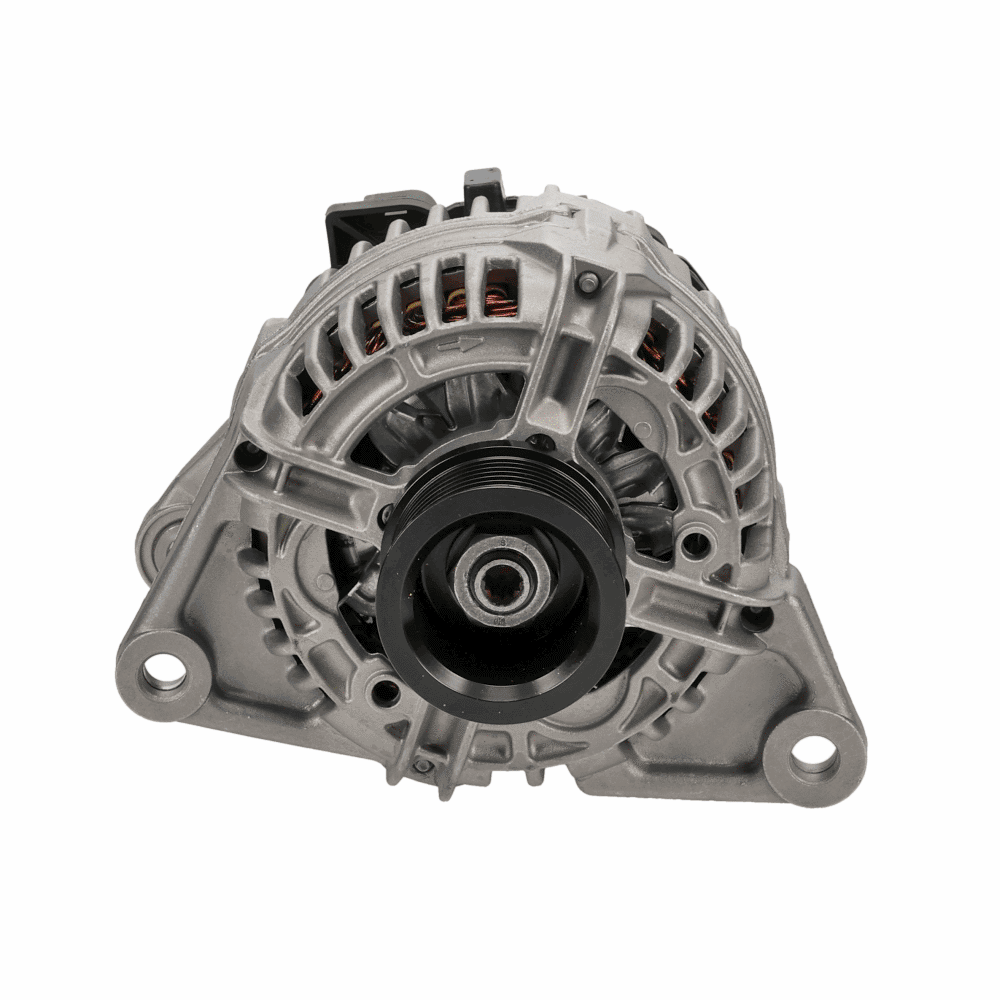

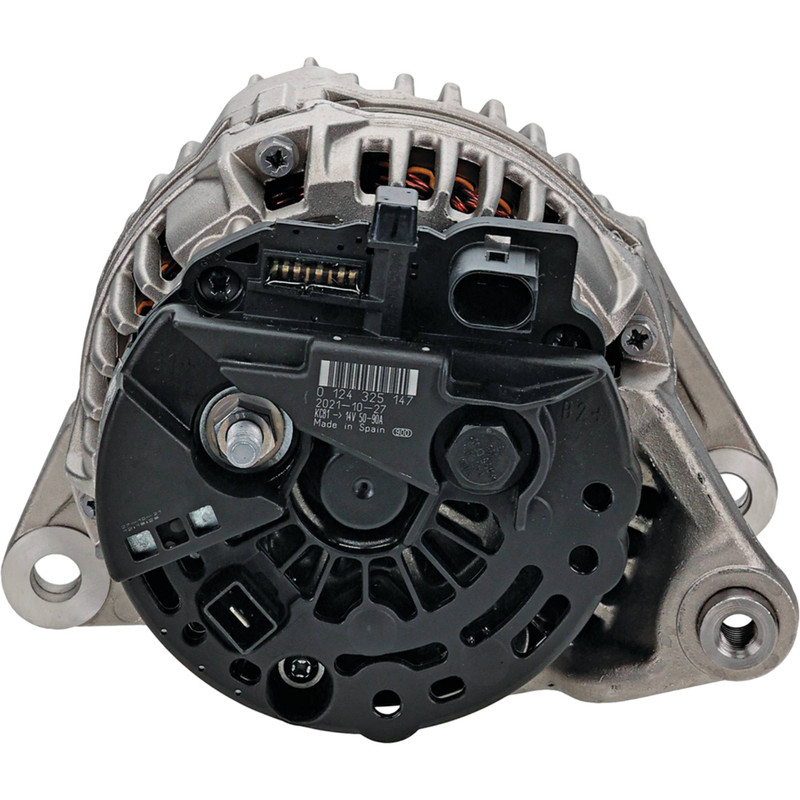

New BOSCH Alternator for IVECO & VM MOTORI Applications; BOS-1986A00727, 0124325052, 2855975, C8520046A, 504225814; LESTER 20021
$469.61 $530.66
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Bosch KCB1 |
| VOLT | 12 |
| AMPS | 90 |
| ALT MOUNTING FOOT ID | 10.500mm |
| ALT MOUNTING FOOT TYPE | Unthreaded |
| FAN LOCATION | Internal |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 1 | 11mm |
| MOUNT HOLE ID 3 | M10x1.50 |
| NUMBER OF GROOVES | 8 |
| POLARITY | Negative |
| PULLEY OUTER DIAMETER | 2.323″ |
| PULLEY OUTER DIAMETER | 59mm |
| PULLEY TYPE | Solid |
| REGULATOR CLOCK | 3:00 |
| REGULATOR LOCATION | Internal |
| ROTATION DIRECTION | Clockwise |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 2 | B+ |
| Short Description | CLAAS NECTIS 217, 227, 237, 247, 257, 267 3.4L 3cyl 2005-ON IVECO ENGINES NEF 3363ccm 3cyl IVECO ENGINES NEF 4485ccm 4cylNEW HOLLAND LM5040, LM5060, LM5080 TELEHANDLERS 4.5L w/IVECO NEF 2007-ON REDROCK TH280S TELEHANDLER w/IVECO ENGINE 8-GROOVE PULLEY 55mm OD |
