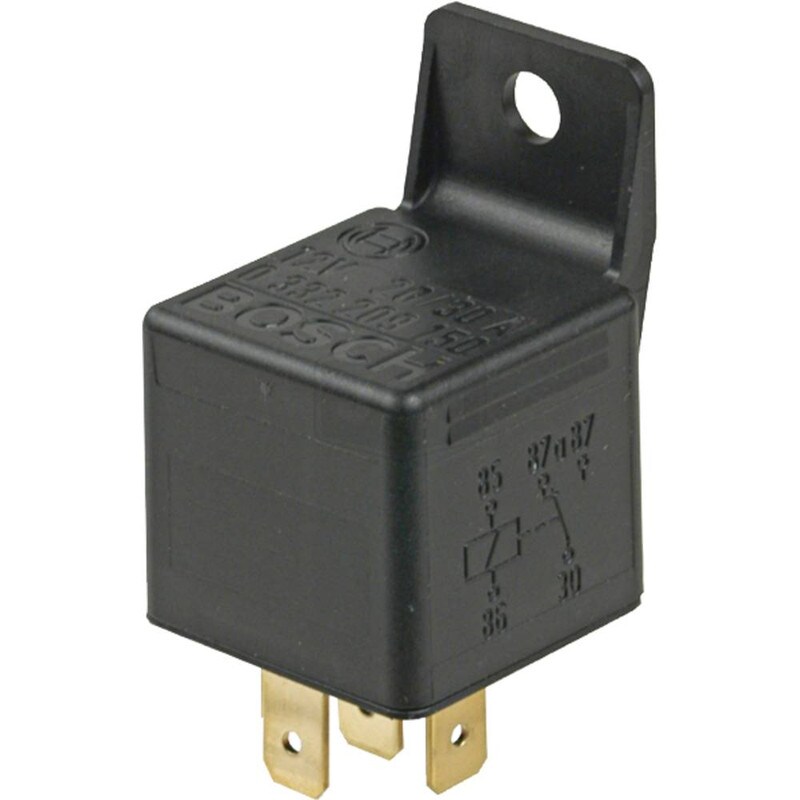

New BOSCH Mini Relay; BOS-0332209150, 0-332-100-020, 0-332-200-009, 0-332-200-013, 0-332-204-125, 0-332-204-150, 0-332-204-172, 0-332-204-801, 0-332-209-150
$34.73 $39.24
Specifications
| Description: | Micro Relay |
| Volt | 12 |
| Amps | 30 |
| Terminal ID 2 | 30 |
| Terminal 2 Size | 6.3mm x 0.8mm |
| Terminal ID 3 | 85 |
| Terminal 3 Size | 6.3mm x 0.8mm |
| Terminal ID 4 | 86 |
| Terminal 4 Size | 6.3mm x 0.8mm |
| Terminal ID 5 | 87 |
| Terminal 5 Size | 6.3mm x 0.8mm |
| Terminal ID 6 | 87a |
| Terminal 6 Size | 6.3mm x 0.8mm |
| Cap Composition | Plastic |
| Contact Config | Single Pole, Double Throw (SPDT) |
| Duty Cycle | Continuous |
| Includes | Change Over Contacts, Mounting Bracket |
| No of Terminals | 5 |
| Plated Terminals | FALSE |
| Resistance Type | Coil Only |
| Resistance | 85 ohms |
