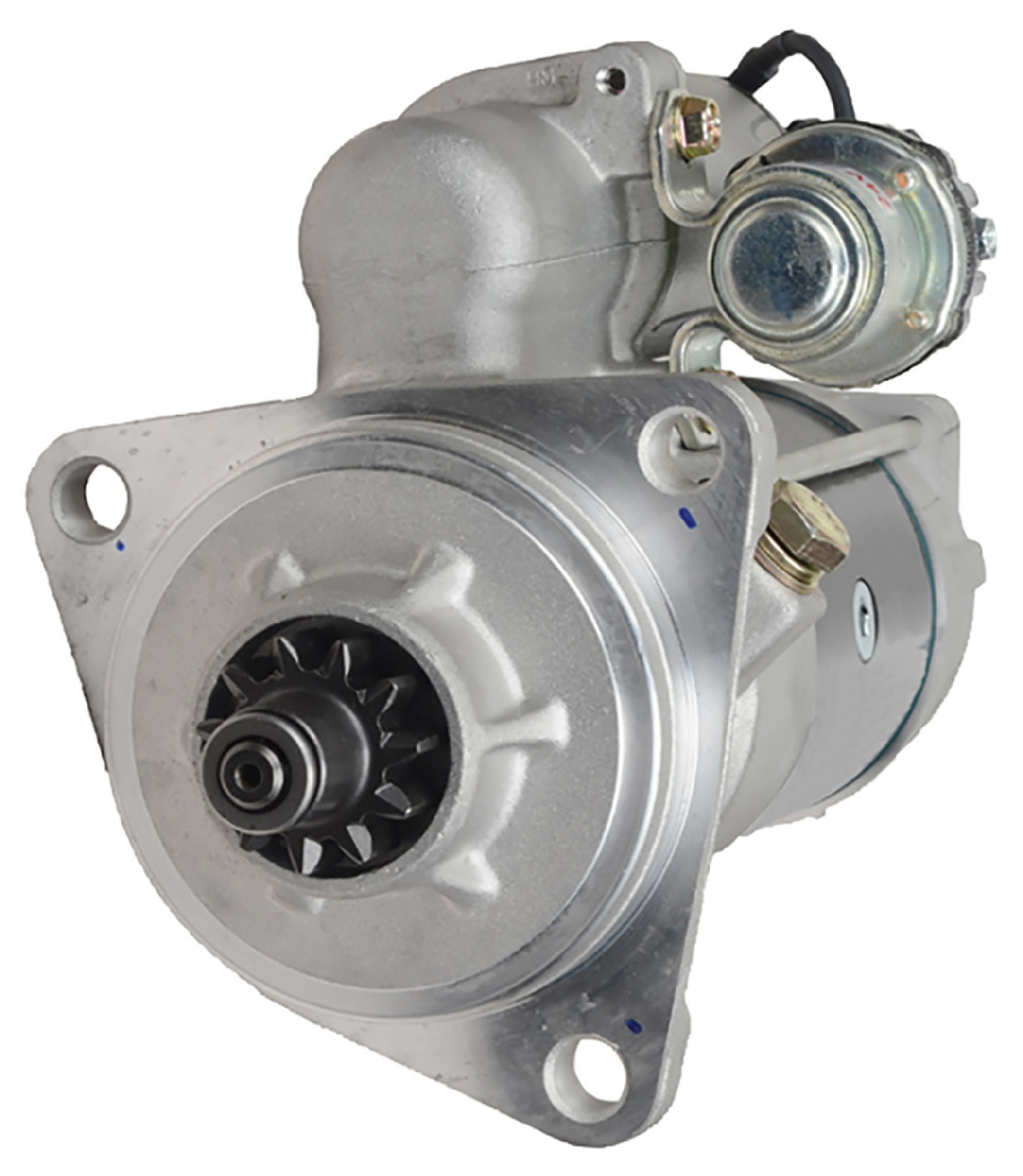

NEW Daewoo 24V Style Starter for DOOSAN ENGINES; 410-58035, 300516-00042, 65.26201-7075, 65.26201-7075A; LESTER 30575
$359.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Offset Gear Reduction (OSGR) |
| VOLT |
24 |
| POWER |
4.500 kw |
| HP |
6.035 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
11 |
| GEAR OD |
1.579″ |
| GEAR OD |
40.100mm |
| LENGTH |
233 mm |
| LENGTH |
9.173″ |
| MOUNT HOLE ID 1 |
13mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
13mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
110.700mm |
| MOUNTING EAR DISTANCE 1 |
4.358″ |
| MOUNTING EAR DISTANCE 2 |
134.700mm |
| MOUNTING EAR DISTANCE 2 |
5.303″ |
| MOUNTING EAR DISTANCE 3 |
110.700mm |
| MOUNTING EAR DISTANCE 3 |
4.358″ |
| REGISTRY OD |
104.700mm |
| REGISTRY OD |
4.122″ |
| WARRANTY |
1 Year |
|
M10 B+ Stud, M8 Motor Stud, M5 Threaded S Tab On Control Relay |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
410-58035 |
| DAEWOO |
300516-00042 |
| DELCO |
8200222, 8200776 |
| DOOSAN |
65.26201-7075, 65.26201-7075A |
| LESTER |
30575 |
