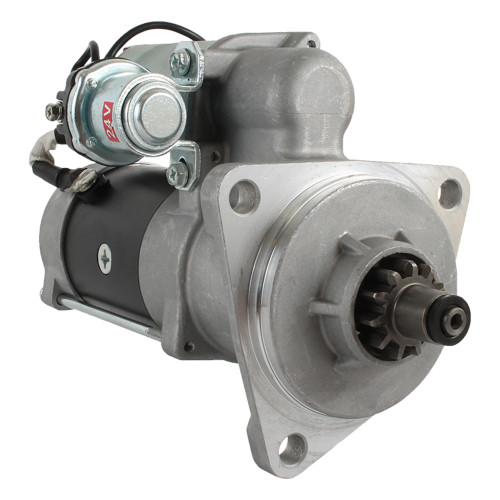

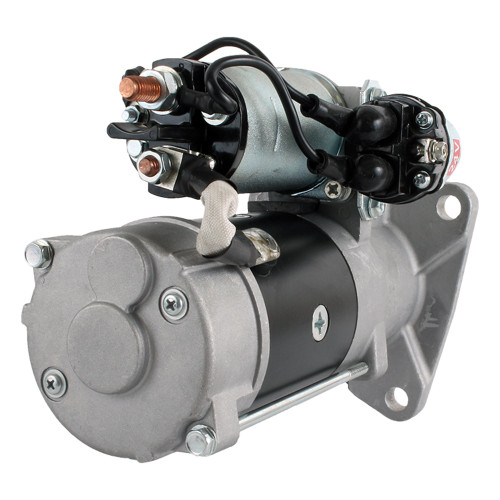

NEW Delco 29MT Style Starter for DOOSAN ENGINES; 410-12576, 8200475; LESTER 19982
$299.99
Specifications
| UNIT TYPE |
Starter |
| ELECTRIC STARTER TYPE |
Planetary Gear Reduction (PLGR) |
| AMILY |
Delco 29MT |
| VOLT |
24 |
| POWER |
4 kw |
| HP |
5.364 |
| ROTATION DIRECTION |
Clockwise |
| NUMBER OF TEETH |
11 |
| GEAR OD |
1.587″ |
| GEAR OD |
40.300mm |
| LENGTH |
243 mm |
| LENGTH |
9.567″ |
| MOUNT HOLE ID 1 |
12.800mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
12.800mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR DISTANCE 1 |
110mm |
| MOUNTING EAR DISTANCE 1 |
4.331″ |
| MOUNTING EAR DISTANCE 2 |
110mm |
| MOUNTING EAR DISTANCE 2 |
4.331″ |
| MOUNTING EAR DISTANCE 3 |
110mm |
| MOUNTING EAR DISTANCE 3 |
4.331″ |
| REGISTRY OD |
105mm |
| REGISTRY OD |
4.134″ |
| WARRANTY |
1 Year |
|
IMS Relay Included |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
SDR0414 |
| DELCO |
8200475 |
| LESTER |
19982 |
