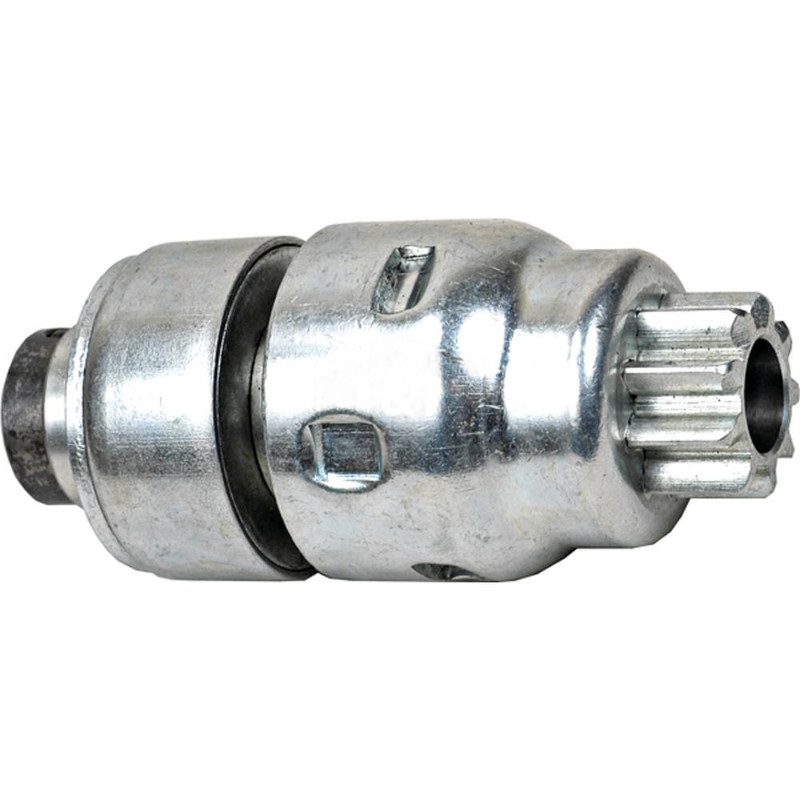

NEW Drive Assembly for DELCO & PRESTOLITE Starters; 220-12297, 1878079, 1912766, 1913587, 1922266, 1925059, 1925285, 1938637, 1964293, 1971147, D2012, D2023, EBB-19, EBB-19A, EBB20, EBB26A, EBB-30
$64.99
Available on backorder
Specifications
| UNIT TYPE | Starter Drive Assembly |
| QUALITY TYPE | Standard |
| ROTATION DIRECTION | Clockwise |
| ID | 0.630″ |
| ID | 16 mm |
| GEAR OD | 1.167″ |
| GEAR OD | 29.641mm |
| LENGTH | 117 mm |
| LENGTH | 4.606″ |
| NUMBER OF TEETH | 9 |
| DRIVE TYPE | Rubber Folo Thru |
| WET CLUTCH SEAL | FALSE |
| Large Barrel Folo Thru, Keyway & Set Screw |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| AMERICAN MOTORS CORP | 119597, 808399, 925520 |
| ARROWHEAD | SPL5010, SPL5037 |
| CASEIH | 125509R91, A40272, A42078 |
| DELCO | 1878079, 1912766, 1913587, 1922266, 1925059, 1925285, 1938637, 1964293, 1971147, D2012, D2023 |
| FACET DRIVES | 480027, 480330, 480331, 480337, 480347, 480358, A1915, A2089, A2889, A2975, A3072, A3274, A3278, A3281, A-3281, A3346, A3359, A-3359, A3365, A3412, A3413, A3448, A3492, A3673, A3674 |
| FORD | FAB11350A, FAJ11001B, FAN11001A, FAP11001A, FAS11001A, FAV11001A, SD6315, SDX6315 |
| INGERSOLL RAND | 3BM-299-8 |
| J&N ELECTRICAL PRODUCTS | 220-12013, 220-12013R, 220-12036, 220-12036R, 220-12136, 220-12136R, 220-12139, 220-12139R, 220-12297, 220-12301, 220-12301R, 220-12334, 220-12438 |
| LEECE NEVILLE | MO290-4565 |
| MASSEY FERGUSON | 1024-579-M91 |
| PRESTOLITE | 59-116, 59-180, 59-21, 59-34, 63-15, 63-16, EBA-45, EBB-113A, EBB129A, EBB-129A, EBB19, EBB-19, EBB-19A, EBB20, EBB26A, EBB-30 |
