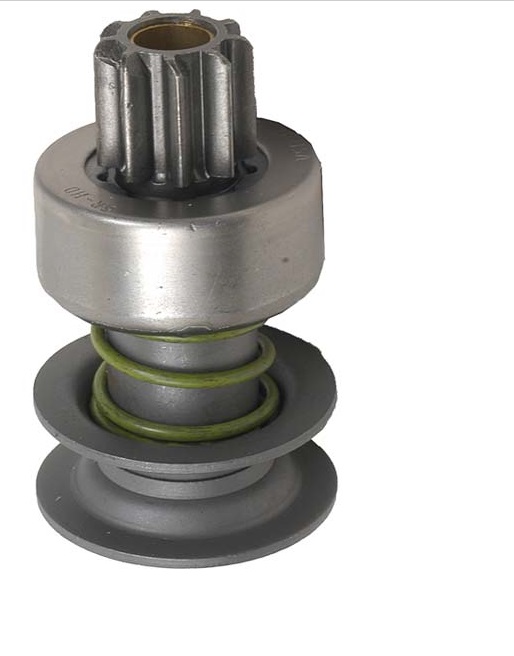

NEW Drive Assembly for Delco 5MT, 8MT, 10MT & SD300 Starters; 220-12007, 3184250, 3188794, 3205021, 3208850, 8130940, 948612, 1024-210-M91
$32.99
Specifications
| UNIT TYPE | Drive Assembly |
| QUALITY TYPE | Premium (Brazil) |
| ROTATION DIRECTION | Clockwise |
| ID | 0.472″ |
| ID | 12 mm |
| GEAR OD | 1″ |
| GEAR OD | 25.400mm |
| LENGTH | 3.181″ |
| LENGTH | 80.800 mm |
| NUMBER OF TEETH | 9 |
| NUMBER OF SPLINES | 3 |
| SPLINES TYPE | Spiral |
| DRIVE TYPE | Roller |
| WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ALLIS CHALMERS | 1151152A, 1306456-3 |
| AMERICAN MOTORS CORP | 3184250, 3188794, 3205021, 3208850, 8130940, 948612 |
| ARROWHEAD | 11A-D213, 11R-DE213, 3-213, 4-213, SDR5112, SDR5129, ZN0020, ZN1184 |
| CHRYSLER MOTORS | DR1902, DR-1902, DR1905, DR-1905 |
| DELCO | 10456422, 10470757, 10498859, 1875687, 1887353, 1892182, 1935827, 1945842, 1954842, 1954867, 1965538, 1965723, 1965923, 1974352, D2008, D2014, D2020, D2041, D2049, D2051 |
| FACET DRIVES | 480053, 480104, 480110, 480302, 480426, 480461, 5-0020, E480461 |
| FORD | 8130940, D8HZ-11350-A, SD231, SD310, SDG231 |
| J&N | 220-12007, 220-12007R, 220-12087, 220-12278, 220-12455, 220-12456 |
| LEECE NEVILLE | 04207, MO290-4207 |
| MASSEY FERGUSON | 1024-210-M91 |
| PRESTOLITE | 59-144, EBB-94 |
| ZEN S.A. | 0020, 1.01.0020.0, 1184 |
