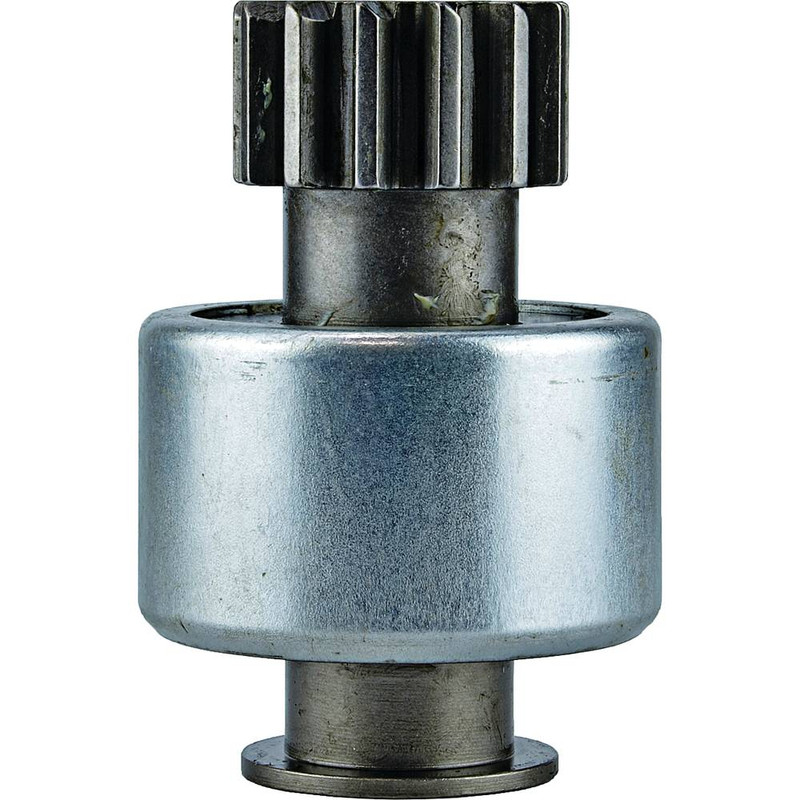

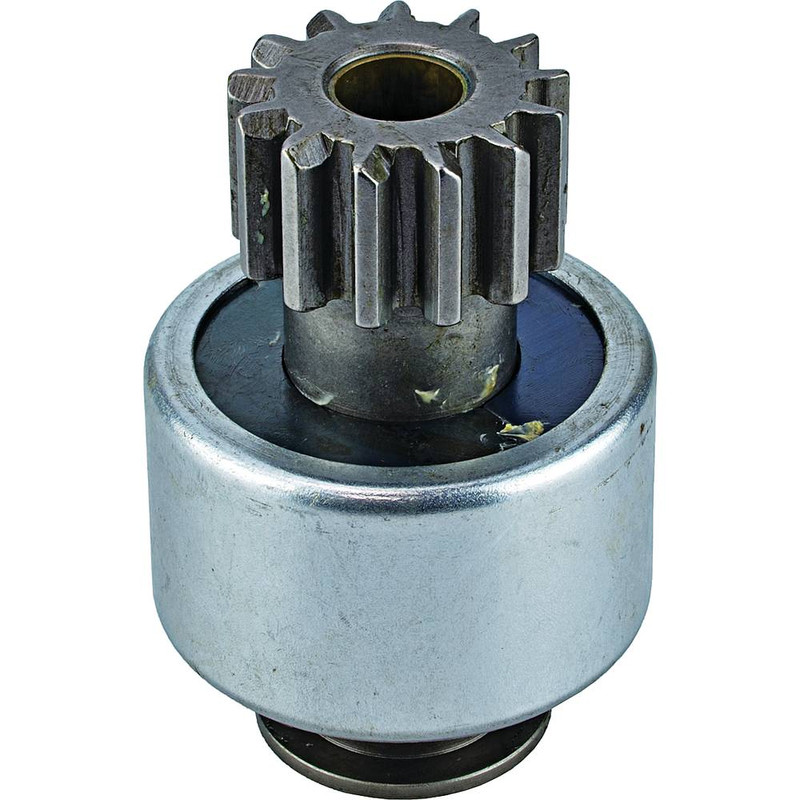

January 26, 2023NEW Drive Assembly for DENSO Starter; 220-52094, 028300-9980, 128300-014, 128300-0140, RE522853
$159.99
Specifications
UNIT TYPE | Starter Drive Assembly |
ROTATION DIRECTION | Clockwise |
ID | 0.673″ |
ID | 17.100 mm |
GEAR OD | 1.803″ |
GEAR OD | 45.800mm |
LENGTH | 107.500 mm |
LENGTH | 4.232″ |
NUMBER OF TEETH | 13 |
NUMBER OF SPLINES | 16 |
SPLINES TYPE | Spiral |
DRIVE TYPE | Roller |
WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | SND5078 |
DENSO | 028300-9980, 128300-014, 128300-0140 |
JOHN DEERE | RE522853 |
