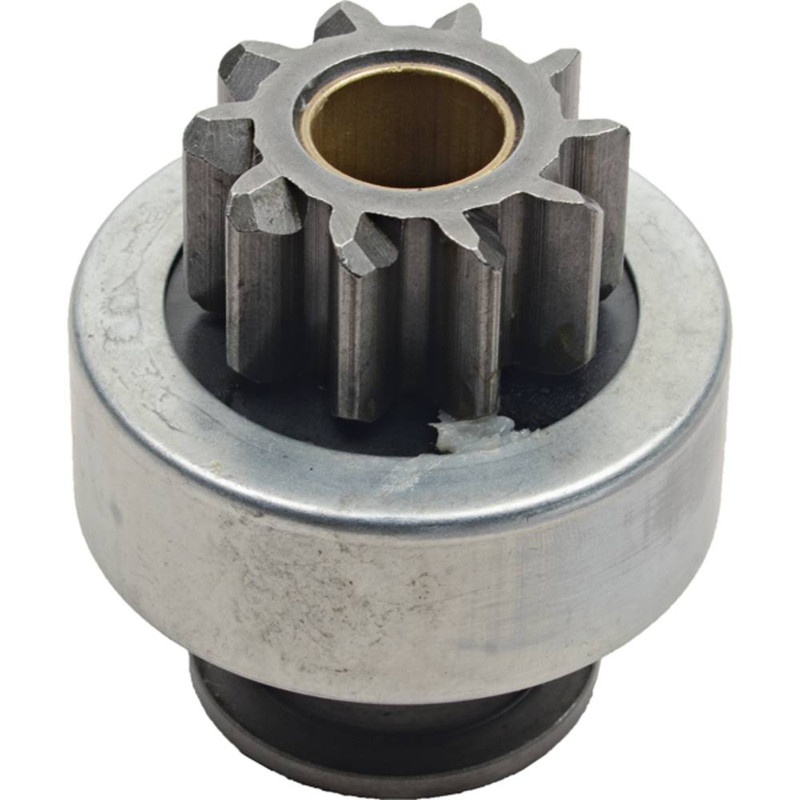

NEW Drive for Lucas M50 Starters on Ford Applications; 220-30043, 54243783, 54246738, 54246896, 54247187, TMB115
$44.99
Specifications
| UNIT TYPE | Drive Assembly |
| CRITICAL NOTE | For Use With Armatures Having A 17 Degree Helix |
| QUALITY TYPE | Standard |
| ROTATION DIRECTION | Clockwise |
| ID | 0.669″ |
| ID | 17 mm |
| GEAR OD | 1.575″ |
| GEAR OD | 40mm |
| LENGTH | 2.756″ |
| LENGTH | 70 mm |
| NUMBER OF TEETH | 10 |
| NUMBER OF SPLINES | 12 |
| SPLINES TYPE | Spiral |
| DRIVE TYPE | Roller |
| WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 11-LU642, 4-642, SLU5005, ZN0096 |
| CASEIH | K964214 |
| FACET DRIVES | 10330, 5-0096 |
| FORD | 703F-11K003-AA, C0NN11350A, D1NN-11350-A, D2NN-11350-A |
| FORD/NEW HOLLAND | 501448 |
| J&N | 220-30001, 220-30043 |
| LUCAS ELECTRIC | 54243783, 54246738, 54246896, 54247187, TMB115 |
| ZEN S.A. | 0096, 1.01.0096.0 |
