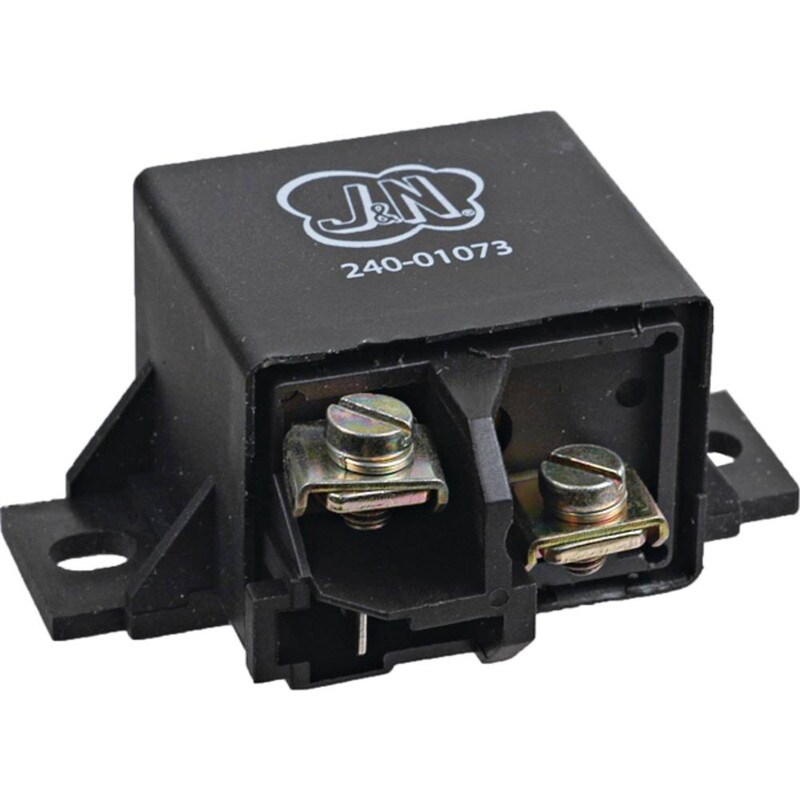

NEW HD Power Relay; 240-01073, 0332002150, 0332002150315, 0332002150BLK, 332002168
$39.99 $45.19
4 Term HD Relay
Specifications
| Description: | Power Relay |
| Voltage: | 12 |
| Amps: | 75 |

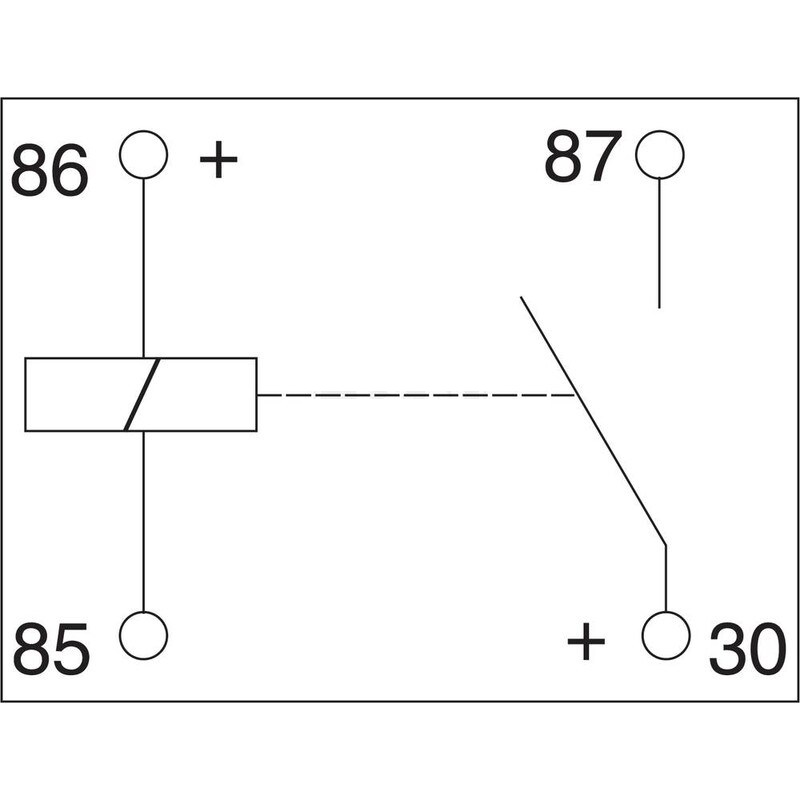

| 30 Terminal: | M5-0.8 |
| 85 Terminal: | 6.3mm x 0.8mm |
| 86 Terminal: | 6.3mm x 0.8mm |
| 87 Terminal: | M5-0.8 |
| Cap Composition: | Plastic |
| Changeover Contacts?: | No |
| Contact Config: | SPST |
| Dbl. Make Contacts?: | No |
| Duty Cycle: | Continuous |
| Number of Terminals: | 4 |
| Plated Terminals: | No |
| Resistance Type: | Coil Only |
| Resistance Ohms: | 80 |
| Notes: | Normally Open, incl mounting bracket |
