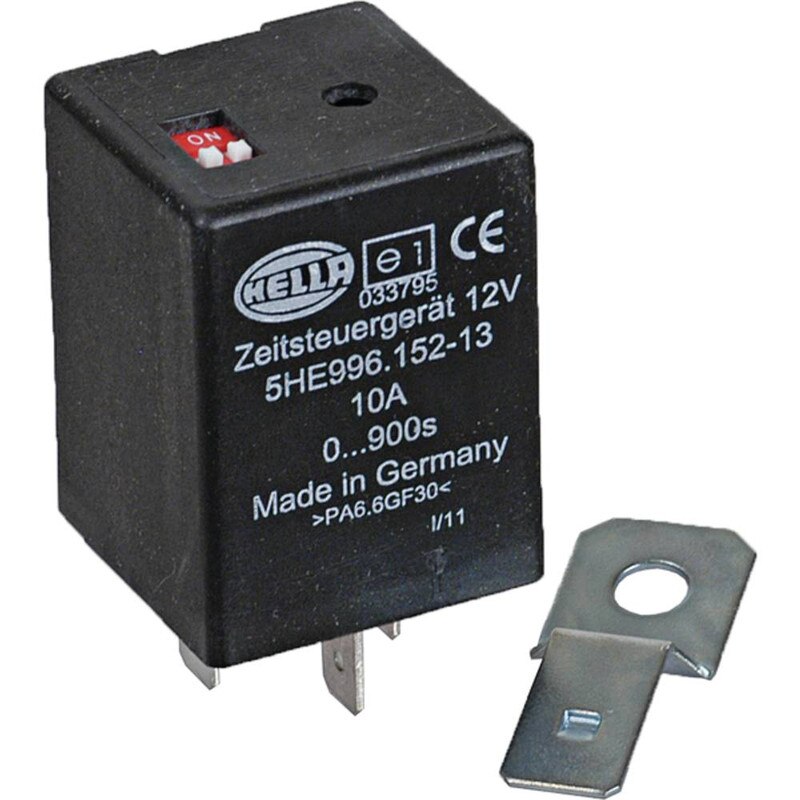

New HELLA Time Delay Relay; HLA-996152131, 5HE996.152-13, 5HE996-152-131, 996152027, 996152131

Name: New HELLA Time Delay Relay; HLA-996152131, 5HE996.152-13, 5HE996-152-131, 996152027, 996152131
Brand: Hella
SKU: 12772
Price: 126.94 CAD
Availability: InStock

$126.94

TIMER-CONTROL-12V-5P

Category: Starter Relay Brand: Hella

Add'l Notes

Delay on Release
Adjustable Range from 0-900 Seconds

Specifications

Description:	Time Delay Relay
OEM(s):	Hella
Voltage:	12
Amps:	10
30 Terminal:	6.3mm x 0.8mm
15 Terminal:	6.3mm x 0.8mm
31 Terminal:	6.3mm x 0.8mm
87 Terminal:	6.3mm x 0.8mm
87a Terminal:	6.3mm x 0.8mm
Cap Composition:	Plastic
Changeover Contacts?:	Yes
Contact Config:	SPDT
Dbl. Make Contacts?:	No
Duty Cycle:	Continuous
Includes Mounting Bracket?:	Yes
Number of Terminals:	5
Plated Terminals:	No
Resistance Type:	Coil Only

Manufacturer Name	Manufacturer Part #
Arrowhead	996152131
Hella	5HE996.152-13, 5HE996-152-131, 996152027, 996152131
Mercedes	221-906-66-00
Volvo	15223967
