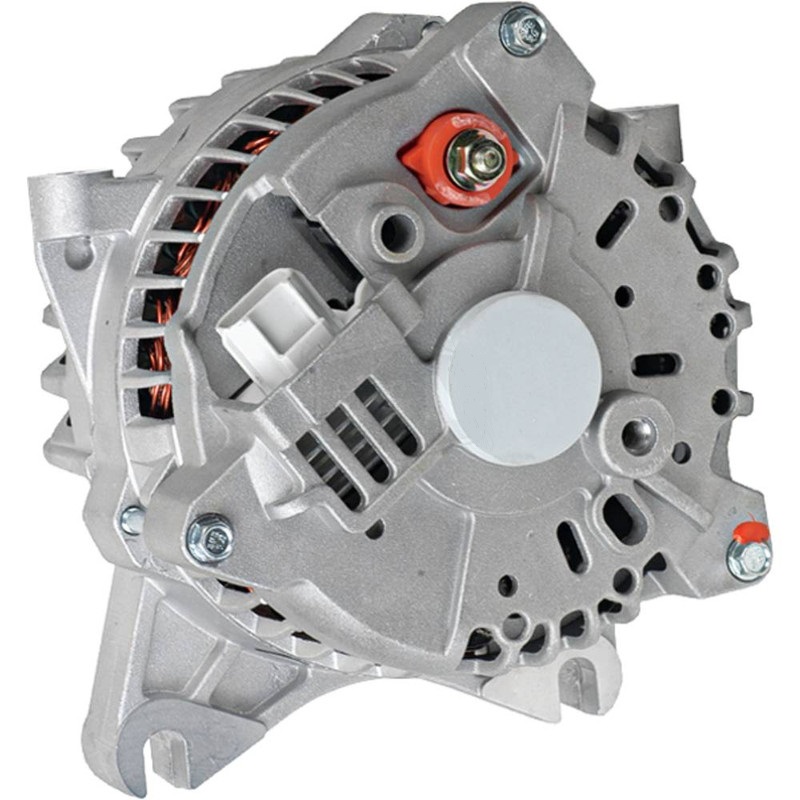

New HIGH OUTPUT Alternator for FORD, MERCURY & LINCOLN Applications; APS-5138P, 11026HO, 5138P, AL7589N, AL7589X, 400-14055; LESTER 8315
$659.99
SEARCH: 6G 12V 135A Alt
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Ford 6G |
| VOLT | 12 |
| AMPS | 250 |
| REGULATOR CLOCK | 9:00 |
| MOUNT HOLE ID 1 | M6x1.00 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M6x1.00 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 10mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | 10mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| ALT MOUNTING FOOT ID | 9mm |
| ALT MOUNTING FOOT TYPE | Slotted |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |

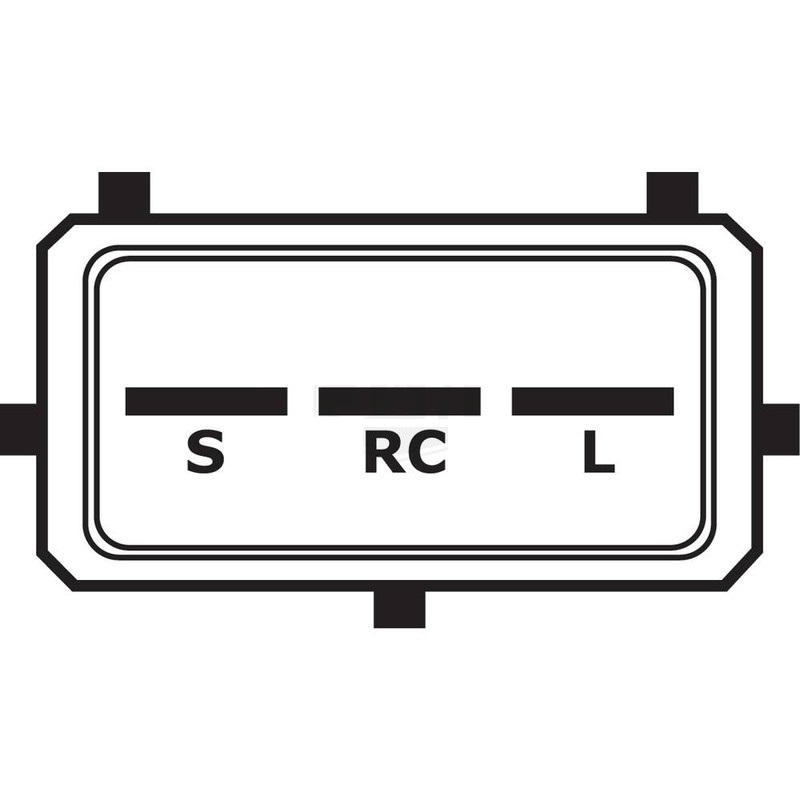

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | S |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | RC |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| ADD’L INFO | 140A at Idle, OE Compatible |
