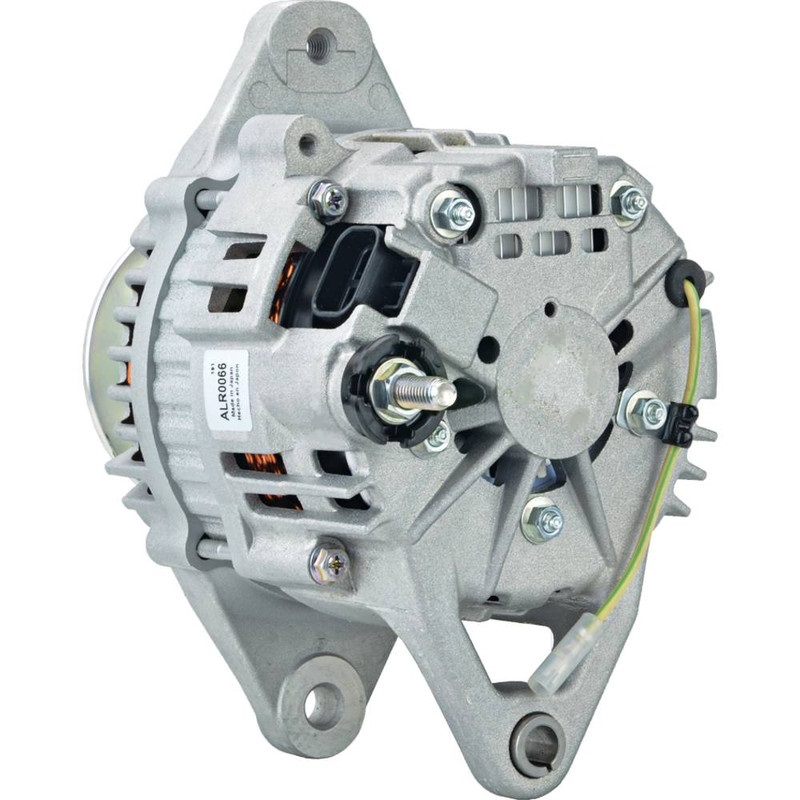

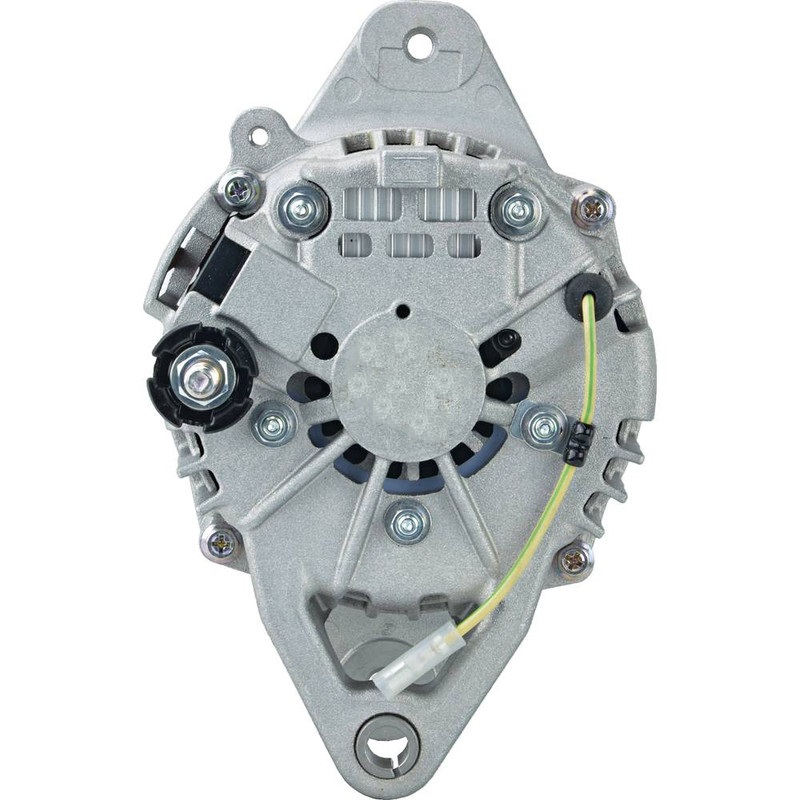

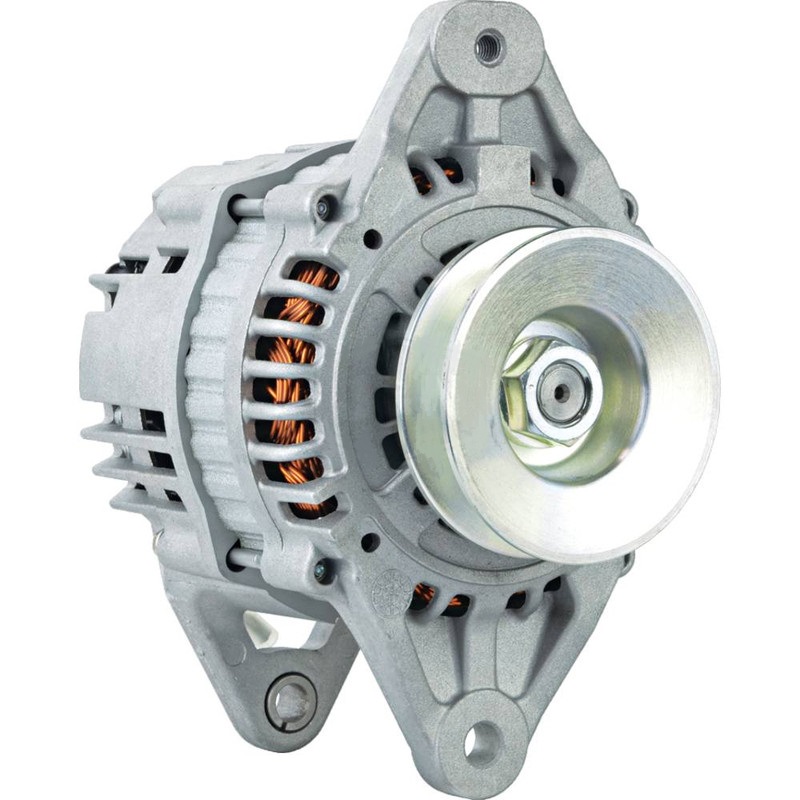

New HITACHI Alternator for KOMATSU WB140, WB150, WB98A & OTH Industrial Applications; ALR0066, LR180-7, 123910-77210
$689.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
80 |
| REGULATOR CLOCK |
10:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.300mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.508″ |
| MOUNTING EAR THICKNESS |
12.900mm |
| MOUNTING EAR 2 THICKNESS |
0.512″ |
| MOUNTING EAR 2 THICKNESS |
13mm |
| MOUNTING EAR 3 THICKNESS |
0.512″ |
| MOUNTING EAR 3 THICKNESS |
13mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
L |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
S |
| TERMINAL 4 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
3.228″ |
| PULLEY OUTER DIAMETER |
82mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
HIT-ALR0066 |
| HITACHI |
ALR0066, LR180-763 |
| J&N ELECTRICAL PRODUCTS |
400-44101 |
| YANMAR |
123910-77210 |
Applications
| Make |
Model |
Engine |
Years |
| Komatsu |
WB140-2 |
Komatsu S4D106 |
1999 – 2004 |
| Komatsu |
WB140-2N |
Komatsu S4D106 |
2000 – 2007 |
| Komatsu |
WB140PS-2 |
Komatsu S4D106 |
1999 – 2007 |
| Komatsu |
WB150-2 |
Komatsu S4D106 |
1999 – 2004 |
| Komatsu |
WB150-2N |
Komatsu S4D106 |
2003 – 2008 |
| Komatsu |
WB150AWS-2 |
Komatsu S4D106 |
2002 – 2006 |
| Komatsu |
WB150AWS-2N |
Komatsu S4D106 |
2003 – 2010 |
| Komatsu |
WB150PS-2 |
Komatsu S4D106 |
1999 – 2004 |
| Komatsu |
WB150PS-2N |
Komatsu S4D106 |
2004 – 2007 |
| Komatsu |
WB150WSC-2 |
Komatsu S4D106 |
2002 – 2006 |
| Komatsu |
WB91R-2 |
Komatsu S4D106 |
1999 – 2006 |
| Komatsu |
WB93R-2 |
Komatsu S4D106 |
1999 – 2006 |
| Komatsu |
WB97R-2 |
Komatsu S4D106 |
1999 – 2005 |
| Komatsu |
WB97S-2 |
Komatsu S4D106 |
1999 – 2005 |
| Komatsu |
WB98A-2 |
Komatsu S4D106 |
1999 – 2005 |
| Takeuchi |
TB175 |
Yanmar 4TNV98 |
2007 – 2011 |
