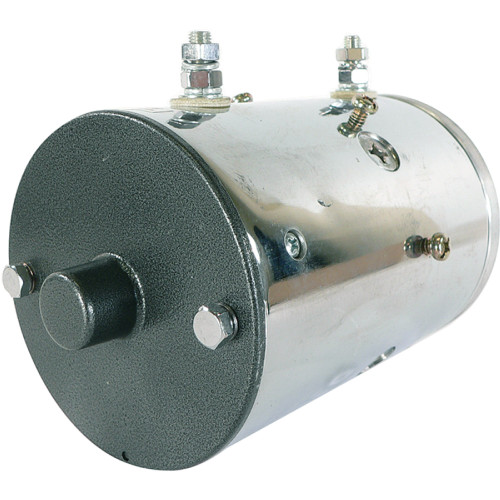

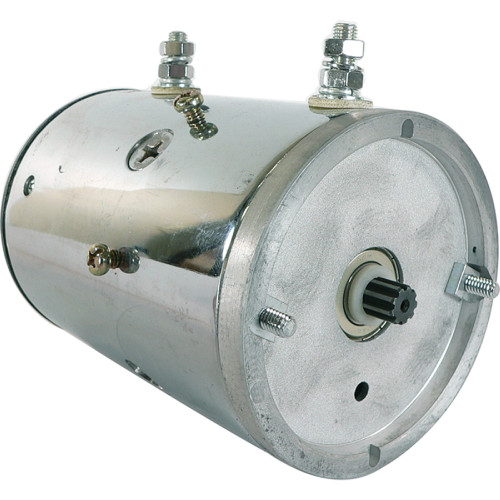

NEW Hyd. Motor for Fenner Fluid Power Pumps, SPX, Pro Hopper Hydraulic Applications; 430-22140, LFS0014, W-9799C W-9799LC
$219.99
Specifications
| UNIT TYPE | Pump Motor |
| ROTATION DIRECTION | Clockwise |
| OD | 113.800 mm |
| OD | 4.480″ |
| SHAFT OD | 0.476″ |
| SHAFT OD | 12.100mm |
| LENGTH | 189.500 mm |
| LENGTH | 7.461″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| SHAFT | 9 Splines |
| CURRENT TYPE | DC |
| NUMBER OF FIELDS | 4 |
| FIELD TYPE | Series |
| ADD’L INFO | Insulated Ground, Chrome Plated Field Case, Capable of Very High Armature RPM |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LFS0014 |
| WESTERN MOTORS | W-9799C W-9799LC |
