New MAHLE Hyd. Motor for HESSELMAN, WALTCO LEVEL LIFT Applications; MAH-MM277, 430-29012, 1.216.394, AMJ5756, IM 0173, [MAHLE 11.216.394, AMJ5756, IM0173]; LESTER 10790
September 11, 2022
New MAHLE Hyd. Motor for HUSTER, J.S. BARNES & MONARCH Hydraulic Applications; MAH-MM106, 430-22036, 0136350011, 19024710, 220-0355, 220-0525, 220-0870, [MAHLE11.212.108, AMJ5667, IM0159, MM106]; LESTER 10759
September 11, 2022

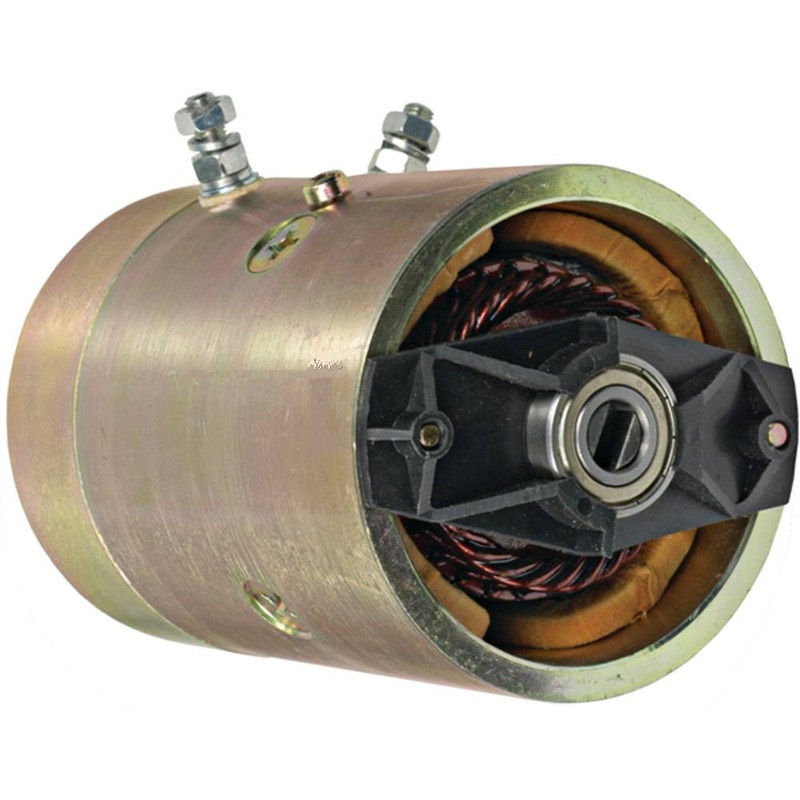

NEW Hyd. Motor for HUSTER, J.S. BARNES & MONARCH Hydraulic Applications; 430-22036, 2201124, 11.212.108, AMJ5667, IM 0159, [MAHLE 11.212.108, AMJ5667, IM0159, MM106]; LESTER 10759
$164.99
Search: MAHLE Motor
Specifications
| UNIT TYPE | Hydraulic Motor |
| VOLT | 12 |
| POWER | 2 kw |
| HP | 2.682 |
| ROTATION DIRECTION | Counter Clockwise |
| OD | 114.500 mm |
| OD | 4.508″ |
| SHAFT OD | 0.591″ |
| SHAFT OD | 15mm |
| LENGTH | 180 mm |
| LENGTH | 7.087″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| SHAFT | 6mm Slot |
| CURRENT TYPE | DC |
| WARRANTY | 1 Year |
| ADD’L INFO | Double Ball Bearing Type, Thru Bolts at 3 and 9. |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 11.212.108, LMN0009, MM106 |
| BOSCH | 0136350011, 0-136-350-011 |
| HALDEX-BARNES | 2201124 |
| J&N ELECTRICAL PRODUCTS | 430-22036, 430-29001 |
| LESTER | 10759 |
| LETRIKA/ISKRA | 11.212.108, AMJ5667, IM 0159 |
| MAHLE | 11.212.108, AMJ5667, IM0159, MM106 |
