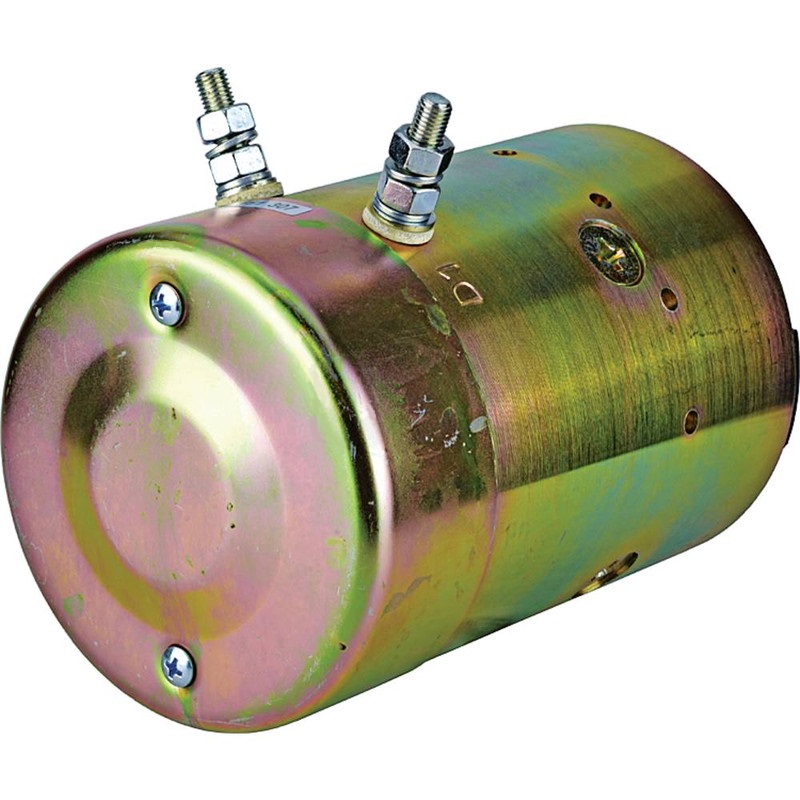

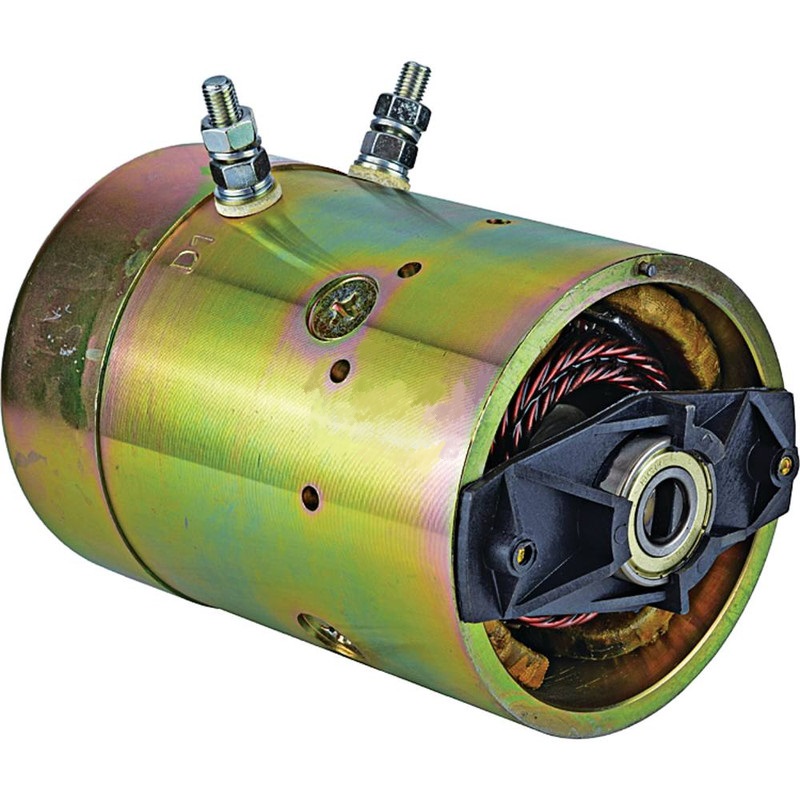

NEW Hydraulic Motor for HALDEX-BARNES Applications; 430-01011, 220-0976, 11.216.206, AMJ4750, IM 0137, MUF6102W; LESTER 10793
$199.99
Specifications
| UNIT TYPE |
Fire Truck Pump Motor |
| CRITICAL NOTE |
Does Not Include Solenoid |
| CURRENT TYPE |
DC |
| VOLT |
12 |
| POWER |
2 kw |
| HP |
2.682 |
| ROTATION DIRECTION |
Clockwise |
| OD |
152.400 mm |
| OD |
6″ |
| SHAFT OD |
0.622″ |
| SHAFT OD |
15.800mm |
| LENGTH |
226.800 mm |
| LENGTH |
8.929″ |
| TERMINAL 2 SIZE |
5/16-18 |
| SHAFT |
Keyway & 6mm Pin Hole |
| WARRANTY |
1 Year |
| UNIT TYPE |
Hydraulic Motor |
| CURRENT TYPE |
DC |
| VOLT |
24 |
| ROTATION DIRECTION |
Counter Clockwise |
| OD |
112.500 mm |
| OD |
4.429″ |
| SHAFT OD |
0.591″ |
| SHAFT OD |
15mm |
| LENGTH |
178.300 mm |
| LENGTH |
7.020″ |
| TERMINAL 2 SIZE |
5/16-24 |
| TERMINAL 3 SIZE |
5/16-24 |
| SHAFT |
6.5mm Slot |
| WARRANTY |
1 Year |
|
Insulated Ground |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
11.216.206, LPL0069, MM131 |
| HALDEX-BARNES |
220-0976 |
| J&N ELECTRICAL PRODUCTS |
430-01011, 430-29011 |
| LESTER |
10793 |
| LETRIKA/ISKRA |
11.216.206, AMJ4750, IM 0137 |
| MAHLE |
MM131 |
| PRESTOLITE |
MUF6102W |
