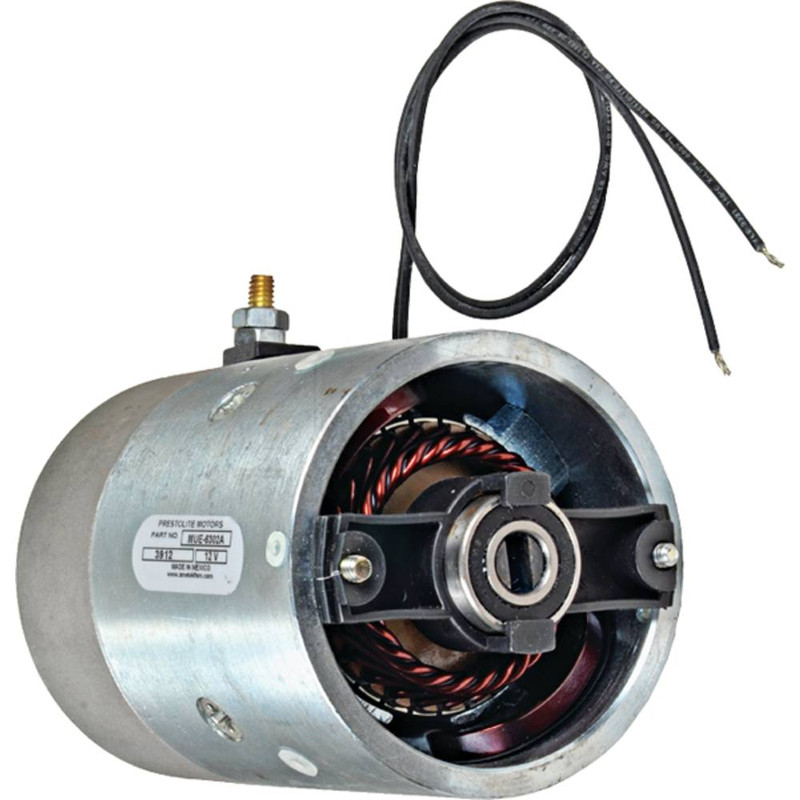

NEW Hydraulic Motor for MONARCH/BUCHER Applications; PRL-MUE6302A, 08045, MUE6302A, 10863N
$269.99 $305.09
Add’l Info: Thermal Protection Circuit, Double Ball Bearing
Specifications
| UNIT TYPE | Hydraulic Motor |
| CURRENT TYPE | DC |
| NUMBER OF FIELDS | 4 |
| FIELD TYPE | Series |
| VOLT | 12 |
| POWER | 2.540 kw |
| HP | 3.406 |
| LENGTH | 179.400 mm |
| LENGTH | 7.063″ |
| OD | 114.300 mm |
| OD | 4.500″ |
| ROTATION DIRECTION | Counter Clockwise |
| SHAFT | Slotted |
| SHAFT OD | 0.591″ |
| SHAFT OD | 15mm |
| TERMINAL 2 SIZE | 5/16-18 |
