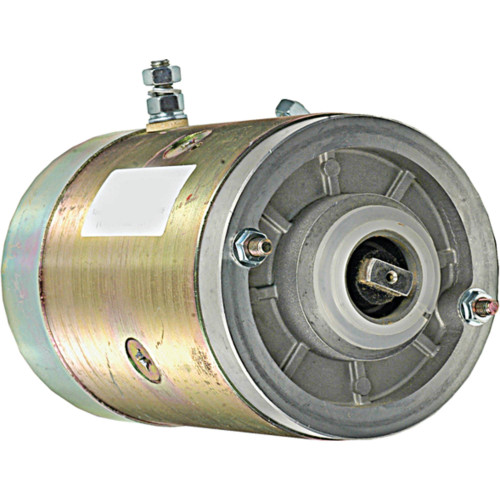

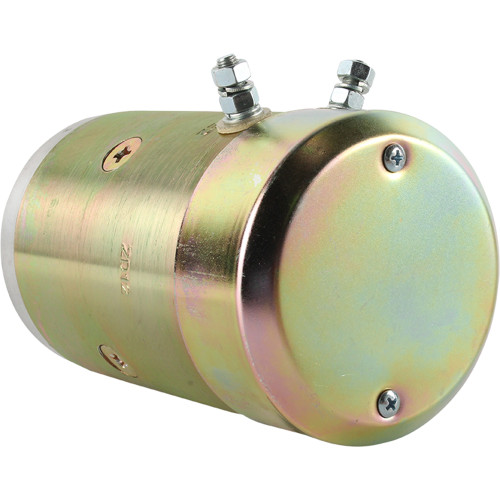

NEW Hydraulic Motor for OIL SISTEM Applications; LIA0007, 430-29005, 11.212.864, 11.216.994, MM59
$199.99
Info: Insulated Ground & Double Bearing
Specifications
| UNIT TYPE | Hyd. Motor |
| CURRENT TYPE | DC |
| VOLT | 12 |
| POWER | 1.600 kw |
| HP | 2.146 |
| AMPS | 230 |
| ROTATION DIRECTION | Clockwise |
| OD | 112.800 mm |
| OD | 4.441″ |
| SHAFT OD | 0.709″ |
| SHAFT OD | 18mm |
| LENGTH | 191 mm |
| LENGTH | 7.520″ |
| TERMINAL 2 SIZE | M8-1.25 |
| TERMINAL 3 SIZE | M8-1.25 |
| SHAFT | 8mm Wide Slot |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LIA0007 |
| J&N | 430-19000 |
| MAHLE | 11.212.864, 11.216.994, MM59 |
