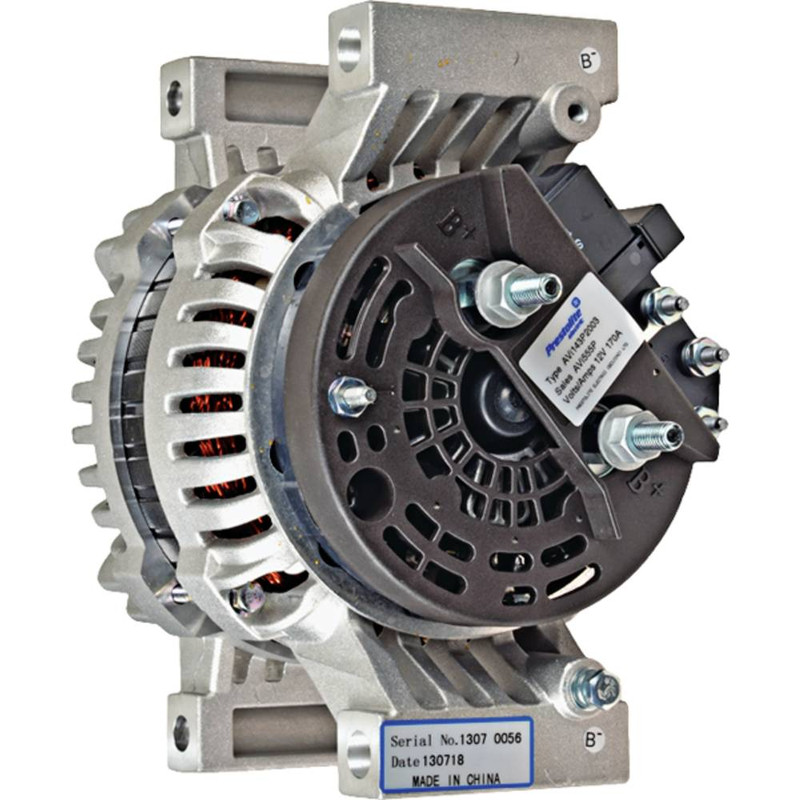

New LEECE NEVILLE Alternator for Heavy-Duty TRUCKS; LNP-AVI555P, 3579498C91, 3582185C91, 4C40-KA, 4C4O-10300-KA, 4C4O-10300-PA, 4C4O-PA, 4C4Z-10346-KA, 4C4Z-10346-KARM, 4C4Z-10346-PA; LESTER 8409, 8410, 8732
$339.99
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | Negative Ground Only |
| VOLT | 12 |
| AMPS | 170 |
| PAD SPAN LENGTH | 107.95 |
| MOUNT HOLE ID 1 | 10.500mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 12.500mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE ID 4 | 12.500mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 3.150″ |
| MOUNTING EAR THICKNESS | 80mm |
| MOUNTING EAR 2 THICKNESS | 3.150″ |
| MOUNTING EAR 2 THICKNESS | 80mm |
| MOUNTING EAR 3 THICKNESS | 3.150″ |
| MOUNTING EAR 3 THICKNESS | 80mm |
| MOUNTING EAR 4 THICKNESS | 3.150″ |
| MOUNTING EAR 4 THICKNESS | 80mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | M5x0.8 |
| POLARITY | Negative |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AMO0035, AMO0048, BAL9961LH, PL110-555PHO, PLAVI555P, PLLBH2180GH |
| BOSCH | AL9961LH |
| CASEIH | 3579498C91, 3582185C91 |
| DELCO | 10459320, 10459321, 10459340, 10459341, 19020387, 19020388, 19020900, 8600008, 8600043, 8600143, 8600227, 8600231, 8600405, 8600519, 8700013 |
| FORD | 4C40-KA, 4C4O-10300-KA, 4C4O-10300-PA, 4C4O-PA, 4C4Z-10346-KA, 4C4Z-10346-KARM, 4C4Z-10346-PA |
| J&N ELECTRICAL PRODUCTS | 400-16017, 400-16172 |
| LEECE NEVILLE | 110-444P, 110-555P, 110-555PHO, AVI143P2003, AVI555P |
| LESTER | 8409, 8410, 8732 |
| MOTOROLA | 8LHP2170V, 8LHP2170VE, 8LHP2170VF, 8LHP2170VH, 8LHP2172VAH |
| PRESTOLITE | 110-555P, 110-555PHO |
