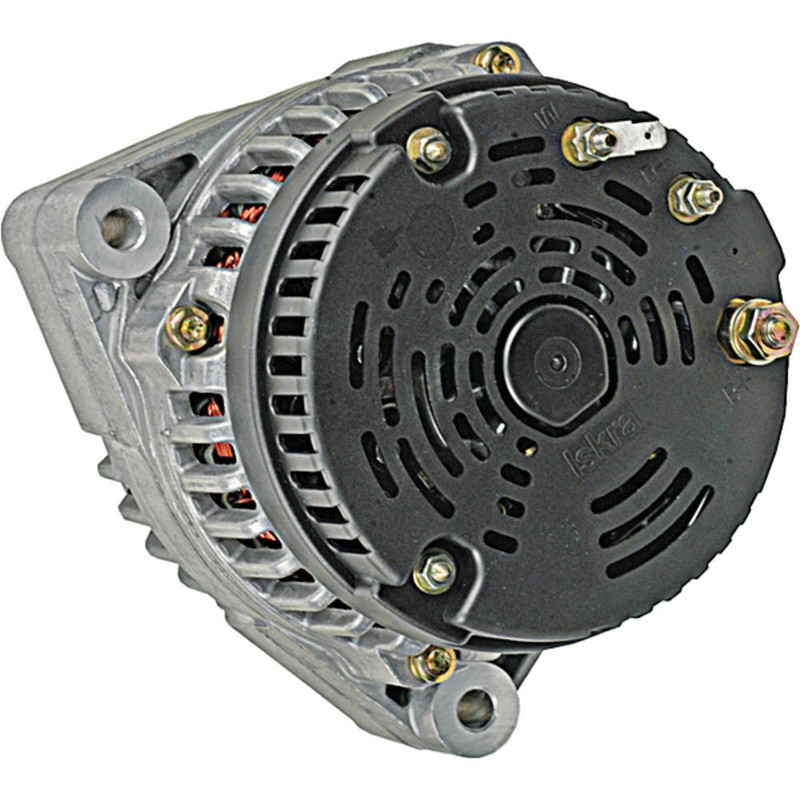

New MAHLE Alternator for ATLAS COPCO, DEUTZ & KHD Applications; MAH-MG473, 6082680, 6133202, 01181735, 01182043, 01183191, 01183604, 1181735, 1182043; LESTER 20065
$609.99
Specifications
| PART TYPE |
Alternator |
| FAMILY |
Letrika/MAHLE AAN |
| VOLT |
24 |
| AMPS |
80 |
| REGULATOR CLOCK |
3:30 |
| MOUNT HOLE ID 1 |
10.200mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
2.205″ |
| MOUNTING EAR THICKNESS |
56mm |
| MOUNTING EAR 2 THICKNESS |
2.205″ |
| MOUNTING EAR 2 THICKNESS |
56mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
D+ |
| TERMINAL 3 SIZE |
M5x0.8 |
| TERMINAL ID 4 |
W |
| TERMINAL 4 SIZE |
M5x0.8 |
| POLARITY |
Negative |
| SHAFT PULLEY OD |
0.669″ |
| SHAFT PULLEY OD |
17mm |
| SHAFT |
M16x1.50 |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
IA1031, MG473 |
| ATLAS COPCO |
6082680, 6133202 |
| DEUTZ |
01181735, 01182043, 01183191, 01183604, 1181735, 1182043 |
| KHD |
01182399, 1181735, 118-1735, 1182043, 118-2043, 118-3191 |
| LESTER |
20065 |
| LETRIKA/ISKRA |
11.201.795, 11.203.043, 11.203.064, 11.204.280, 11.204.409, AAN5106, AAN5116, AAN5121, AAN5836, AAN8189, IA 1031 |
| LUCAS ELECTRIC |
LRA03040 |
| MAHLE |
11.201.795, 11.203.043, 11.203.064, 11.204.280, 11.204.409, AAN5106, AAN5116, AAN5121, AAN5836, AAN8189, IA1031, MG473 |
