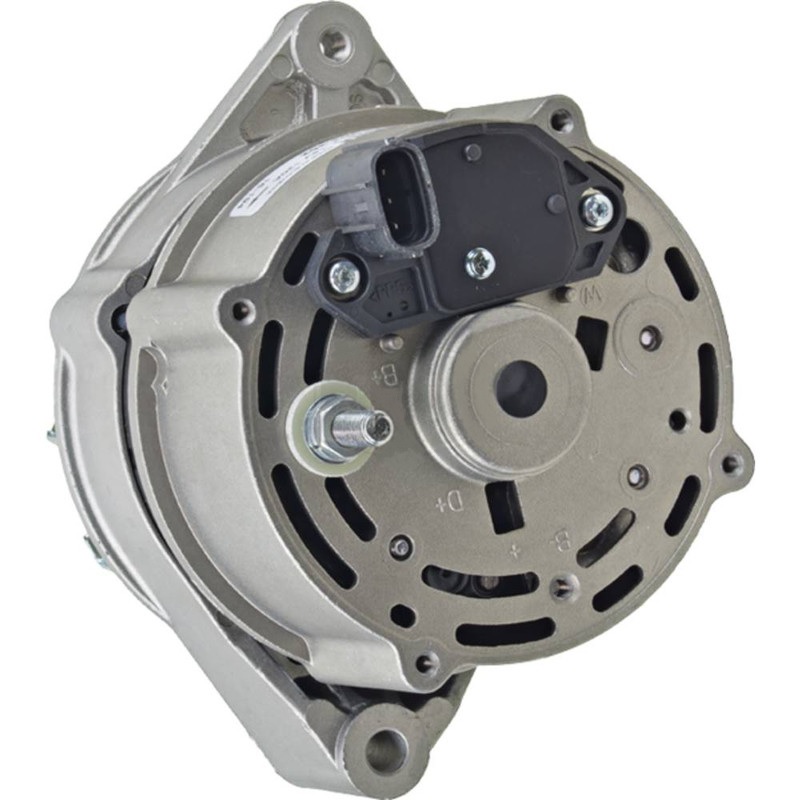

New MAHLE Alternator for CASEIH Various Applications; MAH-MG274, 84254289, 84416587, 87422777, 11.204.060, 11.204.319, 11.204.352; LESTER 12776
$489.99
Specifications
| PART TYPE |
Alternator |
| FAMILY |
Letrika/MAHLE AAK |
| VOLT |
12 |
| AMPS |
120 |
| REGULATOR CLOCK |
11:30 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
External |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| TERMINAL ID 3 |
P |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
IGN |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
L |
| TERMINAL 5 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
8 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.343″ |
| PULLEY OUTER DIAMETER |
59.500mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
IA1452, MG274 |
| CASEIH |
84254289, 84416587, 87422777 |
| DENSO |
021080-1600, 102211-9090 |
| FORD/NEW HOLLAND |
84254289, 87422777 |
| J&N ELECTRICAL PRODUCTS |
400-52220 |
| LESTER |
12776 |
| LETRIKA/ISKRA |
11.204.060, 11.204.352, AAK3828, AAK4813, IA 1452 |
| LUCAS ELECTRIC |
LRA03698 |
| MAHLE |
11.204.060, 11.204.319, 11.204.352, AAK3828, AAK4804, AAK4813, IA1452, MG274, MG691 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Case/International Harvester |
570MXT Series III |
390 Diesel |
|
| Case/International Harvester |
580M Series II |
|
|
| Case/International Harvester |
580M Series III |
445T/M |
|
| Case/International Harvester |
580SM Plus Series II |
|
|
| Case/International Harvester |
580SM Plus Series III |
445TA/E |
|
| Case/International Harvester |
580SM Series II |
|
|
| Case/International Harvester |
580SM Series III |
445TA/E |
|
| Case/International Harvester |
586G Series 3 |
|
|
| Case/International Harvester |
590SM Plus Series III |
445TA/E |
|
| Case/International Harvester |
590SM Series II |
|
|
| Case/International Harvester |
650L |
4500cc, 4.5L |
|
| Case/International Harvester |
750L |
4500cc, 4.5L |
|
| Case/International Harvester |
850L |
6700cc, 6.7L |
|
