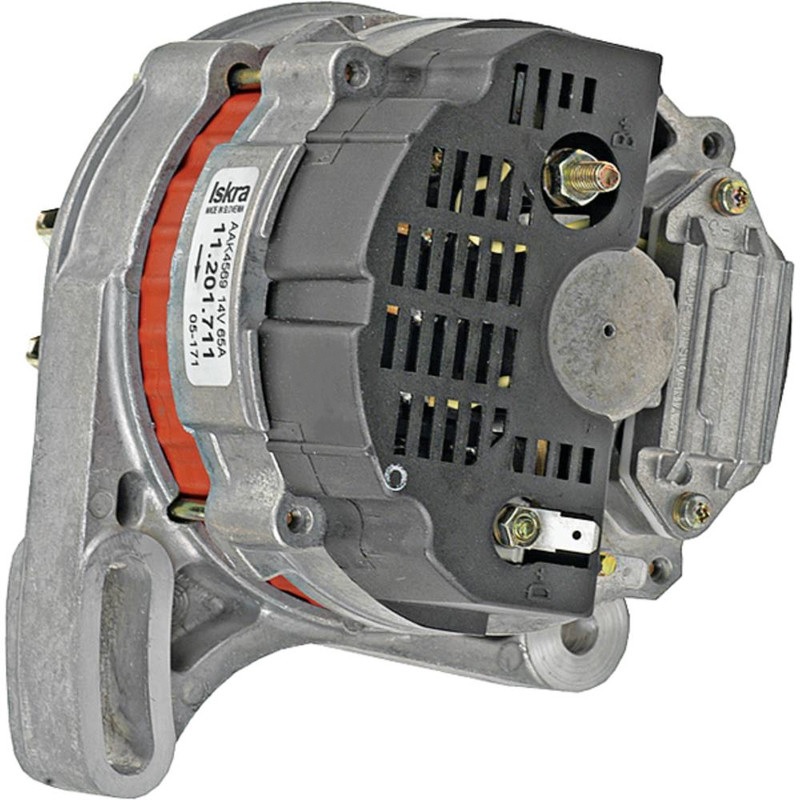

New MAHLE Alternator; MAH-MG21, 11.201.711, AAK4569, IA0711, MG21; LESTER 22579
$359.99
Specifications
| UNIT/PART TYPE |
Alternator |
| FAMILY |
Letrika/MAHLE AAK |
| VOLT |
12 |
| AMPS |
65 |
| REGULATOR CLOCK |
3:30 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE 1 TYPE |
Slotted |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
1.256″ |
| MOUNTING EAR THICKNESS |
31.900mm |
| MOUNTING EAR 2 THICKNESS |
1.256″ |
| MOUNTING EAR 2 THICKNESS |
31.900mm |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
D+ |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
W |
| TERMINAL 4 SIZE |
M5x0.8 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.673″ |
| PULLEY OUTER DIAMETER |
67.900mm |
|
With Optional “W” Terminal Spade |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AIA0027, IA0711, MG21 |
| J&N ELECTRICAL PRODUCTS4 |
400-29025 |
| KOHLER |
ED0011572700S |
| LESTER |
22579 |
| LETRIKA/ISKRA |
11.201.711, AAK4569, IA 0711 |
| LOMBARDINI |
11572700, 1157-270-0 |
| LUCAS ELECTRIC |
LRA01579 |
| MAHLE |
11.201.711, AAK4569, IA0711, MG21 |
| MARELLI |
63320111, 63321136, 63321190 |
| OTHER OEMS |
11572700 |
