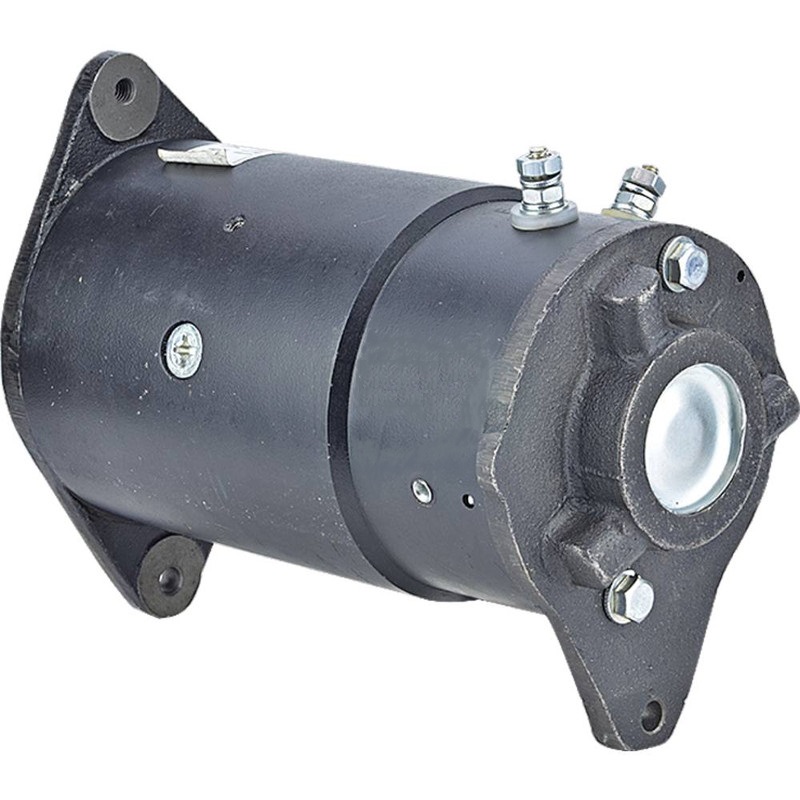

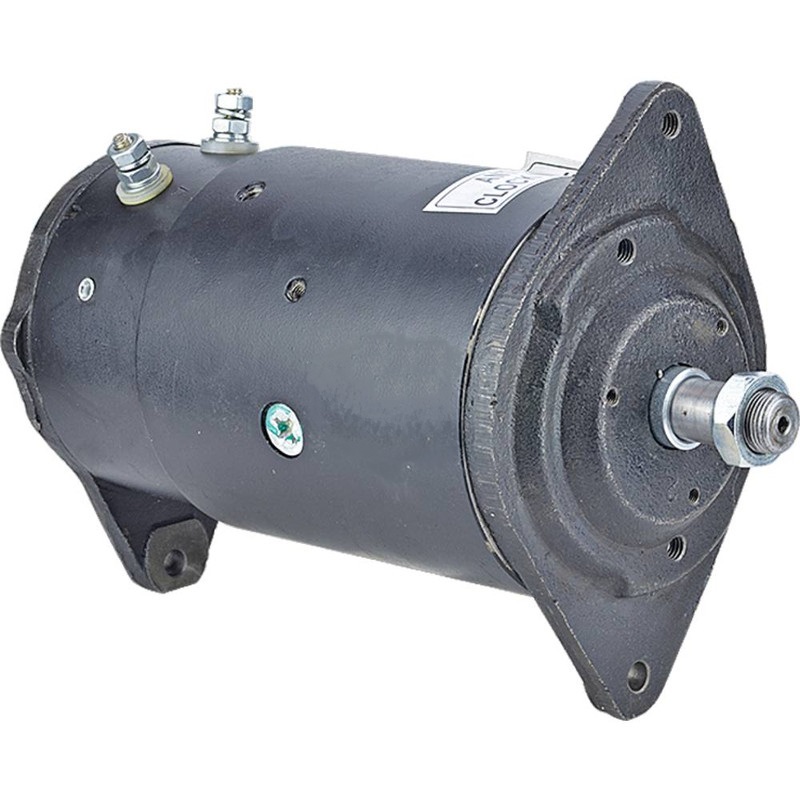

NEW Motor/Generator for CUB CADET & INTERNATIONAL Tractor – Garden; 420-12009, 1700-0603, 103809A2, 103809A2R, 1101691, 1101692, 1101951, 1101955, 1101967, 1101996, 1101997; LESTER 9188, 9190, 9191

Name: NEW Motor/Generator for CUB CADET &amp; INTERNATIONAL Tractor - Garden; 420-12009, 1700-0603, 103809A2, 103809A2R, 1101691, 1101692, 1101951, 1101955, 1101967, 1101996, 1101997; LESTER 9188, 9190, 9191
SKU: 11570
Availability: InStock

$292.24 $330.23

Add’l Info: 5 Terminals

Categories: Generator, Tractor

Specifications

UNIT TYPE	Starter Generator
CURRENT TYPE	DC
VOLT	12
AMPS	15
ROTATION DIRECTION	Reversible
OD	117.500 mm
OD	4.626″
SHAFT OD	0.665″
SHAFT OD	16.900mm
LENGTH	265.500 mm
LENGTH	10.453″
TERMINAL 2 SIZE	12-24
TERMINAL 3 SIZE	12-24
SHAFT	Threaded with Keyway
WARRANTY	1 Year

Applications

MAKE	MODEL	ENGINE	YEAR
Cub Cadet	100	10HP , Ga	1966
Cub Cadet	102	10HP , Ga	1968
Cub Cadet	104	10HP , Ga	1970
Cub Cadet	105	10HP , Ga	1970
Cub Cadet	106	10HP , Ga	1971
Cub Cadet	107	10HP , Ga	1971
Cub Cadet	108	10HP , Ga	1974
Cub Cadet	109	10HP K-241 , Ga	1974
Cub Cadet	122	12HP K-301 , Ga	1968
Cub Cadet	123	12HP K-301 , Ga	1967
Cub Cadet	124	12HP K-301 , Ga	1970
Cub Cadet	125	12HP K-301 , Ga	1970
Cub Cadet	126	12HP K-301 , Ga	1971
Cub Cadet	127	12HP K-301 , Ga	1971
Cub Cadet	128	12HP K-301 , Ga	1974
Cub Cadet	129	12HP K-301 , Ga	1974
Cub Cadet	147	14HP K-321A , Ga	1972
Cub Cadet	149	14HP K-321A , Ga	1974
Cub Cadet	169	16HP K-341 , Ga	1974
Cub Cadet	70	7HP K-161 , Ga	1966
Cub Cadet	71	7HP K-161 , Ga	1968
Cub Cadet	72	7HP K-161 , Ga	1969
Cub Cadet	73	7HP K-161 , Ga	1971
Cub Cadet	86	8HP K-181 , Ga	1974
International	Cub Cadet Model 100	K-24	1963, 1964, 1965, 1966
International	Cub Cadet Model 100	Kohler K-24	1963
International	Cub Cadet Model 100	Kohler K-24	1964
International	Cub Cadet Model 100	Kohler K-24	1965, 1966
International	Cub Cadet Model 102	K-24	1965, 1966, 1967, 1968
International	Cub Cadet Model 102	Kohler K-24	1965, 1966, 1967, 1968
International	Cub Cadet Model 104	K-24	1967, 1968, 1969, 1970
International	Cub Cadet Model 104	Kohler K-24	1967, 1968, 1969
International	Cub Cadet Model 104	Kohler K-24	1970
International	Cub Cadet Model 105	K-24	1967, 1968, 1969, 1970
International	Cub Cadet Model 105	Kohler K-24	1967, 1968, 1969
International	Cub Cadet Model 105	Kohler K-24	1970
International	Cub Cadet Model 106	K-241A	1969, 1970, 1971
International	Cub Cadet Model 106	Kohler K-241A	1969
International	Cub Cadet Model 106	Kohler K-241A	1970, 1971
International	Cub Cadet Model 107	K-241A	1969, 1970, 1971
International	Cub Cadet Model 107	Kohler K-241A	1969
International	Cub Cadet Model 107	Kohler K-241A	1970, 1971
International	Cub Cadet Model 108	K-241A	1971, 1972, 1973, 1974
International	Cub Cadet Model 108	Kohler K-241A	1971, 1972
International	Cub Cadet Model 108	Kohler K-241A	1973, 1974
International	Cub Cadet Model 109	K-30	1971, 1972, 1973, 1974, 1975, 1976
International	Cub Cadet Model 109	Kohler K-30	1971, 1972
International	Cub Cadet Model 109	Kohler K-30	1973, 1974
International	Cub Cadet Model 109	Kohler K-30	1973, 1974, 1975, 1976
International	Cub Cadet Model 122	K-30	1965, 1966, 1967, 1968
International	Cub Cadet Model 122	Kohler K-30	1965, 1966, 1967, 1968
International	Cub Cadet Model 123	K-30	1966, 1967
International	Cub Cadet Model 123	Kohler K-30	1966, 1967
International	Cub Cadet Model 124	K-30	1967, 1968, 1969, 1970
International	Cub Cadet Model 124	Kohler K-30	1967, 1968, 1969
International	Cub Cadet Model 124	Kohler K-30	1970
International	Cub Cadet Model 125	K-30	1967, 1968, 1969, 1970
International	Cub Cadet Model 125	Kohler K-30	1967, 1968, 1969
International	Cub Cadet Model 125	Kohler K-30	1970
International	Cub Cadet Model 126	K-301	1969, 1970, 1971
International	Cub Cadet Model 126	Kohler K-301	1969, 1970, 1971
International	Cub Cadet Model 127	K-301	1969, 1970, 1971
International	Cub Cadet Model 127	Kohler K-301	1969, 1970, 1971
International	Cub Cadet Model 128	K-30	1971, 1972, 1973, 1974
International	Cub Cadet Model 128	Kohler K-30	1971, 1972
International	Cub Cadet Model 128	Kohler K-30	1973, 1974
International	Cub Cadet Model 129	K-30	1971, 1972, 1973, 1974
International	Cub Cadet Model 129	Kohler K-30	1971, 1972
International	Cub Cadet Model 129	Kohler K-30	1973, 1974
International	Cub Cadet Model 147	K-321	1969, 1970, 1971, 1972
International	Cub Cadet Model 147	Kohler K-321	1969, 1970, 1971, 1972
International	Cub Cadet Model 149	K-321	1971, 1972, 1973, 1974
International	Cub Cadet Model 149	Kohler K-321	1971, 1972
International	Cub Cadet Model 149	Kohler K-321	1973, 1974
International	Cub Cadet Model 169	K-34	1971, 1972, 1973, 1974
International	Cub Cadet Model 169	Kohler K-34	1971, 1972
International	Cub Cadet Model 169	Kohler K-34	1973, 1974
International	Cub Cadet Model 70	K-16	1961, 1962, 1963, 1964, 1965, 1966
International	Cub Cadet Model 70	Kohler K-16	1961, 1962
International	Cub Cadet Model 70	Kohler K-16	1963
International	Cub Cadet Model 70	Kohler K-16	1964
International	Cub Cadet Model 70	Kohler K-16	1965, 1966
International	Cub Cadet Model 71	K-16	1965, 1966, 1967, 1968
International	Cub Cadet Model 71	Kohler K-16	1965, 1966, 1967, 1968
International	Cub Cadet Model 72	K-16	1967, 1968, 1969, 1970
International	Cub Cadet Model 72	Kohler K-16	1967, 1968, 1969
International	Cub Cadet Model 72	Kohler K-16	1970
International	Cub Cadet Model 73	K-16	1969, 1970, 1971
International	Cub Cadet Model 73	Kohler K-16	1969, 1970, 1971
International	Cub Cadet Model 86	K-18	1971, 1972, 1973, 1974
International	Cub Cadet Model 86	Kohler K-18	1971, 1972
International	Cub Cadet Model 86	Kohler K-18	1973, 1974

Manufacturer Name	Manufacturer Part #
ARROWHEAD	420-12002
ATLANTIC QUALITY PARTS	1700-0603
CASEIH	103809A2, 103809A2R
DELCO	1101691, 1101692, 1101951, 1101955, 1101967, 1101996, 1101997
J&N ELECTRICAL PRODUCTS	20-12002, 420-12002R
LESTER	9188, 9190, 9191
