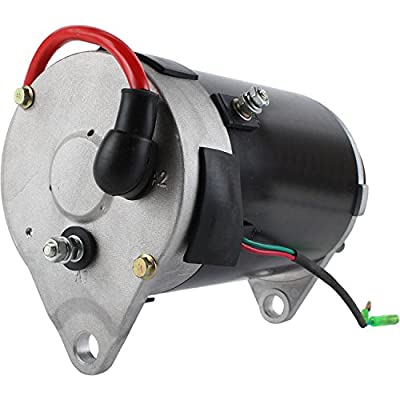

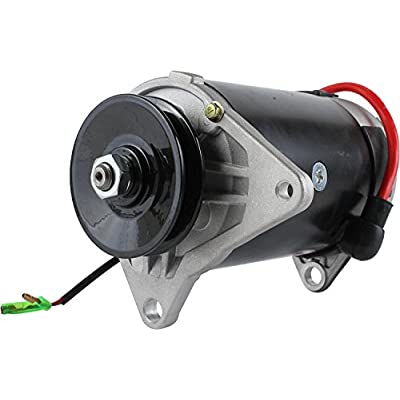

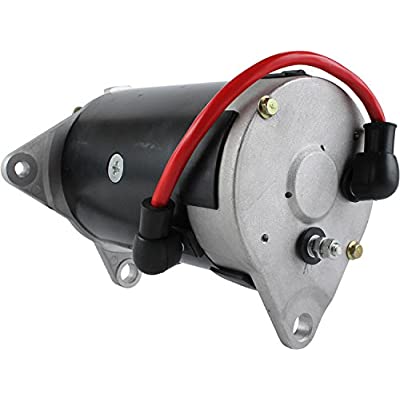

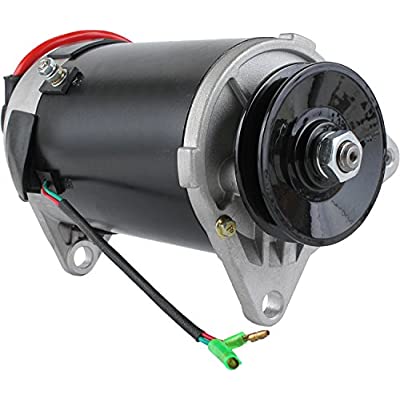

NEW Motor/Generator for YAMAHA G2, G8, & G9-14 Applications 1985-95 ; 420-44008,GSB107-06B, J38-81100-11-00, J38-81100-00, J38-81100-10, J38-81100-11, J38-81100-11-00; LESTER 15425
$219.99
Add’l Info: 5 Terminals
Specifications
| UNIT TYPE | Motor Generator |
| CURRENT TYPE | DC |
| VOLT | 12 |
| AMPS | 22 |
| ROTATION DIRECTION | Reversible |
| OD | 112.700 mm |
| OD | 4.437″ |
| SHAFT OD | 0.669″ |
| SHAFT OD | 17mm |
| LENGTH | 229.200 mm |
| LENGTH | 9.024″ |
| TERMINAL 2 SIZE | M6-1.0 |
| TERMINAL 3 SIZE | M6-1.0 |
| TERMINAL 4 SIZE | M6-1.0 |
| TERMINAL 5 SIZE | M6-1.0 |
| SHAFT | Threaded With Keyway |
| WARRANTY | 1 Year |
| 5 Terminals |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 420-44003, GHI0005 |
| HITACHI | GSB107-06B, J38-81100-11-00 |
| LESTER | 15425 |
| YAMAHA | J38-81100-00, J38-81100-10, J38-81100-11, J38-81100-11-00 |
