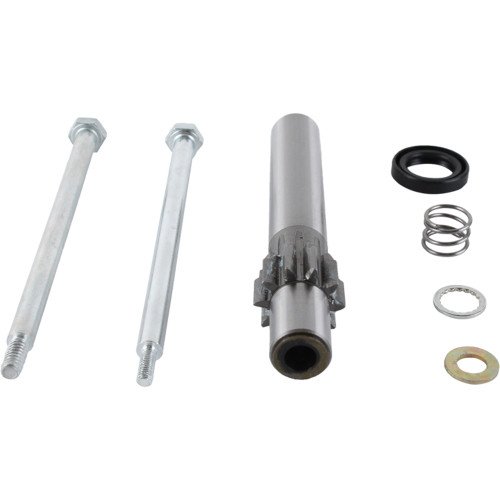

NEW Pinion Gear & Shaft for 1994-2006 Harley Davidson Big Twin Applications; 222-22022, 31612-09, 46-3047
$89.99
Specifications
| UNIT TYPE | Pinion Gear & Shaft |
| ROTATION DIRECTION | Clockwise |
| GEAR OD | 1.063″ |
| GEAR OD | 27mm |
| LENGTH | 139.400 mm |
| LENGTH | 5.488″ |
| NUMBER OF SPLINES | 18 |
| NUMBER OF TEETH | 10 |
| SPLINES TYPE | Straight |
| WET CLUTCH SEAL | FALSE |
| Jack Shaft Assembly, Supplied With 10-32 & 1/4-20 Jack Shaft Bolts |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | SHD5301 |
| J&N | 222-22022 |
| HARLEY-DAVIDSON | 31612-09 |
| TUCKER ROCKY | 46-3047 |
