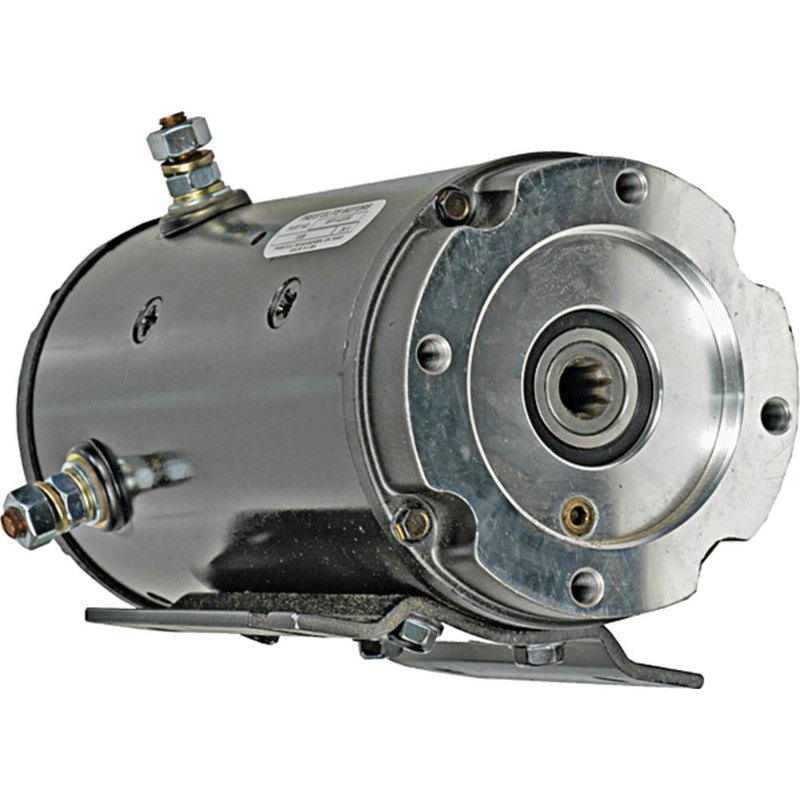

New PRESTOLITE Hydraulic Motor for CATERPILLAR Applications; PRL-MFY4203S, 117-3915, 396-2575, MFY4203S, 430-20052
$929.99 $1,050.89
Specifications
| UNIT TYPE | Hydraulic Motor |
| CURRENT TYPE | DC |
| VOLT | 24 |
| FIELD TYPE | Series |
| NUMBER OF FIELDS | 4 |
| HP | 7.094 |
| POWER | 5.290 kw |
| LENGTH | 10.315″ |
| LENGTH | 262 mm |
| OD | 127 mm |
| OD | 5″ |
| ROTATION DIRECTION | Clockwise |
| SHAFT | 9 Internal Spline |
| SHAFT OD | 0.984″ |
| SHAFT OD | 25mm |
| TERMINAL 2 SIZE | 3/8-16 |
| TERMINAL 3 SIZE | 3/8-16 |
| ADD’L INFO | Mounting Holes (4) 3/8-24, 107mm Bolt Circle |
